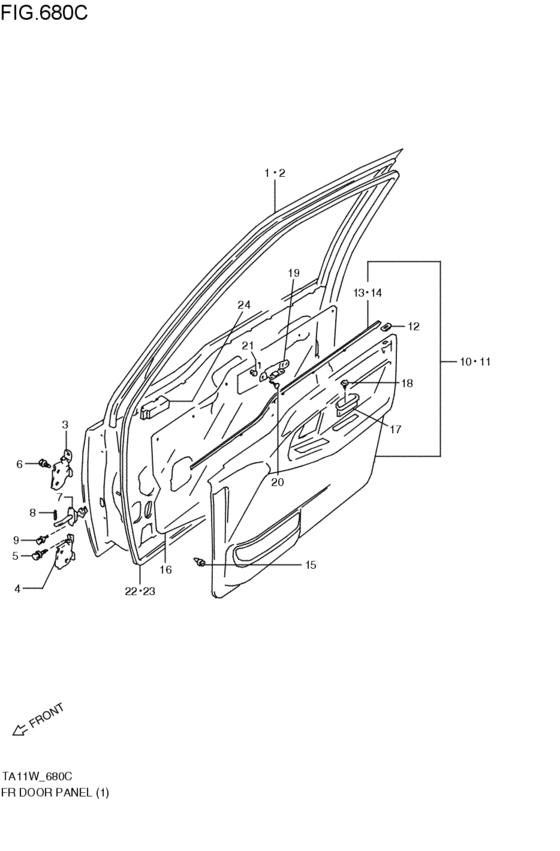

front door panel (2DR; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1995 - 1996
- Sales region
- Japan
- Engine
- H20A
- transmission
- 5MT
- Number of doors
- 2DR
- grade
- XD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-78E11-000
パネルアッシ,フロントドア,ライト
2DR; 1994-11-01~ |
68001-78E11-000 |
— | ||
| replacement | |||||
|
1
|
1
68001-78811-000 PANEL ASSY,FRONT DOOR,R2DR; 1994-11-01~ |
68001-78811-000 |
US $647.68 |
||
|
2
|
2
68002-78E11-000
パネルアッシ,フロントドア,レフト
2DR; 1994-11-01~ |
68002-78E11-000 |
— | ||
| replacement | |||||
|
2
|
2
68002-78811-000 PANEL ASSY,FRONT DOOR,L2DR; 1994-11-01~ |
68002-78811-000 |
US $777.92 |
||
|
3
|
3
69310-60A10-000 HINGE,FR DOOR,NO.1Upper RH / Lower LH UPPER RH; 2DR; 1994-11-01~ |
69310-60A10-000 |
from US $36.32 |
||
|
3
|
3
69340-60A11-000 HINGE,FR DOOR,NO.2Upper LH / Lower RH UPPER LH; 2DR; 1994-11-01~ |
69340-60A11-000 |
from US $43.56 |
||
|
4
|
4
69310-60A10-000 HINGE,FR DOOR,NO.1Upper RH / Lower LH LOWER LH; 2DR; 1994-11-01~ |
69310-60A10-000 |
from US $36.32 |
||
|
4
|
4
69340-60A11-000 HINGE,FR DOOR,NO.2Upper LH / Lower RH LOWER RH; 2DR; 1994-11-01~ |
69340-60A11-000 |
from US $43.56 |
||
|
5
|
5
01570-08203-000
Bolt
2DR; 1994-11-01~ |
01570-08203-000 |
— | ||
| replacements | |||||
|
5
|
5
01570-0820B-000 Bolt2DR; 1994-11-01~ |
01570-0820B-000 |
US $17.30 |
||
|
5
|
5
01570-0820A-000 BOLT2DR; 1994-11-01~ |
01570-0820A-000 |
from US $0.96 |
||
|
6
|
6
09118-08156-000 BOLT(8X25)2DR; 1994-11-01~ |
09118-08156-000 |
US $19.50 |
||
|
7
|
7
81810-56B01-000 STOP,FRONT DOOR OPEN2DR; 1994-11-01~ |
81810-56B01-000 |
US $32.02 |
||
|
8
|
8
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY2DR; 1994-11-01~ |
81831-70B00-000 |
US $1.60 |
||
|
9
|
9
01580-06163-000
Bolt
2DR; 1994-11-01~ |
01580-06163-000 |
— | ||
| replacement | |||||
|
9
|
9
01580-0616A-000 BOLT2DR; 1994-11-01~ |
01580-0616A-000 |
from US $0.96 |
||
|
10
|
10
83701-68A01-E8N
TRIM ASSY,FR DOOR,R
ブラック; 2DR; 1994-11-01~ |
83701-68A01-E8N |
— | ||
|
11
|
11
83702-68A01-E8N
トリムアッシ,フロントドア,レフト(ブラック)
ブラック; 2DR; 1994-11-01~ |
83702-68A01-E8N |
— | ||
|
12
|
12
83723-61A00-5ES
CAP,INSIDE LOCK KNOB
ブラック; 2DR; 1994-11-01~ |
83723-61A00-5ES |
— | ||
|
13
|
13
83721-61A00-000 WEATHERSTRIP,FR DR INR,R2DR; 1994-11-01~ |
83721-61A00-000 |
US $70.40 |
||
|
14
|
14
83741-61A00-000 WEATHERSTRIP,FR DR INR,L2DR; 1994-11-01~ |
83741-61A00-000 |
US $70.40 |
||
|
15
|
15
09409-08320-000 CLIP2DR; 1994-11-01~ |
09409-08320-000 |
from US $1.15 |
||
|
16
|
16
83911-60X50-000
カバー,ドアシーリング,600X1200
2DR; 1994-11-01~ |
83911-60X50-000 |
— | ||
| replacement | |||||
|
16
|
16
83911-60X52-000 COVER,DR SEALING2DR; 1994-11-01~ |
83911-60X52-000 |
US $6.06 |
||
|
17
|
17
84481-68A00-5ES
CASE,DR INS PULL HANDLE
ブラック; 2DR; 1994-11-01~ |
84481-68A00-5ES |
— | ||
|
18
|
18
03141-04123-000
Screw
2DR; 1994-11-01~ |
03141-04123-000 |
— | ||
| replacement | |||||
|
18
|
18
03142-0412B-000 SCREW2DR; 1994-11-01~ |
03142-0412B-000 |
from US $0.80 |
||
|
19
|
19
84482-68A00-000 BRACKET,DR INSIDE PULL HANDLE2DR; 1994-11-01~ |
84482-68A00-000 |
US $7.65 |
||
|
20
|
20
03241-06163-000
スクリュ
2DR; 1994-11-01~ |
03241-06163-000 |
— | ||
| replacement | |||||
|
20
|
20
03241-0616C-000 SCREW2DR; 1994-11-01~ |
03241-0616C-000 |
from US $0.76 |
||
|
21
|
21
09148-06007-000 NUT2DR; 1994-11-01~ |
09148-06007-000 |
from US $0.86 |
||
|
22
|
22
84641-65A01-000
ウェザストリップ,フロントドアオープニング,ライト
2DR; 1994-11-01~ |
84641-65A01-000 |
— | ||
| replacement | |||||
|
22
|
22
84641-65A02-000 WEATHERSTRIP,FR DR OPNG,R2DR; 1994-11-01~ |
84641-65A02-000 |
US $152 |
||
|
23
|
23
84651-65A01-000
ウェザストリップ,フロントドアオープニング,レフト
2DR; 1994-11-01~ |
84651-65A01-000 |
— | ||
| replacement | |||||
|
23
|
23
84651-65A02-000 WEATHERSTRIP,FR DR OPNG,L2DR; 1994-11-01~ |
84651-65A02-000 |
US $152 |
||
|
24
|
24
84755-77E00-000
PAD,FR DOOR SASH BRKT
2DR; 1994-11-01~ |
84755-77E00-000 |
— | ||
