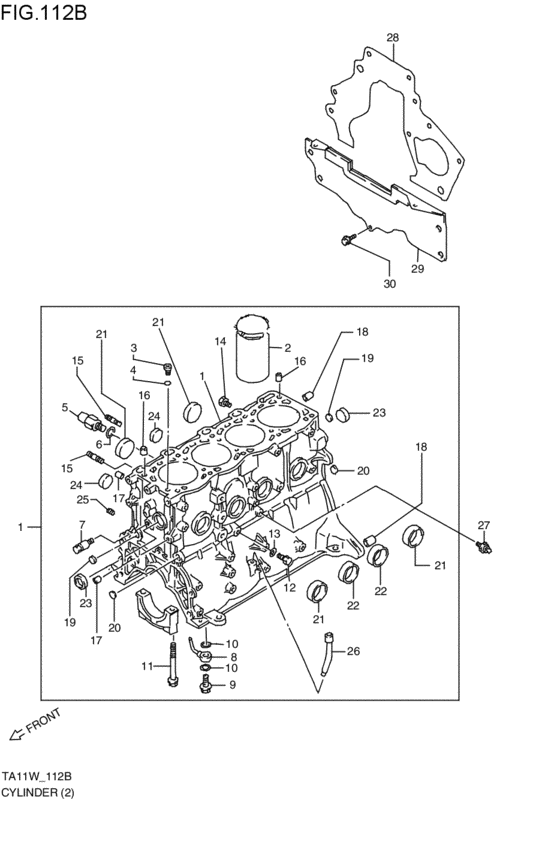

Cylinder (ディーゼルターボ; RF; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- RF
- transmission
- 4AT
- Number of doors
- 2DR
- grade
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11211-78E00-000
ブロック,シリンダ
E.NO.S104713マデ; RF; 1994-11-01~ |
11211-78E00-000 |
— | ||
|
1
|
1
11211-78E01-000
ブロック,シリンダ
E.NO.S104714ヨリ; RF; 1994-11-01~ |
11211-78E01-000 |
— | ||
|
2
|
2
11212-78E00-000
ライナ,シリンダ(イエロー)
イエロ-,-0.011[-0.022,E.NO.S104713マデ; RF; 1994-11-01~ |
11212-78E00-000 |
— | ||
|
2
|
2
11213-78E00-000
LINER,CYLINDER(WHITE)
ホワイト,0[-0.011,E.NO.S104713マデ; RF; 1994-11-01~ |
11213-78E00-000 |
— | ||
|
3
|
3
11221-78E00-000
PLUG,OIL CONTROL
RF; 1994-11-01~ |
11221-78E00-000 |
— | ||
|
4
|
4
11229-78E00-000
O-RING,OIL CONTROL PLUG
RF; 1994-11-01~ |
11229-78E00-000 |
— | ||
|
5
|
5
37820-78E00-000
Joint
RF; 1994-11-01~ |
37820-78E00-000 |
— | ||
|
6
|
6
11228-78E00-000
GASKET,DRAIN PLUG
RF; 1994-11-01~ |
11228-78E00-000 |
— | ||
|
7
|
7
11226-78E00-000
SET PIN,SPRING
RF; 1994-11-01~ |
11226-78E00-000 |
— | ||
|
8
|
8
18480-78E01-000
Jet,oil
RF; 1994-11-01~ |
18480-78E01-000 |
— | ||
|
9
|
9
18481-78E00-000
バルブ,オイルジェット
RF; 1994-11-01~ |
18481-78E00-000 |
— | ||
| replacement | |||||
|
9
|
9
18481-78E01-000
Valve,oil jet
RF; 1994-11-01~ |
18481-78E01-000 |
— | ||
|
10
|
10
18482-78E00-000
ガスケット,オイルジェット
E.NO.S103282マデ; RF; 1994-11-01~ |
18482-78E00-000 |
— | ||
|
11
|
11
11227-78E00-000
Bolt
RF; 1994-11-01~ |
11227-78E00-000 |
— | ||
|
12
|
12
M9100-10000-000
Bolt
RF; 1994-11-01~ |
M9100-10000-000 |
— | ||
|
13
|
13
M9168-10000-000 GASKETRF; 1994-11-01~ |
M9168-10000-000 |
US $1.99 |
||
|
14
|
14
11222-78E00-000
PLUG
RF; 1994-11-01~ |
11222-78E00-000 |
— | ||
|
15
|
15
11215-78E00-000
Stud bolt
RF; 1994-11-01~ |
11215-78E00-000 |
— | ||
|
16
|
16
11225-78E00-000
PIN
RF; 1994-11-01~ |
11225-78E00-000 |
— | ||
|
17
|
17
M4211-14080-000
PIN
RF; 1994-11-01~ |
M4211-14080-000 |
— | ||
|
18
|
18
M4211-19160-000
PIN
RF; 1994-11-01~ |
M4211-19160-000 |
— | ||
|
19
|
19
11223-78E00-000
PLUG,BLIND
RF; 1994-11-01~ |
11223-78E00-000 |
— | ||
|
20
|
20
11224-78E00-000
PLUG,BLIND
RF; 1994-11-01~ |
11224-78E00-000 |
— | ||
|
21
|
21
M9241-40000-000
PLUG
RF; 1994-11-01~ |
M9241-40000-000 |
— | ||
|
22
|
22
M9241-35000-000
PLUG
RF; 1994-11-01~ |
M9241-35000-000 |
— | ||
|
23
|
23
M9241-30000-000
PLUG
RF; 1994-11-01~ |
M9241-30000-000 |
— | ||
|
24
|
24
M9241-25000-000 PLUGRF; 1994-11-01~ |
M9241-25000-000 |
US $11.95 |
||
|
25
|
25
M9246-10001-000
PLUG
RF; 1994-11-01~ |
M9246-10001-000 |
— | ||
|
26
|
26
11214-78E00-000
PIPE,OIL LEVEL GAUGE
RF; 1994-11-01~ |
11214-78E00-000 |
— | ||
|
27
|
27
37820-77E90-000 SWITCH ASSY,OIL PRESSURERF; 1994-11-01~ |
37820-77E90-000 |
US $20.24 |
||
|
28
|
28
11311-78E00-000
プレート,エンド
RF; 1994-11-01~ |
11311-78E00-000 |
— | ||
|
29
|
29
11320-78E00-000
PLATE,CLUTCH HSG LOWER
RF; 1994-11-01~ |
11320-78E00-000 |
— | ||
|
30
|
30
01550-06123-000
Bolt
RF; 1994-11-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
30
|
30
01550-0612B-000 BOLTBolt, clamp RF; 1994-11-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
30
|
30
01550-0612A-000 BOLTRF; 1994-11-01~ |
01550-0612A-000 |
from US $0.76 |
||
