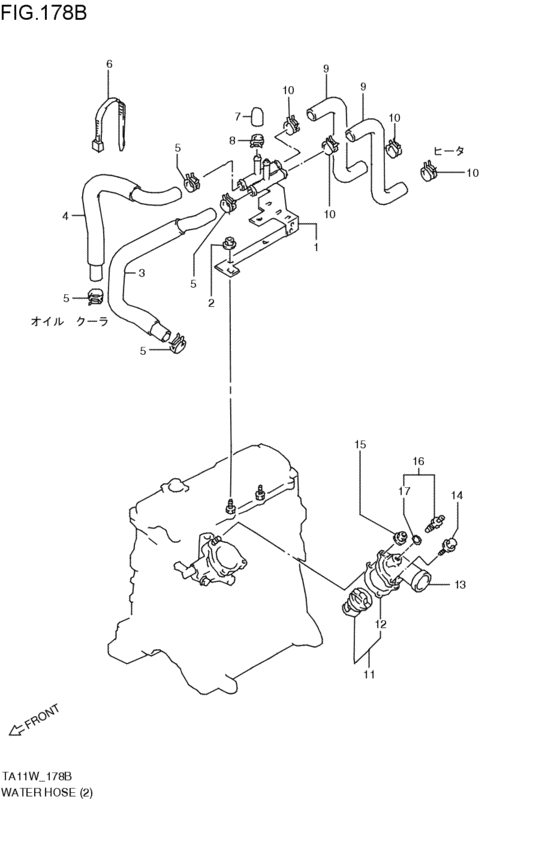

water hose (ディーゼルターボ; RF; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- RF
- transmission
- 4AT
- Number of doors
- 2DR
- grade
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17550-78E01-000
Bracket,water pipe
RF; 1994-11-01~ |
17550-78E01-000 |
— | ||
|
2
|
2
08316-10063-000
Nut
RF; 1994-11-01~ |
08316-10063-000 |
— | ||
| replacement | |||||
|
2
|
2
08316-1006B-000 NUTRF; 1994-11-01~ |
08316-1006B-000 |
from US $0.76 |
||
|
3
|
3
17873-78E01-000
Hose,water
RF; 1994-11-01~ |
17873-78E01-000 |
— | ||
|
4
|
4
17872-78E01-000
Hose,water
RF; 1994-11-01~ |
17872-78E01-000 |
— | ||
|
5
|
5
09401-21404-000
New Genuine Part
RF; 1994-11-01~ |
09401-21404-000 |
— | ||
| replacement | |||||
|
5
|
5
09401-21405-000 CLIPRF; 1994-11-01~ |
09401-21405-000 |
US $1.60 |
||
|
6
|
6
M9407-12000-000
CLAMP,L:200
RF; 1994-11-01~ |
M9407-12000-000 |
— | ||
|
7
|
7
17551-78E00-000
CAP,SEALING
RF; 1994-11-01~ |
17551-78E00-000 |
— | ||
|
8
|
8
17552-78E00-000 CLAMPRF; 1994-11-01~1995-12-01 |
17552-78E00-000 |
US $5 |
||
|
8
|
8
17552-78E01-000
Clamp
RF; 1996-02-01~ |
17552-78E01-000 |
— | ||
|
9
|
9
17871-78E00-000
Hose,heater
RF; 1994-11-01~ |
17871-78E00-000 |
— | ||
|
10
|
10
09401-21403-000
Clip (ca only)
RF; 1994-11-01~ |
09401-21403-000 |
— | ||
| replacement | |||||
|
10
|
10
09401-20405-000 CLIPClip, tank RF; 1994-11-01~ |
09401-20405-000 |
from US $5.56 |
||
|
11
|
11
17600-78E00-000
サーモスタット,ウォータ,88゜C
RF; 1994-11-01~ |
17600-78E00-000 |
— | ||
| replacements | |||||
|
11
|
11
17569-78E00-000 GASKET,THERMOSTAT COVERRF; 1994-11-01~ |
17569-78E00-000 |
US $7.40 |
||
|
11
|
11
17600-78E01-000 THERMOSTATRF; 1994-11-01~ |
17600-78E01-000 |
US $58.14 |
||
|
12
|
12
17569-78E00-000 GASKET,THERMOSTAT COVERRF; 1994-11-01~ |
17569-78E00-000 |
US $7.40 |
||
|
13
|
13
17561-78E00-000
COVER,THERMOSTAT
RF; 1994-11-01~ |
17561-78E00-000 |
— | ||
|
14
|
14
M9103-06200-000
BOLT,6X20
RF; 1994-11-01~ |
M9103-06200-000 |
— | ||
|
15
|
15
08316-10063-000
Nut
RF; 1994-11-01~ |
08316-10063-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1006B-000 NUTRF; 1994-11-01~ |
08316-1006B-000 |
from US $0.76 |
||
|
16
|
16
34850-78E21-000
GAUGE,WATER TEMP
RF; 1994-11-01~ |
34850-78E21-000 |
— | ||
|
17
|
17
34851-78E20-000
O-RING,WATER TEMP GAUGE
RF; 1994-11-01~ |
34851-78E20-000 |
— | ||
