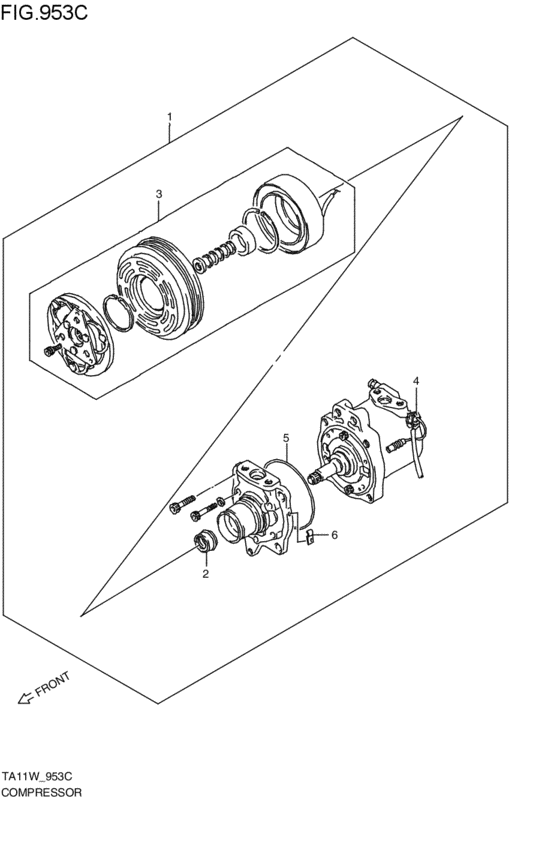

compressor (1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1994 - 1996
- Sales region
- Japan
- Engine
- RF
- transmission
- 4AT
- Number of doors
- 2DR
- grade
- X
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95200-70C10-000
コンプレッサ/マグネットクラッチ
RF; 1994-11-01~ |
95200-70C10-000 |
— | ||
| replacements | |||||
|
1
|
1
95200-70C20-000 COMPRESSOR ASSYRF; 1994-11-01~ |
95200-70C20-000 |
US $1,462 |
||
|
1
|
1
95533-70C00-000 HARNESS,COMPRESSOR JOINTRF; 1994-11-01~ |
95533-70C00-000 |
US $15.20 |
||
|
2
|
2
95261-70B00-000
Seal, lip
1994-11-01~ |
95261-70B00-000 |
— | ||
|
3
|
3
95210-70C10-000
MAGNET,CLUTCH
RF; 1994-11-01~ |
95210-70C10-000 |
— | ||
| replacement | |||||
|
3
|
3
95210-70C11-000
CLUTCH,MAGNET
RF; 1994-11-01~ |
95210-70C11-000 |
— | ||
|
4
|
4
95527-70CA0-000 SWITCH,THERMAL1994-11-01~ |
95527-70CA0-000 |
US $62.93 |
||
|
5
|
5
95262-70B00-000
O ring
1994-11-01~ |
95262-70B00-000 |
— | ||
|
6
|
6
95291-70B00-000 FIXING PLATE1994-11-01~ |
95291-70B00-000 |
US $5.52 |
||
