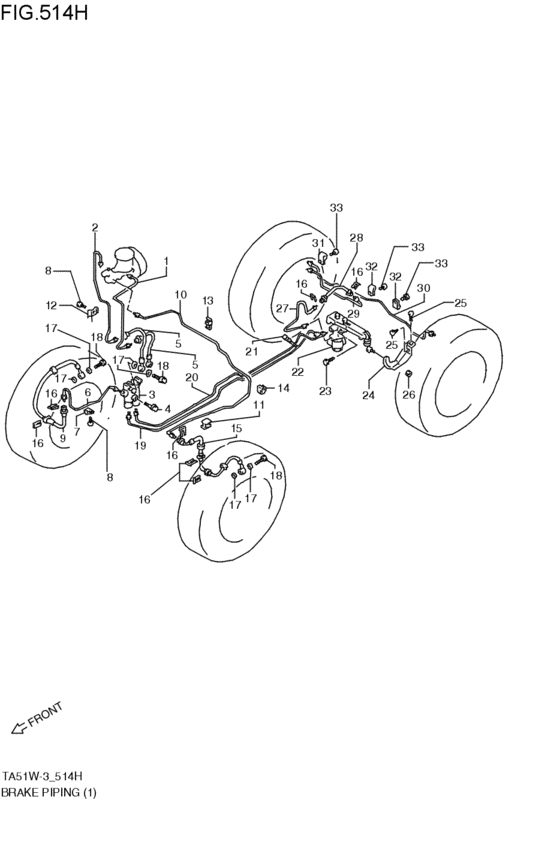

brakes piping (ABSミセッテイ; 3DR:ABS-N; 1996-10-01~1997-05-01) Diagram Suzuki ESCUDO
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- 4AT
- Number of doors
- 3DR
- grade
- STD
- air bag
- NAB
- abs
- ABS-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-77E10-000
パイプ,マスタプライマリツージョイント
3DR:ABS-N; 1996-10-01~1997-05-01 |
51410-77E10-000 |
— | ||
|
2
|
2
51520-77E10-000
パイプ,マスタセカンダリツージョイント
3DR:ABS-N; 1996-10-01~1997-05-01 |
51520-77E10-000 |
— | ||
|
3
|
3
51640-60A30-000 JOINT,5WAY BRAKE3DR:ABS-N; 1996-10-01~1997-05-01 |
51640-60A30-000 |
US $85.60 |
||
|
4
|
4
01550-06403-000
Bolt (green)
3DR:ABS-N; 1996-10-01~1997-05-01 |
01550-06403-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0640B-000 Bolt3DR:ABS-N; 1996-10-01~1997-05-01 |
01550-0640B-000 |
from US $0.96 |
||
|
4
|
4
01550-0640A-000 BoltBolt (l:40) 3DR:ABS-N; 1996-10-01~1997-05-01 |
01550-0640A-000 |
from US $3.83 |
||
|
5
|
5
51570-77E00-000 HOSE,MA CYL FLEXIBLE3DR:ABS-N; 1996-10-01~1997-05-01 |
51570-77E00-000 |
US $31.28 |
||
|
6
|
6
51420-77E10-000 PIPE,JOINT TO FR BK HOSE3DR:ABS-N; 1996-10-01~1997-05-01 |
51420-77E10-000 |
US $30.40 |
||
|
7
|
7
09403-06401-000 CLAMP3DR:ABS-N; 1996-10-01~1997-05-01 |
09403-06401-000 |
from US $2.08 |
||
|
8
|
8
01570-06123-000
Bolt
3DR:ABS-N; 1996-10-01~1997-05-01 |
01570-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
01570-0612B-000 BOLTBolt, upper 3DR:ABS-N; 1996-10-01~1997-05-01 |
01570-0612B-000 |
US $0.80 |
||
|
8
|
8
01570-0612A-000 BOLTBolt 3DR:ABS-N; 1996-10-01~1997-05-01 |
01570-0612A-000 |
from US $0.80 |
||
|
9
|
9
51540-60A31-000 HOSE,FR BRAKE FLEXIBLE,R3DR:ABS-N; 1996-10-01~1997-05-01 |
51540-60A31-000 |
US $29.65 |
||
|
10
|
10
51430-77E10-000
パイプ,マスタセカンダリツーフロントブレーキホース
3DR:ABS-N; 1996-10-01~1997-05-01 |
51430-77E10-000 |
— | ||
|
11
|
11
51435-60A00-000 CLAMP,BRAKE PIPE SIDE3DR:ABS-N; 1996-10-01~1997-05-01 |
51435-60A00-000 |
US $2.24 |
||
|
12
|
12
09403-07312-000 CLAMP3DR:ABS-N; 1996-10-01~1997-05-01 |
09403-07312-000 |
from US $0.92 |
||
|
13
|
13
51751-77E00-000 CLAMP,BRAKE PIPE3DR:ABS-N; 1996-10-01~1997-05-01 |
51751-77E00-000 |
US $2.24 |
||
|
14
|
14
51752-70B00-000 CLAMP,BK PIPE3DR:ABS-N; 1996-10-01~1997-05-01 |
51752-70B00-000 |
US $1.60 |
||
|
15
|
15
51550-60A31-000 HOSE,FR BRAKE FLEXIBLE,L3DR:ABS-N; 1996-10-01~1997-05-01 |
51550-60A31-000 |
US $110.03 |
||
|
16
|
16
09383-13001-000 E RING3DR:ABS-N; 1996-10-01~1997-05-01 |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
16
|
16
09383-13003-000 E-RING3DR:ABS-N; 1996-10-01~1997-05-01 |
09383-13003-000 |
from US $1.60 |
||
|
17
|
17
09161-10009-000 WASHER(10X15X1.5)Lock washer 3DR:ABS-N; 1996-10-01~1997-05-01 |
09161-10009-000 |
from US $1.06 |
||
|
18
|
18
09360-10026-000 Union bolt3DR:ABS-N; 1996-10-01~1997-05-01 |
09360-10026-000 |
from US $1.85 |
||
|
19
|
19
51340-78E00-000 PIPE,JOINT TO VALVE FRONT3DR:ABS-N; 1996-10-01~1997-05-01 |
51340-78E00-000 |
US $76.77 |
||
|
20
|
20
51460-78E00-000 PIPE,JOINT TO VALVE REAR3DR:ABS-N; 1996-10-01~1997-05-01 |
51460-78E00-000 |
US $76.77 |
||
|
21
|
21
51465-60A00-000 CLAMP,BRAKE PIPE FRAME3DR:ABS-N; 1996-10-01~1997-05-01 |
51465-60A00-000 |
US $2.29 |
||
|
22
|
22
51930-60A40-000 VALVE ASSY,L.S.P.3DR:ABS-N; 1996-10-01~1997-05-01 |
51930-60A40-000 |
US $472.72 |
||
|
23
|
23
01570-08403-000
Bolt
3DR:ABS-N; 1996-10-01~1997-05-01 |
01570-08403-000 |
— | ||
| replacement | |||||
|
23
|
23
01570-0840A-000 Bolt3DR:ABS-N; 1996-10-01~1997-05-01 |
01570-0840A-000 |
from US $3.42 |
||
|
24
|
24
51955-60A20-000 STAY,LSPV3DR:ABS-N; 1996-10-01~1997-05-01 |
51955-60A20-000 |
US $13.58 |
||
|
25
|
25
01550-08163-000
Bolt, holder
3DR:ABS-N; 1996-10-01~1997-05-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0816B-000 BOLT3DR:ABS-N; 1996-10-01~1997-05-01 |
01550-0816B-000 |
from US $0.91 |
||
|
25
|
25
01550-0816A-000 BOLTBolt, rear 3DR:ABS-N; 1996-10-01~1997-05-01 |
01550-0816A-000 |
from US $0.91 |
||
|
26
|
26
08316-10083-000
Nut
3DR:ABS-N; 1996-10-01~1997-05-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
26
|
26
08316-1008B-000 NUT3DR:ABS-N; 1996-10-01~1997-05-01 |
08316-1008B-000 |
from US $0.76 |
||
|
27
|
27
51350-77E00-000 PIPE,VALVE TO RR BK HOSE3DR:ABS-N; 1996-10-01~1997-05-01 |
51350-77E00-000 |
US $10.30 |
||
|
28
|
28
51560-83031-000 HOSE,RR BRAKE FLEXIBLE3DR:ABS-N; 1996-10-01~1997-05-01 |
51560-83031-000 |
US $17.60 |
||
|
29
|
29
51470-77E00-000 PIPE,RR BK HOSE TO R BK ASSY3DR:ABS-N; 1996-10-01~1997-05-01 |
51470-77E00-000 |
US $11.89 |
||
|
30
|
30
51480-77E00-000
PIPE,R BK ASSY TO L BK ASSY
3DR:ABS-N; 1996-10-01~1997-05-01 |
51480-77E00-000 |
— | ||
|
31
|
31
09403-06404-000 CLAMP3DR:ABS-N; 1996-10-01~1997-05-01 |
09403-06404-000 |
US $2.72 |
||
|
32
|
32
09403-06401-000 CLAMP3DR:ABS-N; 1996-10-01~1997-05-01 |
09403-06401-000 |
from US $2.08 |
||
|
33
|
33
09132-06006-000 SCREW(6X12)3DR:ABS-N; 1996-10-01~1997-05-01 |
09132-06006-000 |
US $1.60 |
||
