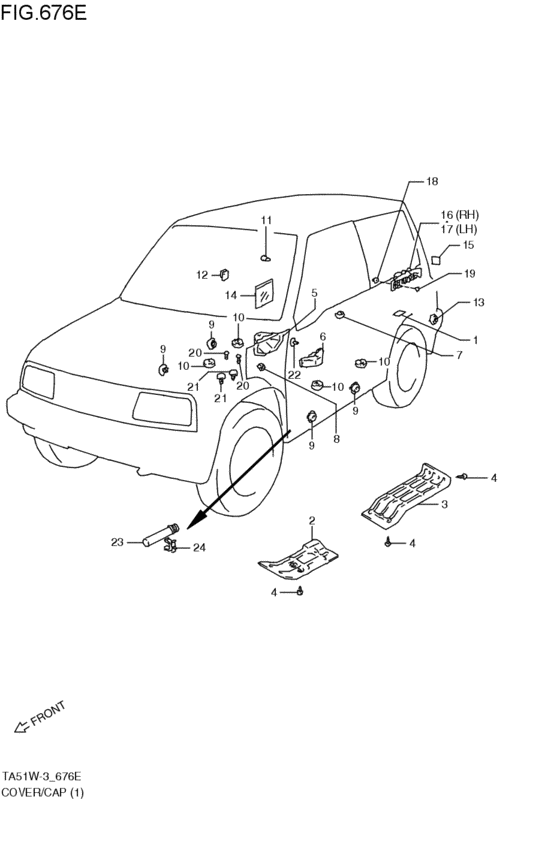

cover / cap (3DR; 1996-10-01~1997-08-01) Diagram Suzuki ESCUDO
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- 4AT
- Number of doors
- 3DR
- grade
- STD
- air bag
- NAB
- abs
- ABS-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 3DR; 1996-10-01~1997-08-01 |
84761-50X50-000 |
US $6.72 |
||
|
2
|
2
75511-60A10-000
Panel,heat protector,front
3DR; 1996-10-01~1997-08-01 |
75511-60A10-000 |
— | ||
| replacement | |||||
|
2
|
2
75511-60A20-000 PANEL,HEAT PROTECTOR FRONT3DR; 1996-10-01~1997-08-01 |
75511-60A20-000 |
US $13.76 |
||
|
3
|
3
75512-60A10-000 PANEL,HEAT PROTECTOR REAR3DR; 1996-10-01~1997-08-01 |
75512-60A10-000 |
US $27.23 |
||
|
4
|
4
03141-06123-000
Screw 6x12
3DR:J20A; 1996-10-01~1997-08-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
4
|
4
03141-0612A-000 SCREW3DR:J20A; 1996-10-01~1997-08-01 |
03141-0612A-000 |
US $0.76 |
||
|
5
|
5
75611-60A01-000
COVER,SEAT BRACKET,R
3DR; 1996-10-01~1997-08-01 |
75611-60A01-000 |
— | ||
|
6
|
6
75711-60A01-000 COVER,SEAT BRACKET,L3DR; 1996-10-01~1997-08-01 |
75711-60A01-000 |
US $15.97 |
||
|
7
|
7
09250-10016-000 CAP(OD:16.2)3DR; 1996-10-01~1997-08-01 |
09250-10016-000 |
US $9.90 |
||
|
8
|
8
09250-20002-000
キャップ,OD:30
3DR; 1996-10-01~1997-08-01 |
09250-20002-000 |
— | ||
| replacements | |||||
|
8
|
8
09250-20009-000
CAP(OD:30)
3DR; 1996-10-01~1997-08-01 |
09250-20009-000 |
— | ||
|
8
|
8
09250-20034-000 Cap(Od:30)3DR; 1996-10-01~1997-08-01 |
09250-20034-000 |
US $11.40 |
||
|
9
|
9
09250-25007-000 CAP(OD:25.0)3DR; 1996-10-01~1997-08-01 |
09250-25007-000 |
from US $0.97 |
||
|
10
|
10
09250-30010-000
Grommet
3DR; 1996-10-01~1997-08-01 |
09250-30010-000 |
— | ||
| replacement | |||||
|
10
|
10
72999-67H00-000 CAP,OD:403DR; 1996-10-01~1997-08-01 |
72999-67H00-000 |
from US $4.32 |
||
|
11
|
11
77131-60A10-000 CUSHION,FUEL LID3DR; 1996-10-01~1997-08-01 |
77131-60A10-000 |
US $2.94 |
||
|
12
|
12
77117-60B00-000 STOPPER,FUEL LID3DR; 1996-10-01~1997-08-01 |
77117-60B00-000 |
US $1.76 |
||
|
13
|
13
09250-16013-000 CAP(OD:25)3DR; 1996-10-01~1997-08-01 |
09250-16013-000 |
US $11.80 |
||
|
14
|
14
76481-61A00-000
FILM,RR QTR WATER PROOF
3DR; 1996-10-01~1997-08-01 |
76481-61A00-000 |
— | ||
|
15
|
15
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 3DR; 1996-10-01~1997-08-01 |
84761-50X50-000 |
US $6.72 |
||
|
16
|
16
77110-61A10-000 AIR OUTLET ASSY,SIDE,R3DR; 1996-10-01~1997-08-01 |
77110-61A10-000 |
US $49.41 |
||
|
17
|
17
77120-61A10-000 AIR OUTLET ASSY,SIDE,L3DR; 1996-10-01~1997-08-01 |
77120-61A10-000 |
US $49.41 |
||
|
18
|
18
09148-04021-000 NUT3DR; 1996-10-01~1997-08-01 |
09148-04021-000 |
from US $0.96 |
||
|
19
|
19
03122-04163-000
スクリュ
3DR; 1996-10-01~1997-08-01 |
03122-04163-000 |
— | ||
| replacement | |||||
|
19
|
19
03121-0416A-000 SCREW3DR; 1996-10-01~1997-08-01 |
03121-0416A-000 |
US $7.70 |
||
|
20
|
20
09250-05011-000
キャップ,OD:12
3DR; 1996-10-01~1997-08-01 |
09250-05011-000 |
— | ||
| replacement | |||||
|
20
|
20
09250-05011-5PK CAP(OD:12)Plug 3DR; 1996-10-01~1997-08-01 |
09250-05011-5PK |
from US $2.21 |
||
|
21
|
21
09250-08005-000 CAP(OD:20)3DR; 1996-10-01~1997-08-01 |
09250-08005-000 |
from US $3.86 |
||
|
22
|
22
09250-08005-000 CAP(OD:20)3DR; 1996-10-01~1997-08-01 |
09250-08005-000 |
from US $3.86 |
||
|
23
|
23
76470-70G01-000
シグナルアッシ,フレヤ(KARRIT)
3DR; 1996-10-01~1997-08-01 |
76470-70G01-000 |
— | ||
| replacement | |||||
|
23
|
23
76470-72M00-000
New Genuine Part
3DR; 1996-10-01~1997-08-01 |
76470-72M00-000 |
— | ||
|
24
|
24
76475-70G00-000
HOLDER,SIGNAL FLARE
3DR; 1996-10-01~1997-08-01 |
76475-70G00-000 |
— | ||
