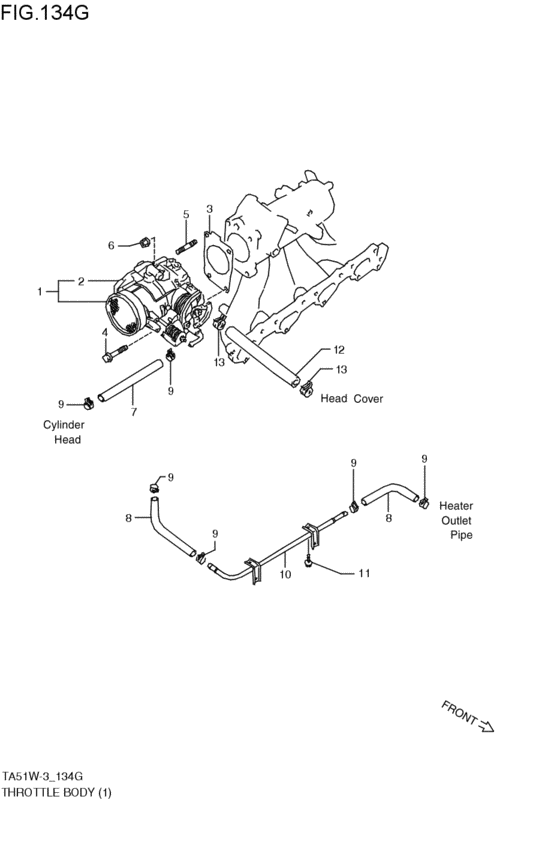

throttle body (J20A; 1996-10-01~1997-08-01) Diagram Suzuki ESCUDO
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- 4AT
- Number of doors
- 3DR
- grade
- STD
- air bag
- NAB
- abs
- ABS-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-77EA1-000
ボディアッシ,スロットル
J20A; 1996-10-01~1997-08-01 |
13400-77EA1-000 |
— | ||
| replacement | |||||
|
1
|
1
13400-77EV0-000 BODY ASSY,THROTTLEJ20A; 1996-10-01~1997-08-01 |
13400-77EV0-000 |
US $1,231.52 |
||
|
2
|
2
13420-77E00-000 SENSOR,THROTTLE POSITIONJ20A; 1996-10-01~1997-08-01 |
13420-77E00-000 |
US $279.68 |
||
|
3
|
3
13421-77E00-000 GASKET,THROTTLE BODYJ20A; 1996-10-01~1997-08-01 |
13421-77E00-000 |
from US $4.68 |
||
|
4
|
4
01550-08403-000
Bolt
J20A; 1996-10-01~1997-08-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0840B-000 BoltJ20A; 1996-10-01~1997-08-01 |
01550-0840B-000 |
from US $1.12 |
||
|
4
|
4
01550-0840A-000 BOLTJ20A; 1996-10-01~1997-08-01 |
01550-0840A-000 |
from US $1.12 |
||
|
5
|
5
01421-08353-000
Bolt, stud
J20A; 1996-10-01~1997-08-01 |
01421-08353-000 |
— | ||
| replacement | |||||
|
5
|
5
01421-0835A-000 BOLT,STUDStud bolt (8x35) J20A; 1996-10-01~1997-08-01 |
01421-0835A-000 |
from US $1.44 |
||
|
6
|
6
08316-10083-000
Nut
J20A; 1996-10-01~1997-08-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1008B-000 NUTJ20A; 1996-10-01~1997-08-01 |
08316-1008B-000 |
from US $0.76 |
||
|
7
|
7
09352-70131-600
HOSE(7X13X600)
L:600>140; J20A; 1996-10-01~1997-08-01 |
09352-70131-600 |
— | ||
|
8
|
8
09352-70131-600
HOSE(7X13X600)
L:600>160; J20A; 1996-10-01~1997-08-01 |
09352-70131-600 |
— | ||
|
9
|
9
09401-12404-000 CLIPClip J20A; 1996-10-01~1997-08-01 |
09401-12404-000 |
from US $1.52 |
||
|
10
|
10
13450-77EA1-000 PIPE,WATERJ20A; 1996-10-01~1997-08-01 |
13450-77EA1-000 |
US $52 |
||
|
11
|
11
01550-06123-000
Bolt
J20A; 1996-10-01~1997-08-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0612B-000 BOLTBolt, clamp J20A; 1996-10-01~1997-08-01 |
01550-0612B-000 |
from US $0.76 |
||
|
11
|
11
01550-0612A-000 BOLTJ20A; 1996-10-01~1997-08-01 |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
09355-13207-600 HOSE(13X20X600)Hose, breather L:600>190; J20A; 1996-10-01~1997-08-01 |
09355-13207-600 |
from US $11.63 |
||
|
13
|
13
09401-18404-000 CLIPJ20A; 1996-10-01~1997-08-01 |
09401-18404-000 |
from US $1.33 |
||
