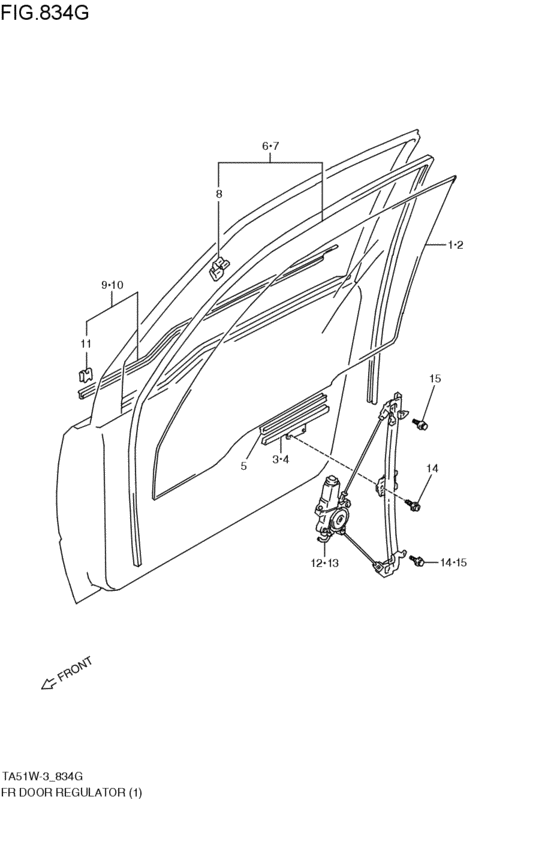

front door regulator (3DR; 1996-10-01~1997-08-01) Diagram Suzuki ESCUDO
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- 4AT
- Number of doors
- 3DR
- grade
- STD
- air bag
- 2AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84531-61A40-000
ガラス,フロントドアウィンド,ライト
ASAHI; 3DR; 1996-10-01~1997-08-01 |
84531-61A40-000 |
— | ||
|
2
|
2
84536-61A40-000
ガラス,フロントドアウィンド,レフト
ASAHI; 3DR; 1996-10-01~1997-08-01 |
84536-61A40-000 |
— | ||
|
3
|
3
83610-60A00-000 CHANNEL,FR GLASS BOTTOM,R3DR; 1996-10-01~1997-08-01 |
83610-60A00-000 |
from US $6.55 |
||
|
4
|
4
83620-60A00-000 CHANNEL,FR GLASS BOTTOM,L3DR; 1996-10-01~1997-08-01 |
83620-60A00-000 |
from US $7.54 |
||
|
5
|
5
83691-60A00-000 RUBBER,FR GLASS BOTTOM CHANNEL3DR; 1996-10-01~1997-08-01 |
83691-60A00-000 |
from US $2.56 |
||
|
6
|
6
83660-60A00-000 RUN,FR DOOR GLASS,R3DR; 1996-10-01~1997-08-01 |
83660-60A00-000 |
from US $84 |
||
|
7
|
7
83680-60A00-000 RUN,FR DOOR GLASS,L3DR; 1996-10-01~1997-08-01 |
83680-60A00-000 |
from US $92.80 |
||
|
8
|
8
83662-60A00-000 GUIDE,DR WINDOW GLASS3DR; 1996-10-01~1997-08-01 |
83662-60A00-000 |
from US $2.95 |
||
|
9
|
9
83810-65A00-000 WEATHERSTRIP,DR OUT,RH3DR; 1996-10-01~1997-08-01 |
83810-65A00-000 |
from US $110.40 |
||
|
10
|
10
83820-65A00-000 WEATHERSTRIP,DR OUT,LH3DR; 1996-10-01~1997-08-01 |
83820-65A00-000 |
from US $110.40 |
||
|
11
|
11
83812-60A00-000 CLIP3DR; 1996-10-01~1997-08-01 |
83812-60A00-000 |
from US $1.51 |
||
|
12
|
12
83401-62A00-000 REGULATOR ASSY,FR WINDOW,R3DR; 1996-10-01~1997-08-01 |
83401-62A00-000 |
from US $266.96 |
||
|
13
|
13
83402-62A00-000 REGULATOR ASSY,FR WINDOW,L3DR; 1996-10-01~1997-08-01 |
83402-62A00-000 |
from US $275.09 |
||
|
14
|
14
02112-76123-000
Screw
3DR; 1996-10-01~1997-08-01 |
02112-76123-000 |
— | ||
| replacement | |||||
|
14
|
14
02112-7612B-000 SCREW3DR; 1996-10-01~1997-08-01 |
02112-7612B-000 |
from US $1.12 |
||
|
15
|
15
02112-76123-000
Screw
3DR; 1996-10-01~1997-08-01 |
02112-76123-000 |
— | ||
| replacement | |||||
|
15
|
15
02112-7612B-000 SCREW3DR; 1996-10-01~1997-08-01 |
02112-7612B-000 |
from US $1.12 |
||
