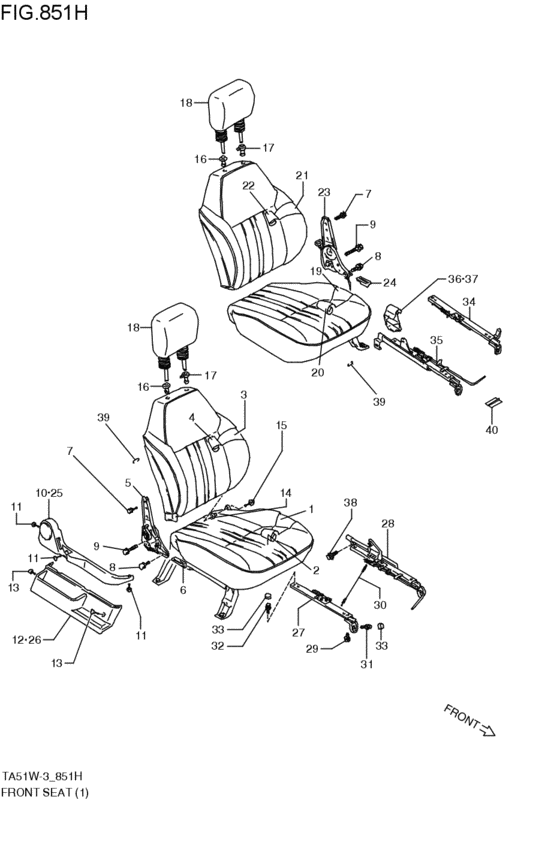

front seat (3DR; 1996-10-01~1997-05-01) Diagram Suzuki ESCUDO
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- 4AT
- Number of doors
- 3DR
- grade
- STD
- air bag
- 2AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85105-71E00-000 CUSHION SUB ASSY,FR SEAT,R3DR; 1996-10-01~1997-05-01 |
85105-71E00-000 |
US $364.32 |
||
|
2
|
2
85180-71E00-H4K
トリム,フロントシートクッション,ライト
ブル-/グレ-; 3DR; 1996-10-01~1997-05-01 |
85180-71E00-H4K |
— | ||
|
3
|
3
85305-60A12-000 BACK S/ASSY,FR SEAT,R3DR; 1996-10-01~1997-05-01 |
85305-60A12-000 |
US $312.80 |
||
|
4
|
4
85380-71E01-H4K
トリム,フロントシートバック
ブル-/グレ-; 3DR; 1996-10-01~1997-05-01 |
85380-71E01-H4K |
— | ||
|
5
|
5
85210-56B10-000
RECLINING ASSY,FR SEAT,R
3DR; 1996-10-01~1997-05-01 |
85210-56B10-000 |
— | ||
|
6
|
6
85211-60A10-T01
KNOB,RECLINING FR,R
グレ-; 3DR; 1996-10-01~1997-05-01 |
85211-60A10-T01 |
— | ||
|
7
|
7
01570-08163-000
Bolt
3DR; 1996-10-01~1997-05-01 |
01570-08163-000 |
— | ||
| replacement | |||||
|
7
|
7
01570-0816A-000 Bolt3DR; 1996-10-01~1997-05-01 |
01570-0816A-000 |
from US $1.12 |
||
|
8
|
8
01570-10253-000
ボルト
3DR; 1996-10-01~1997-05-01 |
01570-10253-000 |
— | ||
| replacement | |||||
|
8
|
8
01570-1025A-000 Bolt3DR; 1996-10-01~1997-05-01 |
01570-1025A-000 |
US $1.12 |
||
|
9
|
9
01570-10403-000
Bolt, upper
3DR; 1996-10-01~1997-05-01 |
01570-10403-000 |
— | ||
| replacement | |||||
|
9
|
9
01570-1040A-000 Bolt3DR; 1996-10-01~1997-05-01 |
01570-1040A-000 |
US $1.06 |
||
|
10
|
10
85221-60A10-T01 COVER,RECLINING,Rグレ-; 3DR; 1996-10-01~1997-05-01 |
85221-60A10-T01 |
US $18.22 |
||
|
11
|
11
03242-05163-000
Screw
3DR; 1996-10-01~1997-05-01 |
03242-05163-000 |
— | ||
| replacement | |||||
|
11
|
11
03241-0516A-000 SCREW3DR; 1996-10-01~1997-05-01 |
03241-0516A-000 |
from US $0.76 |
||
|
12
|
12
85222-60A10-T01
COVER,FR SEAT SIDE,R
グレ-; 3DR; 1996-10-01~1997-05-01 |
85222-60A10-T01 |
— | ||
|
13
|
13
03242-05163-000
Screw
3DR; 1996-10-01~1997-05-01 |
03242-05163-000 |
— | ||
| replacement | |||||
|
13
|
13
03241-0516A-000 SCREW3DR; 1996-10-01~1997-05-01 |
03241-0516A-000 |
from US $0.76 |
||
|
14
|
14
85291-80290-000 BUSH,SEAT BACK FIXING3DR; 1996-10-01~1997-05-01 |
85291-80290-000 |
from US $0.41 |
||
|
15
|
15
09136-06004-000 SCREW(6X12)3DR; 1996-10-01~1997-05-01 |
09136-06004-000 |
from US $0.56 |
||
|
16
|
16
85391-60A10-5PK GUIDE,HEADRESTRAINT,Rブラック; 3DR; 1996-10-01~1997-05-01 |
85391-60A10-5PK |
US $9.31 |
||
|
17
|
17
85890-60A10-5PK GUIDE,HEADRESTRAINT,Lブラック; 3DR; 1996-10-01~1997-05-01 |
85890-60A10-5PK |
US $13.87 |
||
|
18
|
18
86401-69A80-T23
ヘッドレストレイントアッシ(ブルー)
ブル-; 3DR; 1996-10-01~1997-05-01 |
86401-69A80-T23 |
— | ||
|
19
|
19
85106-71E00-000 CUSHION SUB ASSY,FR SEAT,L3DR; 1996-10-01~1997-05-01 |
85106-71E00-000 |
US $364.32 |
||
|
20
|
20
85680-71E00-H4K
トリム,フロントシートクッション,レフト
ブル-/グレ-; 3DR; 1996-10-01~1997-05-01 |
85680-71E00-H4K |
— | ||
|
21
|
21
85306-60A12-000 BACK S/ASSY,FR SEAT,L3DR; 1996-10-01~1997-05-01 |
85306-60A12-000 |
US $312.80 |
||
|
22
|
22
85380-71E11-H4K
トリム,フロントシートバック
ブル-/グレ-; 3DR; 1996-10-01~1997-05-01 |
85380-71E11-H4K |
— | ||
|
23
|
23
85710-61A10-000
RECLINING ASSY,FR SEAT,L
3DR; 1996-10-01~1997-05-01 |
85710-61A10-000 |
— | ||
|
24
|
24
85711-60A10-T01 KNOB,RECLINING FR,Lグレ-; 3DR; 1996-10-01~1997-05-01 |
85711-60A10-T01 |
US $4.67 |
||
|
25
|
25
85721-60A10-T01 COVER,RECLINING,Lグレ-; 3DR; 1996-10-01~1997-05-01 |
85721-60A10-T01 |
US $18.22 |
||
|
26
|
26
85722-60A10-T01
COVER,FR SEAT SIDE,L
グレ-; 3DR; 1996-10-01~1997-05-01 |
85722-60A10-T01 |
— | ||
|
27
|
27
86830-56B10-000 ADJUSTER,FR SEAT SLIDE3DR; 1996-10-01~1997-05-01 |
86830-56B10-000 |
US $116.29 |
||
|
28
|
28
86610-70E00-000
ADJUSTER,FR SEAT SLIDE INNER,R
3DR; 1996-10-01~1997-05-01 |
86610-70E00-000 |
— | ||
|
29
|
29
86724-60A00-000
BOLT,FR SEAT
3DR; 1996-10-01~1997-05-01 |
86724-60A00-000 |
— | ||
|
30
|
30
86731-60A00-000 WIRE,FR SEAT SLIDE ADJUSTERNHK; 3DR; 1996-10-01~1997-05-01 |
86731-60A00-000 |
from US $3.47 |
||
|
31
|
31
09118-08084-000 BOLT(8X20)3DR; 1996-10-01~1997-05-01 |
09118-08084-000 |
US $21 |
||
|
32
|
32
86726-60A01-000
BOLT,FR SEAT RAIL RR
3DR; 1996-10-01~1997-05-01 |
86726-60A01-000 |
— | ||
|
33
|
33
38315-60B10-000
Cap
3DR; 1996-10-01~1997-05-01 |
38315-60B10-000 |
— | ||
| replacement | |||||
|
33
|
33
38315-60B11-000 CAP,WIPER PIVOT3DR; 1996-10-01~1997-05-01 |
38315-60B11-000 |
from US $1.60 |
||
|
34
|
34
86630-56B10-000 ADJUSTER,FR SEAT SLIDE INNER,R3DR; 1996-10-01~1997-05-01 |
86630-56B10-000 |
US $116.29 |
||
|
35
|
35
86810-70E10-000
ADJUSTER,FR SEAT SLIDE INNER,L
3DR; 1996-10-01~1997-05-01 |
86810-70E10-000 |
— | ||
|
36
|
36
86735-70E00-T01
COVER,SLIDE ADJUSTER ANCHOR,R
グレ-; 3DR; 1996-10-01~1997-05-01 |
86735-70E00-T01 |
— | ||
|
37
|
37
86736-70E00-T01 COVER,SLIDE ADJUSTER ANCHOR,Lグレ-; 3DR; 1996-10-01~1997-05-01 |
86736-70E00-T01 |
US $2.40 |
||
|
38
|
38
09103-10280-000 BOLT(10X25)3DR; 1996-10-01~1997-05-01 |
09103-10280-000 |
US $28.70 |
||
|
39
|
39
09387-19001-000 RING3DR; 1996-10-01~1997-05-01 |
09387-19001-000 |
from US $0.77 |
||
|
40
|
40
85198-70E00-000 TIE3DR; 1996-10-01~1997-05-01 |
85198-70E00-000 |
US $3.02 |
||
