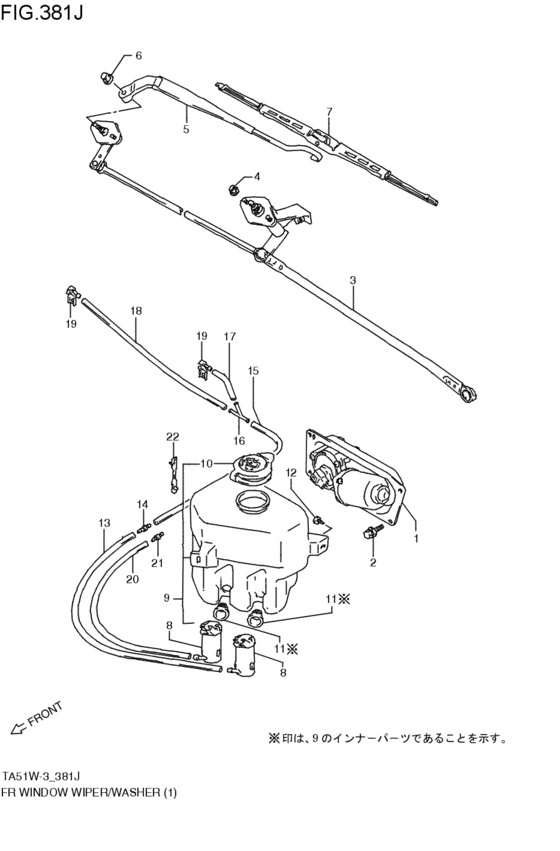

front wind windshield wiper / washer (3DR; 1996-10-01~1997-05-01) Diagram Suzuki ESCUDO
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- 4AT
- Number of doors
- 3DR
- grade
- STD
- air bag
- 2AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38101-60A20-000
MOTOR&BRACKET ASSY,WIPER
3DR; 1996-10-01~1997-05-01 |
38101-60A20-000 |
— | ||
|
2
|
2
09115-06001-000 Bolt, lhBolt (6x16) 3DR; 1996-10-01~1997-05-01 |
09115-06001-000 |
US $0.86 |
||
| replacement | |||||
|
2
|
2
09115-06005-000 BOLT(6X16)3DR; 1996-10-01~1997-05-01 |
09115-06005-000 |
from US $0.86 |
||
|
3
|
3
38102-60A20-000
LINK ASSY,WIPER
3DR; 1996-10-01~1997-05-01 |
38102-60A20-000 |
— | ||
|
4
|
4
08316-10063-000
Nut
3DR; 1996-10-01~1997-05-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1006B-000 NUT3DR; 1996-10-01~1997-05-01 |
08316-1006B-000 |
from US $0.76 |
||
|
5
|
5
38310-56B20-000 ARM ASSY,WIPER3DR; 1996-10-01~1997-05-01 |
38310-56B20-000 |
US $58.14 |
||
|
6
|
6
08313-20083-000
Nut
3DR; 1996-10-01~1997-05-01 |
08313-20083-000 |
— | ||
| replacements | |||||
|
6
|
6
08313-2008B-000 NUT3DR; 1996-10-01~1997-05-01 |
08313-2008B-000 |
from US $3.94 |
||
|
6
|
6
08313-2008A-000 NUT3DR; 1996-10-01~1997-05-01 |
08313-2008A-000 |
from US $0.91 |
||
|
7
|
7
38340-50F00-000 BLADE ASSY,WIPER,R3DR; 1996-10-01~1997-05-01 |
38340-50F00-000 |
from US $28.34 |
||
|
8
|
8
38410-66113-000 PUMP ASSY,WASHERPump assy, washer 3DR; 1996-10-01~1997-05-01 |
38410-66113-000 |
from US $59.20 |
||
|
9
|
9
38450-77E00-000
TANK ASSY,WASHER
3DR; 1996-10-01~1997-05-01 |
38450-77E00-000 |
— | ||
|
10
|
10
38452-77E00-000 CAP,WASHER TANK3DR; 1996-10-01~1997-05-01 |
38452-77E00-000 |
from US $2.88 |
||
|
11
|
11
38453-75000-000 GROMMET3DR; 1996-10-01~1997-05-01 |
38453-75000-000 |
from US $1.60 |
||
|
12
|
12
09115-06001-000 Bolt, lhBolt (6x16) 3DR; 1996-10-01~1997-05-01 |
09115-06001-000 |
US $0.86 |
||
| replacement | |||||
|
12
|
12
09115-06005-000 BOLT(6X16)3DR; 1996-10-01~1997-05-01 |
09115-06005-000 |
from US $0.86 |
||
|
13
|
13
38491-61A10-000 HOSE,WASHER L:2100L:2100>640; 3DR; 1996-10-01~1997-05-01 |
38491-61A10-000 |
from US $6.08 |
||
|
14
|
14
38496-61A00-000 VALVE,CHECK3DR; 1996-10-01~1997-05-01 |
38496-61A00-000 |
from US $2.08 |
||
|
15
|
15
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:1300>800; 3DR; 1996-10-01~1997-05-01 |
38491-61A00-000 |
from US $3.60 |
||
|
16
|
16
38496-71311-000 CONNECTOR,THREE WAY3DR; 1996-10-01~1997-05-01 |
38496-71311-000 |
from US $2.03 |
||
|
17
|
17
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:1300>70; 3DR; 1996-10-01~1997-05-01 |
38491-61A00-000 |
from US $3.60 |
||
|
18
|
18
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:1300>650; 3DR; 1996-10-01~1997-05-01 |
38491-61A00-000 |
from US $3.60 |
||
|
19
|
19
38480-77E00-000 NOZZLE,WASHER3DR; 1996-10-01~1997-05-01 |
38480-77E00-000 |
from US $4.01 |
||
|
20
|
20
38491-61A10-000 HOSE,WASHER L:2100L:2100>580; 3DR; 1996-10-01~1997-05-01 |
38491-61A10-000 |
from US $6.08 |
||
|
21
|
21
38496-56B00-000 CONNECTOR3DR; 1996-10-01~1997-05-01 |
38496-56B00-000 |
from US $1.60 |
||
|
22
|
22
09407-05403-000 CLAMP,L:883DR; 1996-10-01~1997-05-01 |
09407-05403-000 |
from US $0.91 |
||
