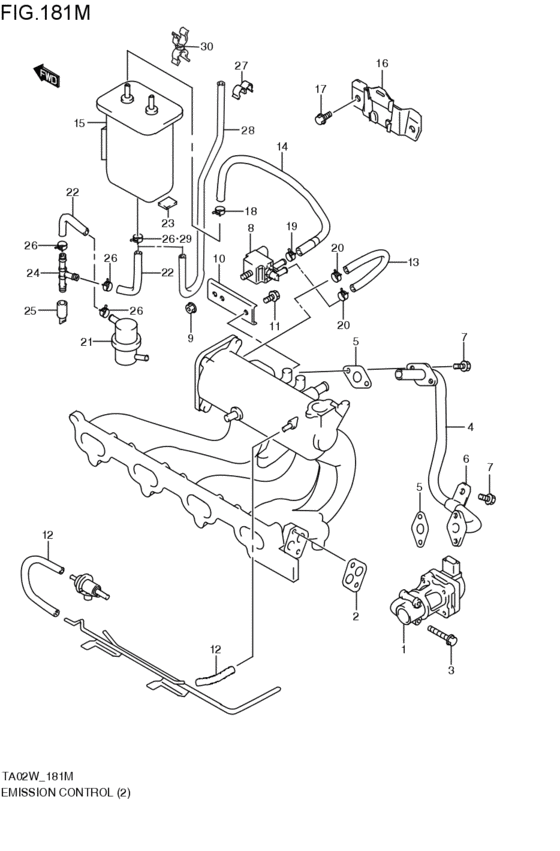

emission control (J20A; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- Number of doors
- 3DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18111-77E00-000
Valve, egr
J20A; 1997-11-01~2000-03-01 |
18111-77E00-000 |
— | ||
| replacement | |||||
|
1
|
1
18111-77E02-000 VALVE,EGRJ20A; 1997-11-01~2000-03-01 |
18111-77E02-000 |
from US $282.71 |
||
|
2
|
2
18529-77E00-000
Gasket, egr valve
J20A; 1997-11-01~2000-03-01 |
18529-77E00-000 |
— | ||
| replacement | |||||
|
2
|
2
18529-77E01-000 GASKET,EGR VALVEJ20A; 1997-11-01~2000-03-01 |
18529-77E01-000 |
from US $2.39 |
||
|
3
|
3
01550-08503-000
Bolt
J20A; 1997-11-01~2000-03-01 |
01550-08503-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0850B-000 BoltJ20A; 1997-11-01~2000-03-01 |
01550-0850B-000 |
from US $1.22 |
||
|
4
|
4
18530-65D00-000 PIPE,EGRJ20A; 1997-11-01~2000-03-01 |
18530-65D00-000 |
US $79.49 |
||
|
5
|
5
18533-77E00-000 GASKET,EGR PIPEJ20A; 1997-11-01~2000-03-01 |
18533-77E00-000 |
US $2.28 |
||
|
6
|
6
18536-77EA0-000 CLAMP,EGR PIPEJ20A; 1997-11-01~2000-03-01 |
18536-77EA0-000 |
US $3.61 |
||
|
7
|
7
01550-06163-000
Bolt
J20A; 1997-11-01~2000-03-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0616B-000 BOLTJ20A; 1997-11-01~2000-03-01 |
01550-0616B-000 |
from US $0.76 |
||
|
7
|
7
01550-0616A-000 BOLTJ20A; 1997-11-01~2000-03-01 |
01550-0616A-000 |
from US $0.76 |
||
|
8
|
8
18117-65D00-000 VALVE,EVAP CANISTER PURGEJ20A; 1997-11-01~2000-03-01 |
18117-65D00-000 |
US $161.60 |
||
|
9
|
9
08316-10063-000
Nut
J20A; 1997-11-01~2000-03-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1006B-000 NUTJ20A; 1997-11-01~2000-03-01 |
08316-1006B-000 |
from US $0.76 |
||
|
10
|
10
18417-65D00-000
BRACKET,PURGE VALVE
J20A; 1997-11-01~2000-03-01 |
18417-65D00-000 |
— | ||
|
11
|
11
01550-06123-000
Bolt
J20A; 1997-11-01~2000-03-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0612B-000 BOLTBolt, clamp J20A; 1997-11-01~2000-03-01 |
01550-0612B-000 |
from US $0.76 |
||
|
11
|
11
01550-0612A-000 BOLTJ20A; 1997-11-01~2000-03-01 |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
09355-35754-601
HOSE(3.5X7.5X601)
L:601>120; J20A; 1997-11-01~2000-03-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
12
|
12
09355-35006-601 Hose(3.5X7.5X601)L:601>120; J20A; 1997-11-01~2000-03-01 |
09355-35006-601 |
from US $5.78 |
||
|
13
|
13
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600>150; J20A; 1997-11-01~2000-03-01 |
09355-54115-600 |
from US $7.20 |
||
|
14
|
14
09359-35751-600 HOSE(3.5X7.5X600)Hose, cstr purge L:600>270; J20A; 1997-11-01~2000-03-01 |
09359-35751-600 |
from US $11.20 |
||
|
15
|
15
18560-50G01-000
CANISTER
J20A; 1997-11-01~2000-03-01 |
18560-50G01-000 |
— | ||
|
16
|
16
18570-65D00-000
BRACKET,CANISTER
J20A; 1997-11-01~2000-03-01 |
18570-65D00-000 |
— | ||
| replacement | |||||
|
16
|
16
18570-65D40-000 BRACKET,CNSTRJ20A; 1997-11-01~2000-03-01 |
18570-65D40-000 |
US $9.05 |
||
|
17
|
17
01550-08123-000
Bolt
J20A; 1997-11-01~2000-03-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0812B-000 BoltPlug, drain J20A; 1997-11-01~2000-03-01 |
01550-0812B-000 |
from US $0.96 |
||
|
17
|
17
01550-0812A-000 BOLTJ20A; 1997-11-01~2000-03-01 |
01550-0812A-000 |
from US $0.91 |
||
|
18
|
18
09401-06405-000 CLIPJ20A; 1997-11-01~2000-03-01 |
09401-06405-000 |
from US $1.12 |
||
|
19
|
19
09401-08411-000 CLIPJ20A; 1997-11-01~2000-03-01 |
09401-08411-000 |
from US $0.91 |
||
|
20
|
20
09401-10409-000 CLIPJ20A; 1997-11-01~2000-03-01 |
09401-10409-000 |
from US $1.12 |
||
|
21
|
21
18145-71C00-000
CHAMBER
J20A; 1997-11-01~1999-03-01 |
18145-71C00-000 |
— | ||
|
22
|
22
18582-78GA0-000 HOSE,AIR ASSIST VALVEJ20A; 1997-11-01~1999-03-01 |
18582-78GA0-000 |
US $9.16 |
||
|
23
|
23
18579-65D00-000
TAPE,ADHERE
J20A; 1997-11-01~1999-03-01 |
18579-65D00-000 |
— | ||
|
24
|
24
09367-08004-000 3 WAY3 way (m8) J20A; 1997-11-01~1999-03-01 |
09367-08004-000 |
from US $2.24 |
||
|
25
|
25
18568-55F00-000 HOSE,DRAINJ20A; 1997-11-01~1999-03-01 |
18568-55F00-000 |
US $2.36 |
||
|
26
|
26
09401-12404-000 CLIPClip J20A; 1997-11-01~1999-03-01 |
09401-12404-000 |
from US $1.52 |
||
|
27
|
27
09408-00033-000 CLAMPClamp J20A; 1997-11-01~2000-03-01 |
09408-00033-000 |
from US $1.60 |
||
|
28
|
28
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>460; J20A; 1998-11-01~2000-03-01 |
09355-70125-600 |
from US $5.51 |
||
| replacement | |||||
|
28
|
28
44421-12FR0-000 HOSEL:600>460; J20A; 1998-11-01~2000-03-01 |
44421-12FR0-000 |
from US $16.64 |
||
|
29
|
29
09401-12404-000 CLIPClip J20A; 1998-11-01~2000-03-01 |
09401-12404-000 |
from US $1.52 |
||
|
30
|
30
09408-00050-000 CLAMPJ20A; 1998-11-01~2000-03-01 |
09408-00050-000 |
from US $1.28 |
||
