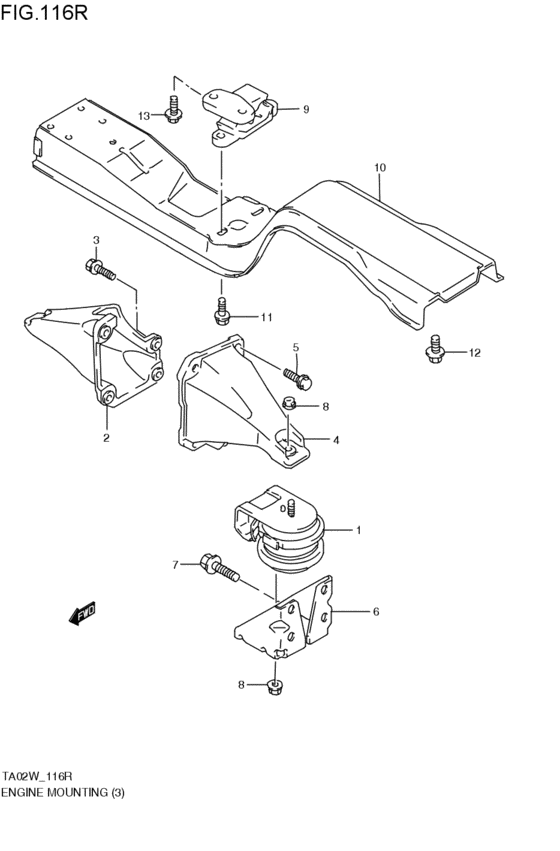

engine mounting (J20A; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- Number of doors
- 3DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-65D00-000 MOUNTING,ENG FRJ20A; 1997-11-01~2000-03-01 |
11610-65D00-000 |
from US $155.48 |
||
|
2
|
2
11641-65D00-000 BRACKET,ENG FR MTG,RJ20A; 1997-11-01~2000-03-01 |
11641-65D00-000 |
US $116.29 |
||
|
3
|
3
01560-10303-000
ボルト
J20A; 1997-11-01~2000-03-01 |
01560-10303-000 |
— | ||
| replacement | |||||
|
3
|
3
01560-1030A-000 BoltJ20A; 1997-11-01~2000-03-01 |
01560-1030A-000 |
US $1.12 |
||
|
4
|
4
11651-65D00-000 BRACKET,ENG FR MTG,LJ20A; 1997-11-01~2000-03-01 |
11651-65D00-000 |
US $104.88 |
||
|
5
|
5
01560-10303-000
ボルト
J20A; 1997-11-01~2000-03-01 |
01560-10303-000 |
— | ||
| replacement | |||||
|
5
|
5
01560-1030A-000 BoltJ20A; 1997-11-01~2000-03-01 |
01560-1030A-000 |
US $1.12 |
||
|
6
|
6
11661-65D00-000 BRACKET,ENG FR MTG FRAME SIDEJ20A; 1997-11-01~2000-03-01 |
11661-65D00-000 |
US $67.20 |
||
|
7
|
7
09112-12001-000 BOLT(12X35)J20A; 1998-11-01~2000-03-01 |
09112-12001-000 |
US $22.40 |
||
|
7
|
7
01570-12353-000
ボルト
J20A; 1997-11-01~1998-05-01 |
01570-12353-000 |
— | ||
| replacement | |||||
|
7
|
7
01570-1235A-000 BoltJ20A; 1997-11-01~1998-05-01 |
01570-1235A-000 |
US $21.70 |
||
|
8
|
8
08316-10103-000
Nut
J20A; 1997-11-01~2000-03-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1010B-000 NUTJ20A; 1997-11-01~2000-03-01 |
08316-1010B-000 |
from US $0.80 |
||
|
9
|
9
11710-77E11-000 MOUNTING,ENG RRJ20A; 1997-11-01~2000-03-01 |
11710-77E11-000 |
from US $100.76 |
||
|
10
|
10
11730-65D01-000
メンバ,エンジンリヤマウンチング
J20A; 1997-11-01~2000-03-01 |
11730-65D01-000 |
— | ||
| replacement | |||||
|
10
|
10
11730-68D02-000 MEMBER,ENG RRJ20A; 1997-11-01~2000-03-01 |
11730-68D02-000 |
US $215.28 |
||
|
11
|
11
01560-10163-000
ボルト
J20A; 1997-11-01~2000-03-01 |
01560-10163-000 |
— | ||
| replacement | |||||
|
11
|
11
01560-1016A-000 BoltJ20A; 1997-11-01~2000-03-01 |
01560-1016A-000 |
US $0.96 |
||
|
12
|
12
09112-10006-000 BOLT(10X25)J20A; 1998-11-01~2000-03-01 |
09112-10006-000 |
US $1.38 |
||
|
12
|
12
01580-10253-000
ボルト
J20A; 1997-11-01~1998-05-01 |
01580-10253-000 |
— | ||
| replacement | |||||
|
12
|
12
01580-1025A-000 BoltJ20A; 1997-11-01~1998-05-01 |
01580-1025A-000 |
US $19.50 |
||
|
13
|
13
01560-10303-000
ボルト
J20A; 1997-11-01~2000-03-01 |
01560-10303-000 |
— | ||
| replacement | |||||
|
13
|
13
01560-1030A-000 BoltJ20A; 1997-11-01~2000-03-01 |
01560-1030A-000 |
US $1.12 |
||
