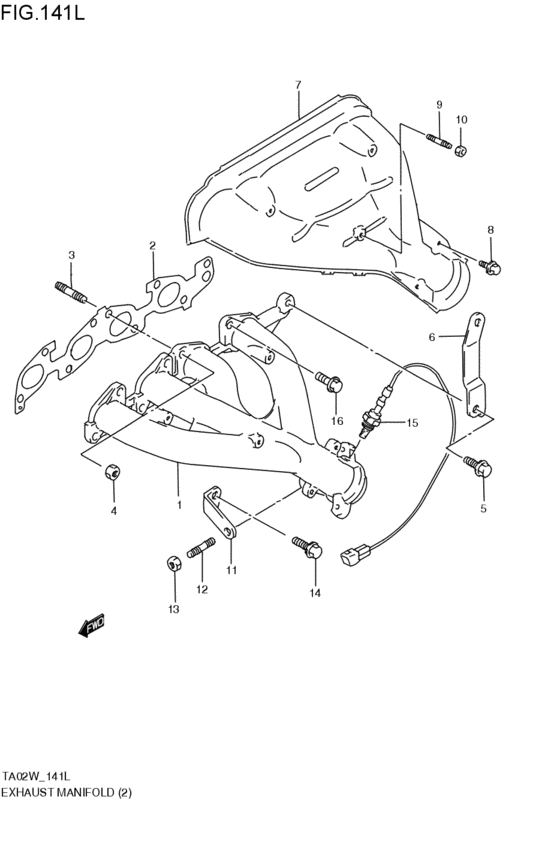

exhaust manifold (J20A; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- Number of doors
- 3DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-77EA0-000
マニホールド,エキゾースト
J20A; 1997-11-01~2000-03-01 |
14111-77EA0-000 |
— | ||
| replacement | |||||
|
1
|
1
14111-77EA1-000 MANIFOLD,EXHJ20A; 1997-11-01~2000-03-01 |
14111-77EA1-000 |
US $553.60 |
||
|
2
|
2
14140-65D01-000
ガスケット,エキゾーストマニホールド
J20A; 1997-11-01~2000-03-01 |
14140-65D01-000 |
— | ||
| replacement | |||||
|
2
|
2
14140-65D02-000 GASKET,EXH MANFJ20A; 1997-11-01~2000-03-01 |
14140-65D02-000 |
from US $38.48 |
||
|
3
|
3
01421-10303-000
Bolt, rear final gear
J20A; 1997-11-01~1998-05-01 |
01421-10303-000 |
— | ||
| replacement | |||||
|
3
|
3
01421-1030A-000 BOLT,STUDJ20A; 1997-11-01~1998-05-01 |
01421-1030A-000 |
from US $1.60 |
||
|
3
|
3
14118-65D00-000
スタッドボルト
J20A; 1998-11-01~2000-03-01 |
14118-65D00-000 |
— | ||
| replacement | |||||
|
3
|
3
14118-63J00-000 STUD BOLT,EXH MANFJ20A; 1998-11-01~2000-03-01 |
14118-63J00-000 |
from US $1.22 |
||
|
4
|
4
08316-10103-000
Nut
J20A; 1997-11-01~1998-05-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1010B-000 NUTJ20A; 1997-11-01~1998-05-01 |
08316-1010B-000 |
from US $0.80 |
||
|
5
|
5
01550-10453-000
Bolt
J20A; 1997-11-01~2000-03-01 |
01550-10453-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-1045B-000 BoltJ20A; 1997-11-01~2000-03-01 |
01550-1045B-000 |
from US $1.28 |
||
|
6
|
6
11851-77EA0-000 HOOK,ENGINEJ20A; 1997-11-01~2000-03-01 |
11851-77EA0-000 |
US $24.80 |
||
|
7
|
7
14120-77EA2-000
Cover,exh manf upper
J20A; 1997-11-01~2000-03-01 |
14120-77EA2-000 |
— | ||
| replacement | |||||
|
7
|
7
14120-77EA3-000 COVER,EXH MANF UPRJ20A; 1997-11-01~2000-03-01 |
14120-77EA3-000 |
US $107.17 |
||
|
8
|
8
09103-06168-000 BOLT(6X10)J20A; 1997-11-01~2000-03-01 |
09103-06168-000 |
from US $1.01 |
||
|
9
|
9
01411-06123-000
Bolt, stud
J20A; 1997-11-01~2000-03-01 |
01411-06123-000 |
— | ||
| replacement | |||||
|
9
|
9
01411-0612A-000 BOLT,STUDJ20A; 1997-11-01~2000-03-01 |
01411-0612A-000 |
from US $0.67 |
||
|
10
|
10
09159-06077-000 NUTJ20A; 1997-11-01~2000-03-01 |
09159-06077-000 |
US $1.28 |
||
|
11
|
11
14270-77EA0-000 STIFFENER,EXH MANFJ20A; 1997-11-01~2000-03-01 |
14270-77EA0-000 |
US $22.40 |
||
|
12
|
12
01411-10163-000
スタッドボルト
J20A; 1997-11-01~2000-03-01 |
01411-10163-000 |
— | ||
| replacement | |||||
|
12
|
12
01411-1016A-000 BOLT,STUDJ20A; 1997-11-01~2000-03-01 |
01411-1016A-000 |
US $1.60 |
||
|
13
|
13
08316-10103-000
Nut
J20A; 1997-11-01~2000-03-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1010B-000 NUTJ20A; 1997-11-01~2000-03-01 |
08316-1010B-000 |
from US $0.80 |
||
|
14
|
14
01550-10203-000
Bolt
J20A; 1997-11-01~2000-03-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
14
|
14
01550-1020A-000 BOLTBolt, bal sprocket J20A; 1997-11-01~2000-03-01 |
01550-1020A-000 |
from US $0.96 |
||
|
15
|
15
18213-65D01-000
センサ,オキシジェン
J20A; 1997-11-01~2000-03-01 |
18213-65D01-000 |
— | ||
| replacement | |||||
|
15
|
15
18213-65D02-000 SENSOR ASSY,OXYGENJ20A; 1997-11-01~2000-03-01 |
18213-65D02-000 |
US $242.88 |
||
|
16
|
16
01550-10303-000
Bolt
J20A; 1998-11-01~2000-03-01 |
01550-10303-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-1030B-000 BOLTBolt, axle housing rear J20A; 1998-11-01~2000-03-01 |
01550-1030B-000 |
from US $5.07 |
||
|
16
|
16
01550-1030A-000 BOLTJ20A; 1998-11-01~2000-03-01 |
01550-1030A-000 |
from US $1.12 |
||
