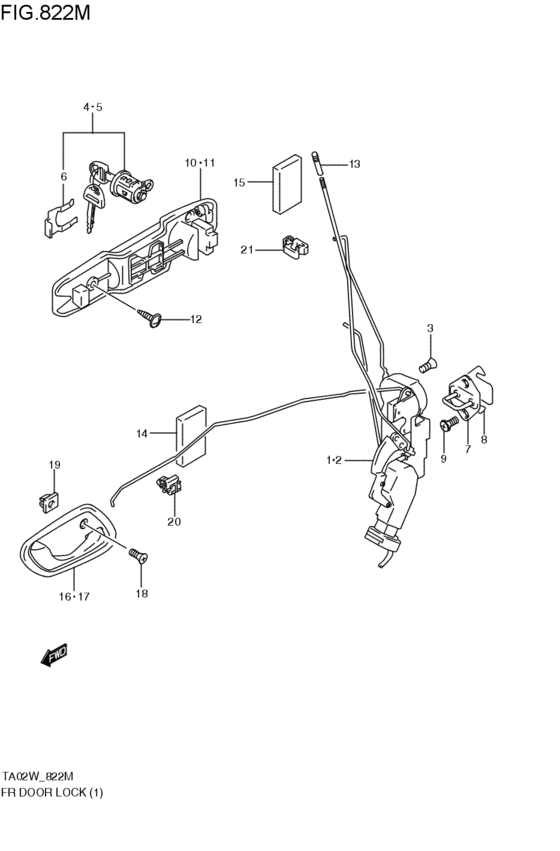

front door lock (3DR; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- Number of doors
- 3DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82201-66D10-000
ラッチアッシ,フロントドア,ライト
3DR; 1997-11-01~2000-03-01 |
82201-66D10-000 |
— | ||
| replacement | |||||
|
1
|
1
82201-66D11-000 LATCH ASSY,FR DR,R3DR; 1997-11-01~2000-03-01 |
82201-66D11-000 |
US $327.52 |
||
|
2
|
2
82202-66D10-000
ラッチアッシ,フロントドア,レフト
3DR; 1997-11-01~2000-03-01 |
82202-66D10-000 |
— | ||
| replacement | |||||
|
2
|
2
82202-66D11-000 LATCH ASSY,FR DR,L3DR; 1997-11-01~2000-03-01 |
82202-66D11-000 |
US $327.52 |
||
|
3
|
3
82291-65D00-000
スクリュ,ドアラッチ
3DR; 1997-11-01~2000-03-01 |
82291-65D00-000 |
— | ||
| replacement | |||||
|
3
|
3
82291-65D01-000 SCREW3DR; 1997-11-01~2000-03-01 |
82291-65D01-000 |
US $2.50 |
||
|
4
|
4
82201-60860-000 CYLINDER,FR DR LOCKCylinder, front door lock lh ライト; 3DR; 1997-11-01~2000-03-01 |
82201-60860-000 |
US $95 |
||
|
5
|
5
82201-60850-000 CYLINDER,FR DR LOCKCylinder, front door lock rh レフト; 3DR; 1997-11-01~2000-03-01 |
82201-60850-000 |
US $95 |
||
|
6
|
6
82291-70B00-000 RETAINER,CYLINDER3DR; 1997-11-01~2000-03-01 |
82291-70B00-000 |
US $3.31 |
||
|
7
|
7
82610-60A01-000 STRIKER,FR DOOR LATCH3DR; 1997-11-01~2000-03-01 |
82610-60A01-000 |
US $21.60 |
||
|
8
|
8
78199-78000-000 SPACER,DOOR LOCK STRIKER3DR; 1997-11-01~2000-03-01 |
78199-78000-000 |
US $1.60 |
||
|
9
|
9
09137-08011-000 SCREW(8X18)3DR; 1997-11-01~2000-03-01 |
09137-08011-000 |
US $1.44 |
||
|
10
|
10
82810-65D00-5PK HANDLE,SIDE DOOR OUT,Rブラック; 3DR; 1997-11-01~2000-03-01 |
82810-65D00-5PK |
from US $55.96 |
||
|
11
|
11
82820-65D00-5PK HANDLE,SIDE DOOR OUT,Lブラック; 3DR; 1997-11-01~2000-03-01 |
82820-65D00-5PK |
from US $61.07 |
||
|
12
|
12
02162-06123-000
Bolt (6x12)
3DR; 1997-11-01~2000-03-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
12
|
12
02162-0612B-000 SCREWBolt 3DR; 1997-11-01~2000-03-01 |
02162-0612B-000 |
from US $0.80 |
||
|
12
|
12
02162-0612A-000 SCREWBolt, bracket 3DR; 1997-11-01~2000-03-01 |
02162-0612A-000 |
from US $0.80 |
||
|
13
|
13
82982-65D00-T01 KNOB,SIDE DR INS LOCKKnob, inside lock (gray) グレ-; 3DR; 1997-11-01~2000-03-01 |
82982-65D00-T01 |
from US $2.24 |
||
|
14
|
14
77591-75000-000 PAD3DR; 1997-11-01~2000-03-01 |
77591-75000-000 |
US $2.28 |
||
|
15
|
15
77591-75000-000 PAD3DR; 1997-11-01~1998-06-01 |
77591-75000-000 |
US $2.28 |
||
|
15
|
15
83211-65D00-000 PAD3DR; 1998-08-01~2000-03-01 |
83211-65D00-000 |
US $1.99 |
||
|
16
|
16
83110-60G01-T01
HANDLE,SIDE DR INS,R
グレ-; 3DR; 1997-11-01~2000-03-01 |
83110-60G01-T01 |
— | ||
| replacement | |||||
|
16
|
16
83110-60G02-T01
HANDLE,SIDE DR INSIDE,R
グレ-; 3DR; 1997-11-01~2000-03-01 |
83110-60G02-T01 |
— | ||
|
17
|
17
83130-60G01-T01
HANDLE,SIDE DR INS,L
グレ-; 3DR; 1997-11-01~2000-03-01 |
83130-60G01-T01 |
— | ||
| replacement | |||||
|
17
|
17
83130-60G02-T01
HANDLE,SIDE DR INSIDE,L
グレ-; 3DR; 1997-11-01~2000-03-01 |
83130-60G02-T01 |
— | ||
|
18
|
18
03121-05163-000
Screw
3DR; 1997-11-01~2000-03-01 |
03121-05163-000 |
— | ||
| replacement | |||||
|
18
|
18
03121-0516A-000 SCREW3DR; 1997-11-01~2000-03-01 |
03121-0516A-000 |
from US $0.80 |
||
|
19
|
19
83119-60B00-000 NUT,FR DOOR INSIDE HANDLE3DR; 1997-11-01~2000-03-01 |
83119-60B00-000 |
US $1.77 |
||
|
20
|
20
83271-63D10-000 CLIP,DR R/CON ROD3DR; 1997-11-01~2000-03-01 |
83271-63D10-000 |
US $1.60 |
||
|
21
|
21
09403-07324-000 CLAMP3DR; 1997-11-01~2000-03-01 |
09403-07324-000 |
US $14 |
||
