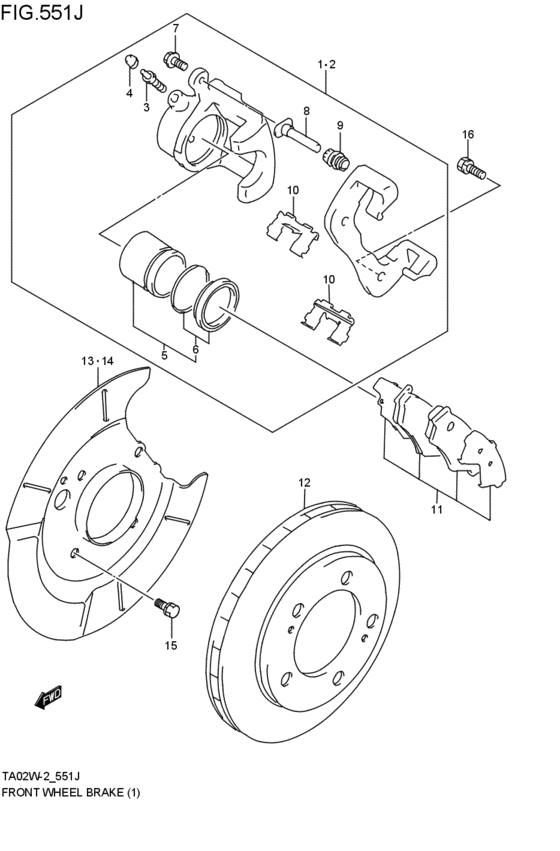

front wheel brakes (3DR; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- G2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55101-65D00-999
キャリパ,フロントブレーキ,ライト
3DR; 2000-04-01~2002-09-01 |
55101-65D00-999 |
— | ||
| replacement | |||||
|
1
|
1
55101-65D01-999 CALIPER,FR BRAKE,R3DR; 2000-04-01~2002-09-01 |
55101-65D01-999 |
US $408.32 |
||
|
2
|
2
55102-65D00-999
キャリパ,フロントブレーキ,レフト
3DR; 2000-04-01~2002-09-01 |
55102-65D00-999 |
— | ||
| replacement | |||||
|
2
|
2
55102-65D01-999 CALIPER,FR BRAKE,L3DR; 2000-04-01~2002-09-01 |
55102-65D01-999 |
US $408.32 |
||
|
3
|
3
55473-82030-000
Plug, bleeder
3DR; 2000-04-01~2002-09-01 |
55473-82030-000 |
— | ||
| replacement | |||||
|
3
|
3
55151-78451-000 PLUG,BLEEDER3DR; 2000-04-01~2002-09-01 |
55151-78451-000 |
from US $3.94 |
||
|
4
|
4
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug 3DR; 2000-04-01~2002-09-01 |
55156-66310-000 |
from US $1.98 |
||
|
5
|
5
55840-64G00-000 PISTON/SEAL SET3DR; 2000-04-01~2002-09-01 |
55840-64G00-000 |
US $66.40 |
||
|
6
|
6
55830-64G00-000 SEAL SET,PISTON3DR; 2000-04-01~2002-09-01 |
55830-64G00-000 |
from US $8.96 |
||
|
7
|
7
55206-60A00-000
ボルト,ピン
3DR; 2000-04-01~2002-09-01 |
55206-60A00-000 |
— | ||
| replacement | |||||
|
7
|
7
55206-60A01-000 BOLT,PIN3DR; 2000-04-01~2002-09-01 |
55206-60A01-000 |
US $9.60 |
||
|
8
|
8
55191-56B00-000 PIN,CYLINDER SLIDE3DR; 2000-04-01~2002-09-01 |
55191-56B00-000 |
from US $16.25 |
||
|
9
|
9
55201-56B01-000 BOOT,PIN3DR; 2000-04-01~2002-09-01 |
55201-56B01-000 |
from US $2.88 |
||
|
10
|
10
55234-56B00-000 SPRING,PAD3DR; 2000-04-01~2002-09-01 |
55234-56B00-000 |
from US $8.96 |
||
|
11
|
11
55200-65D01-000
パッドセット,ディスクブレーキ
3DR; 2000-04-01~2002-09-01 |
55200-65D01-000 |
— | ||
| replacement | |||||
|
11
|
11
55200-65D21-000 PAD SET,DISC BRAKE3DR; 2000-04-01~2002-09-01 |
55200-65D21-000 |
from US $116.39 |
||
|
12
|
12
55211-65D01-000
ディスク,フロントブレーキ
3DR; 2000-04-01~2002-09-01 |
55211-65D01-000 |
— | ||
| replacement | |||||
|
12
|
12
55211-65D02-000 DISC,FR BRAKE3DR; 2000-04-01~2002-09-01 |
55211-65D02-000 |
US $176.27 |
||
|
13
|
13
55221-65D00-000 COVER,BRAKE DISC DUST,R3DR; 2000-04-01~2002-09-01 |
55221-65D00-000 |
US $69.60 |
||
|
14
|
14
55222-65D00-000 COVER,BRAKE DISC DUST,L3DR; 2000-04-01~2002-09-01 |
55222-65D00-000 |
US $69.60 |
||
|
15
|
15
09117-10042-000 BOLT(10X25)3DR; 2000-04-01~2002-09-01 |
09117-10042-000 |
US $2.24 |
||
|
16
|
16
09117-12012-000 BOLT(12X32)3DR; 2000-04-01~2002-09-01 |
09117-12012-000 |
from US $2.08 |
||
