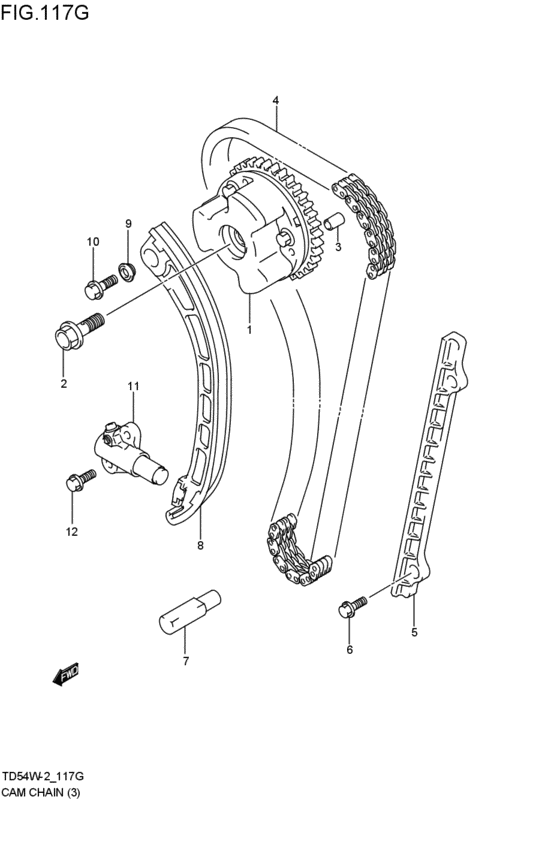

cam chain (M16A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M16A
- transmission
- MT
- Number of doors
- 3DR
- grade
- XC
- number of the gears
- 5MT
- air bag
- 2AB
- esp
- NESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12740-54GE1-000 SPROCKET ASSY,CAMSHAFT TIMINGM16A; 2006-06-01~ |
12740-54GE1-000 |
from US $264.02 |
||
|
2
|
2
12753-69GE1-000
BOLT,CAMSHAFT TIMING
M16A; 2006-06-01~ |
12753-69GE1-000 |
— | ||
| replacement | |||||
|
2
|
2
12753-69GE2-000 BOLT,CAMSHAFT TIMINGM16A; 2006-06-01~ |
12753-69GE2-000 |
US $6.40 |
||
|
3
|
3
09206-05001-000 PIN(3.4X5X10)M16A; 2006-06-01~ |
09206-05001-000 |
from US $1.22 |
||
|
4
|
4
12761-54G00-000 CHAIN,TIMINGM16A; 2006-06-01~ |
12761-54G00-000 |
from US $78.28 |
||
|
5
|
5
12771-54G01-000
ガイド,タイミングチェーンNO.1
M16A; 2006-06-01~ |
12771-54G01-000 |
— | ||
| replacement | |||||
|
5
|
5
12771-61M00-000 GUIDE,TIMING CHAIN NO.1M16A; 2006-06-01~ |
12771-61M00-000 |
from US $13.75 |
||
|
6
|
6
12776-85FA0-000 BOLT,TIMING CHAIN GUIDEBolt, timing chain guide M16A; 2006-06-01~ |
12776-85FA0-000 |
from US $3.04 |
||
|
7
|
7
12781-69G00-000 JET,TIMING CHAINM16A; 2006-06-01~ |
12781-69G00-000 |
from US $8.64 |
||
|
8
|
8
12811-69G02-000 Tensioner, Timing ChainM16A; 2006-06-01~ |
12811-69G02-000 |
from US $59.96 |
||
|
9
|
9
12812-73G10-000 SPACER,TIMING CHAIN TENSIONERSpacer, timing chain tensioner M16A; 2006-06-01~ |
12812-73G10-000 |
from US $4.48 |
||
|
10
|
10
01550-0830A-000 BoltBolt, mount oil seal cover M16A; 2006-06-01~ |
01550-0830A-000 |
from US $1.06 |
||
|
11
|
11
12831-69G00-000
Adjuster assy,tensioner
M16A; 2006-06-01~ |
12831-69G00-000 |
— | ||
| replacement | |||||
|
11
|
11
12831-69G10-000 ADJUSTER ASSY,TENSIONERM16A; 2006-06-01~ |
12831-69G10-000 |
from US $63.68 |
||
|
12
|
12
01550-0620A-000 BoltM16A; 2006-06-01~ |
01550-0620A-000 |
from US $0.76 |
||
