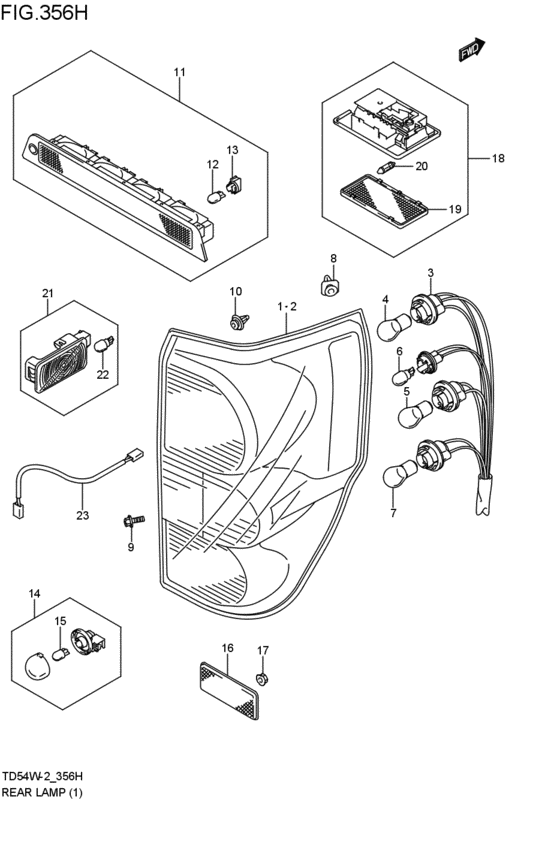

rear lamp (3DR; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M16A
- transmission
- MT
- Number of doors
- 3DR
- grade
- XC
- number of the gears
- 5MT
- air bag
- 2AB
- esp
- NESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-64J20-000
UNITRR COMBINATION RH
3DR; 2006-06-01~ |
35650-64J20-000 |
— | ||
| replacement | |||||
|
1
|
1
35650-64J21-000 UNIT,RR COMB,R3DR; 2006-06-01~ |
35650-64J21-000 |
from US $317.41 |
||
|
2
|
2
35670-64J20-000 UNIT,RR COMB,L3DR; 2006-06-01~ |
35670-64J20-000 |
from US $270.95 |
||
|
3
|
3
35658-64J21-000
Socket & cord assy
3DR; 2006-06-01~ |
35658-64J21-000 |
— | ||
| replacement | |||||
|
3
|
3
35658-64J24-000 SOCKET&CORD ASSY3DR; 2006-06-01~ |
35658-64J24-000 |
from US $26.39 |
||
|
4
|
4
09471-12083-000 BULB(12V21/5W)STANLEY,49641A; 3DR; 2006-06-01~ |
09471-12083-000 |
from US $4.52 |
||
| replacement | |||||
|
4
|
4
09471-12128-000 BULB(12V21/5W,BF141-49642A)STANLEY,49641A; 3DR; 2006-06-01~ |
09471-12128-000 |
from US $7.20 |
||
|
5
|
5
09471-12186-000 BULB(12V21W,AMBER)アンバー; 3DR; 2006-06-01~ |
09471-12186-000 |
from US $9.23 |
||
|
6
|
6
09471-12146-000 BULB(12V16W)Bulb (12v18w) 3DR; 2006-06-01~ |
09471-12146-000 |
from US $3.36 |
||
|
7
|
7
09471-12045-000 BULB(12V21W)STANLEY,A4957E; 3DR; 2006-06-01~ |
09471-12045-000 |
from US $3.11 |
||
|
8
|
8
35153-65J00-000 GROMMET,RR COMB LAMP3DR; 2006-06-01~ |
35153-65J00-000 |
from US $1.60 |
||
|
9
|
9
02162-0616B-000 SCREWBolt, adjust 3DR; 2006-06-01~ |
02162-0616B-000 |
from US $0.96 |
||
|
10
|
10
71812-78F00-000 CLIP3DR; 2006-06-01~ |
71812-78F00-000 |
from US $1.67 |
||
|
11
|
11
35810-65J00-000
LAMP ASSYHIGH MT STOP
3DR; 2006-06-01~ |
35810-65J00-000 |
— | ||
| replacement | |||||
|
11
|
11
35810-65J01-000 LAMP ASSY,HIGH MT STOP3DR; 2006-06-01~ |
35810-65J01-000 |
from US $177.68 |
||
|
12
|
12
09471-12216-000 BULB(12V5W)Bulb (12v5w) 3DR; 2006-06-01~ |
09471-12216-000 |
from US $3.02 |
||
|
13
|
13
36218-74F00-000 SOCKET3DR; 2006-06-01~ |
36218-74F00-000 |
from US $2.12 |
||
|
14
|
14
35910-75F22-000 Lamp assy,license3DR; 2006-06-01~ |
35910-75F22-000 |
from US $16 |
||
|
15
|
15
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 3DR; 2006-06-01~ |
09471-12081-000 |
— | ||
| replacement | |||||
|
15
|
15
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 3DR; 2006-06-01~ |
09471-12216-000 |
from US $3.02 |
||
|
16
|
16
35970-07F00-000
Reflector assy, rear side
3DR; 2006-06-01~ |
35970-07F00-000 |
— | ||
| replacement | |||||
|
16
|
16
35970-07F01-000 REFLECTOR ASSY,RR3DR; 2006-06-01~ |
35970-07F01-000 |
from US $11.04 |
||
|
17
|
17
08316-1005A-000 NUT3DR; 2006-06-01~ |
08316-1005A-000 |
from US $0.96 |
||
|
18
|
18
36210-63J01-6GS
LAMP ASSY,ROOM
グレ-; 3DR; 2006-06-01~ |
36210-63J01-6GS |
— | ||
| replacement | |||||
|
18
|
18
36210-63J02-6GS Lamp Assy,roomグレ-; 3DR; 2006-06-01~ |
36210-63J02-6GS |
from US $20.75 |
||
|
19
|
19
36212-63J00-000 LENS3DR; 2006-06-01~ |
36212-63J00-000 |
US $9.20 |
||
|
20
|
20
09471-12181-000 BULB(12V10W)3DR; 2006-06-01~ |
09471-12181-000 |
from US $3.26 |
||
|
21
|
21
36210-54G20-000 LAMP ASSY,LUGGAGE ROOM3DR; 2006-06-01~ |
36210-54G20-000 |
from US $16.52 |
||
|
22
|
22
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 3DR; 2006-06-01~ |
09471-12081-000 |
— | ||
| replacement | |||||
|
22
|
22
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 3DR; 2006-06-01~ |
09471-12216-000 |
from US $3.02 |
||
|
23
|
23
36632-64J00-000 WIRE,LUGGAGE ROOM LAMP3DR; 2006-06-01~ |
36632-64J00-000 |
US $28 |
||
