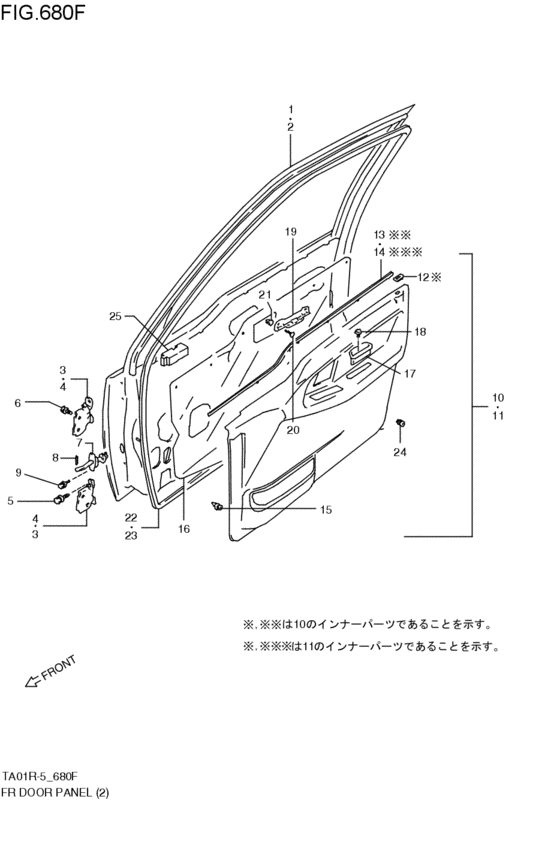

front door panel (4DR; 1995-05-01~1996-09-01) Diagram Suzuki ESCUDO
- Year
- 1995 - 1996
- Sales region
- Japan
- Engine
- EPI
- drive
- 4WD
- transmission
- 4AT
- Number of doors
- 4DR
- grade
- X
- body
- W
- air bag
- NAB
- abs
- NABS
- valve
- 4V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-57811-000
パネルアッシ,フロントドア,ライト
4DR; 1995-05-01~1996-09-01 |
68001-57811-000 |
— | ||
| replacement | |||||
|
1
|
1
68001-57812-000 PANEL SET,FRONT DOOR,R4DR; 1995-05-01~1996-09-01 |
68001-57812-000 |
US $605.44 |
||
|
2
|
2
68002-57811-000
パネルセット,フロントドア,レフト
4DR; 1995-05-01~1996-09-01 |
68002-57811-000 |
— | ||
| replacement | |||||
|
2
|
2
68002-57812-000 PANEL SET,FRONT DOOR,L4DR; 1995-05-01~1996-09-01 |
68002-57812-000 |
US $591.36 |
||
|
3
|
3
69310-60A10-000 HINGE,FR DOOR,NO.1Upper RH / Lower LH UPPER RH; 4DR; 1995-05-01~1996-09-01 |
69310-60A10-000 |
from US $36.32 |
||
|
4
|
4
69340-60A11-000 HINGE,FR DOOR,NO.2Upper LH / Lower RH UPPER LH; 4DR; 1995-05-01~1996-09-01 |
69340-60A11-000 |
from US $43.56 |
||
|
5
|
5
01570-08203-000
Bolt
4DR; 1995-05-01~1996-09-01 |
01570-08203-000 |
— | ||
| replacements | |||||
|
5
|
5
01570-0820B-000 Bolt4DR; 1995-05-01~1996-09-01 |
01570-0820B-000 |
US $17.30 |
||
|
5
|
5
01570-0820A-000 BOLT4DR; 1995-05-01~1996-09-01 |
01570-0820A-000 |
from US $0.96 |
||
|
6
|
6
09118-08156-000 BOLT(8X25)4DR; 1995-05-01~1996-09-01 |
09118-08156-000 |
US $19.50 |
||
|
7
|
7
81810-56B01-000 STOP,FRONT DOOR OPEN4DR; 1995-05-01~1996-09-01 |
81810-56B01-000 |
US $32.02 |
||
|
8
|
8
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY4DR; 1995-05-01~1996-09-01 |
81831-70B00-000 |
US $1.60 |
||
|
9
|
9
01580-06163-000
Bolt
4DR; 1995-05-01~1996-09-01 |
01580-06163-000 |
— | ||
| replacement | |||||
|
9
|
9
01580-0616A-000 BOLT4DR; 1995-05-01~1996-09-01 |
01580-0616A-000 |
from US $0.96 |
||
|
10
|
10
83701-77E10-5FE
TRIM ASSY,FR DOOR,R
ブラック; 4DR:(X,L,G,SI6); 1995-05-01~1996-09-01 |
83701-77E10-5FE |
— | ||
|
11
|
11
83702-77E10-5FE TRIM ASSY,FR DOOR,Lブラック; 4DR:(X,L,G,SI6); 1995-05-01~1996-09-01 |
83702-77E10-5FE |
US $386.40 |
||
|
12
|
12
83723-61A00-5ES
CAP,INSIDE LOCK KNOB
ブラック; 4DR; 1995-05-01~1996-09-01 |
83723-61A00-5ES |
— | ||
|
13
|
13
83719-57B00-000 WEATHERSTRIP,FR DR INR,R4DR; 1995-05-01~1996-09-01 |
83719-57B00-000 |
from US $41.96 |
||
|
14
|
14
83739-57B00-000 WEATHERSTRIP,FR DR INR,L4DR; 1995-05-01~1996-09-01 |
83739-57B00-000 |
from US $41.96 |
||
|
15
|
15
09409-08320-000 CLIP4DR; 1995-05-01~1996-09-01 |
09409-08320-000 |
from US $1.15 |
||
|
16
|
16
83911-60X50-000
カバー,ドアシーリング,600X1200
4DR; 1995-05-01~1996-09-01 |
83911-60X50-000 |
— | ||
| replacement | |||||
|
16
|
16
83911-60X52-000 COVER,DR SEALING4DR; 1995-05-01~1996-09-01 |
83911-60X52-000 |
US $6.06 |
||
|
17
|
17
84481-68A00-5ES
CASE,DR INS PULL HANDLE
ブラック; 4DR; 1995-05-01~1996-09-01 |
84481-68A00-5ES |
— | ||
|
18
|
18
03141-04123-000
Screw
4DR; 1995-05-01~1996-09-01 |
03141-04123-000 |
— | ||
| replacement | |||||
|
18
|
18
03142-0412B-000 SCREW4DR; 1995-05-01~1996-09-01 |
03142-0412B-000 |
from US $0.80 |
||
|
19
|
19
84482-77E00-000
BRACKET,DR INSIDE PULL HANDLE
4DR; 1995-05-01~1996-09-01 |
84482-77E00-000 |
— | ||
|
20
|
20
03241-06163-000
スクリュ
4DR; 1995-05-01~1996-09-01 |
03241-06163-000 |
— | ||
| replacement | |||||
|
20
|
20
03241-0616C-000 SCREW4DR; 1995-05-01~1996-09-01 |
03241-0616C-000 |
from US $0.76 |
||
|
21
|
21
09148-06007-000 NUT4DR; 1995-05-01~1996-09-01 |
09148-06007-000 |
from US $0.86 |
||
|
22
|
22
84641-56B00-000
ウェザストリップ,フロントドアオープニング,ライト
4DR; 1995-05-01~1996-09-01 |
84641-56B00-000 |
— | ||
| replacement | |||||
|
22
|
22
84641-56B01-000 WEATHERSTRIP,FR DR OPNG,R4DR; 1995-05-01~1996-09-01 |
84641-56B01-000 |
US $125.41 |
||
|
23
|
23
84651-56B00-000
ウェザストリップ,フロントドアオープニング,レフト
4DR; 1995-05-01~1996-09-01 |
84651-56B00-000 |
— | ||
| replacement | |||||
|
23
|
23
84651-56B01-000 WEATHERSTRIP,FR DR OPNG,L4DR; 1995-05-01~1996-09-01 |
84651-56B01-000 |
US $125.41 |
||
|
24
|
24
82711-56B00-000 STOPPER,FR DOORStopper, fr dr lower 4DR; 1995-05-01~1996-09-01 |
82711-56B00-000 |
US $2.88 |
||
|
25
|
25
84755-77E00-000
PAD,FR DOOR SASH BRKT
4DR; 1995-05-01~1996-09-01 |
84755-77E00-000 |
— | ||
