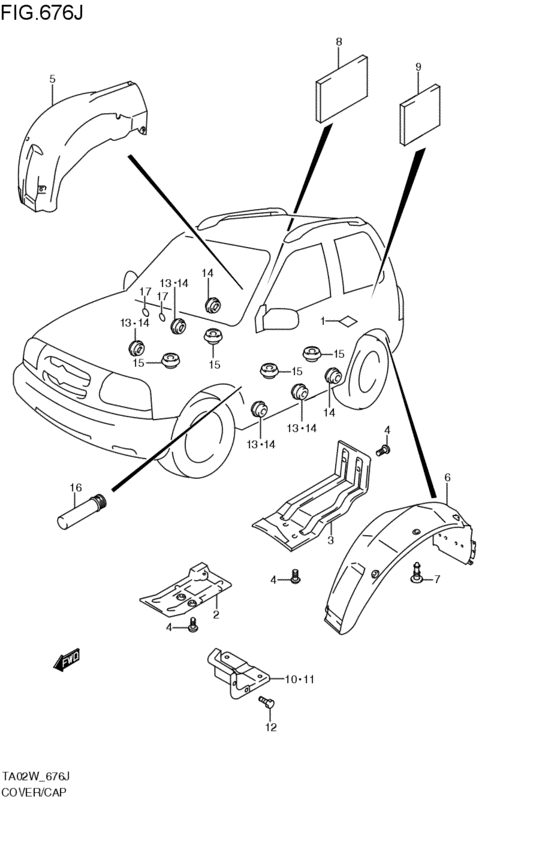

cover / cap (1997-11-01~) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- G16A
- transmission
- MT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 1997-11-01~ |
84761-50X50-000 |
US $6.72 |
||
|
2
|
2
75511-65D00-000
パネル,ヒートプロテクタ,フロント
G16A,J20A,H25A; 1997-11-01~ |
75511-65D00-000 |
— | ||
| replacement | |||||
|
2
|
2
75511-65D20-000 PANEL,HEAT PROTECTOR FRONTG16A,J20A,H25A; 1997-11-01~ |
75511-65D20-000 |
US $13.95 |
||
|
3
|
3
75512-65D00-000 PANEL,HEAT PROTECTOR REAR5DR; 1997-11-01~ |
75512-65D00-000 |
US $48.58 |
||
|
4
|
4
03141-06123-000
Screw 6x12
G16A,J20A,H25A; 1997-11-01~ |
03141-06123-000 |
— | ||
| replacement | |||||
|
4
|
4
03141-0612A-000 SCREWG16A,J20A,H25A; 1997-11-01~ |
03141-0612A-000 |
US $0.76 |
||
|
5
|
5
75521-65D00-000
ライニング,リヤホイールハウジング,ライト
1997-11-01~ |
75521-65D00-000 |
— | ||
| replacement | |||||
|
5
|
5
75521-65D10-000 LINING,RR WHEEL HSG,R1997-11-01~ |
75521-65D10-000 |
US $170.24 |
||
|
6
|
6
75531-65D00-000 LINING,RR WHEEL HSG,L(G16A,J20A):5DR:NORMAL; 1997-11-01~ |
75531-65D00-000 |
US $161.12 |
||
|
7
|
7
09409-07332-000 CLIP5DR; 1997-11-01~ |
09409-07332-000 |
from US $1.28 |
||
|
8
|
8
76332-65D00-000 SILENCER,RR QUARYER5DR; 1997-11-01~1998-10-01 |
76332-65D00-000 |
US $39.38 |
||
|
9
|
9
76332-65D00-000 SILENCER,RR QUARYERL:430>330; 5DR; 1997-11-01~1998-10-01 |
76332-65D00-000 |
US $39.38 |
||
|
10
|
10
75561-65D00-000
REINF FR FLOOR MEMBER SIDE,R
1997-11-01~1998-06-01 |
75561-65D00-000 |
— | ||
|
11
|
11
75562-65D00-000
リンフォースメントフロントフロアメンバサイド,レフト
1997-11-01~1998-06-01 |
75562-65D00-000 |
— | ||
|
12
|
12
01550-08163-000
Bolt, holder
1997-11-01~1998-06-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0816B-000 BOLT1997-11-01~1998-06-01 |
01550-0816B-000 |
from US $0.91 |
||
|
12
|
12
01550-0816A-000 BOLTBolt, rear 1997-11-01~1998-06-01 |
01550-0816A-000 |
from US $0.91 |
||
|
14
|
14
09250-25007-000 CAP(OD:25.0)5DR; 1997-11-01~ |
09250-25007-000 |
US $1.76 |
||
|
15
|
15
09250-30010-000
Grommet
1997-11-01~ |
09250-30010-000 |
— | ||
| replacement | |||||
|
15
|
15
72999-67H00-000 CAP,OD:401997-11-01~ |
72999-67H00-000 |
from US $4.32 |
||
|
16
|
16
76470-70G01-000
シグナルアッシ,フレヤ(KARRIT)
1997-11-01~ |
76470-70G01-000 |
— | ||
| replacement | |||||
|
16
|
16
76470-72M00-000
New Genuine Part
1997-11-01~ |
76470-72M00-000 |
— | ||
|
17
|
17
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 1998-07-01~ |
84761-50X50-000 |
US $6.72 |
||
