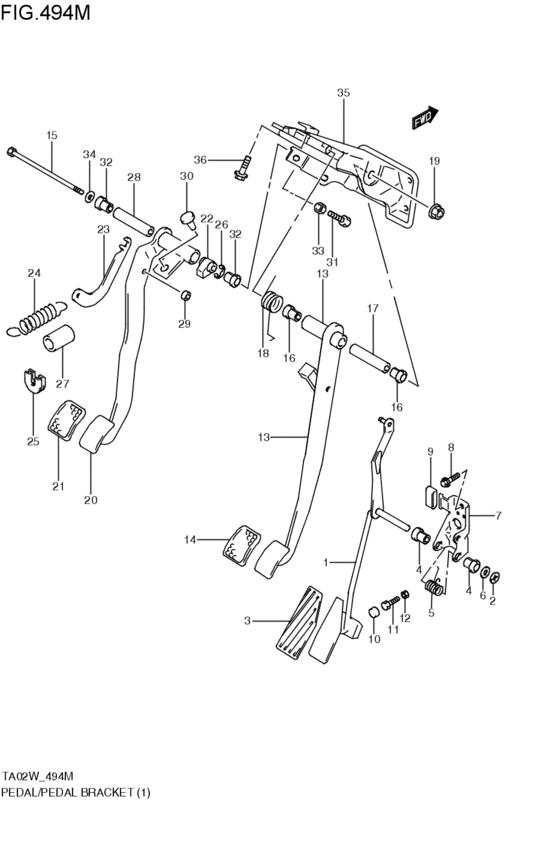

pedal / pedal bracket (MT; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- G16A
- transmission
- MT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-77E10-000 PEDAL,ACCELERATORMT; 1997-11-01~2000-03-01 |
49410-77E10-000 |
US $36.25 |
||
|
2
|
2
09148-09001-000 NUTMT; 1997-11-01~2000-03-01 |
09148-09001-000 |
from US $2.02 |
||
|
3
|
3
49451-60B00-000 PAD,ACCELERATOR PEDALMT; 1997-11-01~2000-03-01 |
49451-60B00-000 |
US $9.44 |
||
|
4
|
4
09307-09001-000 BUSHMT; 1997-11-01~2000-03-01 |
09307-09001-000 |
US $39.70 |
||
|
5
|
5
09448-21005-000 SPRINGMT; 1997-11-01~2000-03-01 |
09448-21005-000 |
US $36.10 |
||
|
6
|
6
09160-09016-000 WASHER(9.5X20X1)MT; 1997-11-01~2000-03-01 |
09160-09016-000 |
from US $0.91 |
||
|
7
|
7
49511-65D00-000 BRACKET,ACCELERATORMT; 1997-11-01~2000-03-01 |
49511-65D00-000 |
US $10.49 |
||
|
8
|
8
01570-06123-000
Bolt
MT; 1997-11-01~2000-03-01 |
01570-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
01570-0612B-000 BOLTBolt, upper MT; 1997-11-01~2000-03-01 |
01570-0612B-000 |
US $0.80 |
||
|
8
|
8
01570-0612A-000 BOLTBolt MT; 1997-11-01~2000-03-01 |
01570-0612A-000 |
from US $0.80 |
||
|
9
|
9
49416-60A00-000 CUSHION,ACCEL PEDAL RETURNMT; 1997-11-01~2000-03-01 |
49416-60A00-000 |
US $2.10 |
||
|
10
|
10
09251-09002-000
CAP(OD:13.6)
MT; 1997-11-01~2000-03-01 |
09251-09002-000 |
— | ||
| replacement | |||||
|
10
|
10
09251-09008-000 Cap(Od:13.6)MT; 1997-11-01~2000-03-01 |
09251-09008-000 |
from US $5.61 |
||
|
11
|
11
09100-06150-000 BOLT(6X31)Bolt, adjuster MT; 1997-11-01~2000-03-01 |
09100-06150-000 |
from US $3.15 |
||
|
12
|
12
08310-00063-000
Nut
MT; 1997-11-01~2000-03-01 |
08310-00063-000 |
— | ||
| replacements | |||||
|
12
|
12
08310-0006B-000 NUTNut gear shift link rod MT; 1997-11-01~2000-03-01 |
08310-0006B-000 |
from US $0.76 |
||
|
12
|
12
08310-0006A-000 NUTMT; 1997-11-01~2000-03-01 |
08310-0006A-000 |
from US $0.76 |
||
|
13
|
13
49610-65D00-000
PEDAL,BRAKE
MT; 1997-11-01~2000-03-01 |
49610-65D00-000 |
— | ||
|
14
|
14
49751-79001-000
Pad, pedal
MT; 1997-11-01~2000-03-01 |
49751-79001-000 |
— | ||
| replacement | |||||
|
14
|
14
49751-58J00-000 PAD,PEDALMT; 1997-11-01~2000-03-01 |
49751-58J00-000 |
US $4.48 |
||
|
15
|
15
09100-10056-000 BOLT(10X160)MT; 1997-11-01~2000-03-01 |
09100-10056-000 |
from US $10.33 |
||
|
16
|
16
09307-13005-000 BUSHBushing MT; 1997-11-01~2000-03-01 |
09307-13005-000 |
US $2.72 |
||
|
17
|
17
09180-10121-000 SPACER(10.1X13X73.8)MT; 1997-11-01~2000-03-01 |
09180-10121-000 |
US $30.20 |
||
|
18
|
18
49691-65D00-000 SPRING,BRAKE PEDALMT; 1997-11-01~2000-03-01 |
49691-65D00-000 |
US $7.03 |
||
|
19
|
19
08316-20103-000
Nut
MT; 1997-11-01~2000-03-01 |
08316-20103-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-2010B-000 NUTMT; 1997-11-01~2000-03-01 |
08316-2010B-000 |
from US $0.76 |
||
|
20
|
20
49810-65D00-000
ペダル,クラッチ
MT; 1997-11-01~2000-03-01 |
49810-65D00-000 |
— | ||
| replacement | |||||
|
20
|
20
49810-65D31-000 PEDAL,CLUTCHMT; 1997-11-01~2000-03-01 |
49810-65D31-000 |
US $67.71 |
||
|
21
|
21
49751-79001-000
Pad, pedal
MT; 1997-11-01~2000-03-01 |
49751-79001-000 |
— | ||
| replacement | |||||
|
21
|
21
49751-58J00-000 PAD,PEDALMT; 1997-11-01~2000-03-01 |
49751-58J00-000 |
US $4.48 |
||
|
22
|
22
49893-65D00-000 BUSH,SPRING PEDAL SIDEMT; 1997-11-01~2000-03-01 |
49893-65D00-000 |
US $4.05 |
||
|
23
|
23
49831-65D00-000 ARM,CL RETURN SPRINGMT; 1997-11-01~2000-03-01 |
49831-65D00-000 |
US $6.92 |
||
|
24
|
24
49891-65D00-000 SPRING,CLUTCH PEDAL RETURNMT; 1997-11-01~2000-03-01 |
49891-65D00-000 |
US $7.03 |
||
|
25
|
25
49894-65D00-000 BUSH,SPRING BRACKET SIDEMT; 1997-11-01~2000-03-01 |
49894-65D00-000 |
US $2.74 |
||
|
26
|
26
08332-11056-000
E ring
MT; 1997-11-01~2000-03-01 |
08332-11056-000 |
— | ||
| replacement | |||||
|
26
|
26
08332-1105A-000 E RINGMT; 1997-11-01~2000-03-01 |
08332-1105A-000 |
from US $0.91 |
||
|
27
|
27
49892-65D00-000 TUBE,CL PEDAL RETURN SPRINGMT; 1997-11-01~2000-03-01 |
49892-65D00-000 |
US $4.05 |
||
|
28
|
28
09180-10121-000 SPACER(10.1X13X73.8)MT; 1997-11-01~2000-03-01 |
09180-10121-000 |
US $30.20 |
||
|
29
|
29
09307-08002-000 BUSHMT; 1997-11-01~2000-03-01 |
09307-08002-000 |
US $1.60 |
||
|
30
|
30
09321-06026-000 CUSHIONMT; 1997-11-01~2000-03-01 |
09321-06026-000 |
from US $1.60 |
||
|
31
|
31
09100-06088-000 BOLT(6X30)MT; 1997-11-01~2000-03-01 |
09100-06088-000 |
US $22.40 |
||
|
32
|
32
09307-13005-000 BUSHBushing MT; 1997-11-01~2000-03-01 |
09307-13005-000 |
US $2.72 |
||
|
33
|
33
08310-00063-000
Nut
MT; 1997-11-01~2000-03-01 |
08310-00063-000 |
— | ||
| replacements | |||||
|
33
|
33
08310-0006B-000 NUTNut gear shift link rod MT; 1997-11-01~2000-03-01 |
08310-0006B-000 |
from US $0.76 |
||
|
33
|
33
08310-0006A-000 NUTMT; 1997-11-01~2000-03-01 |
08310-0006A-000 |
from US $0.76 |
||
|
34
|
34
08322-01103-000
Washer
MT; 1997-11-01~2000-03-01 |
08322-01103-000 |
— | ||
| replacements | |||||
|
34
|
34
08322-0110B-000 WASHERWasher, knuckle end MT; 1997-11-01~2000-03-01 |
08322-0110B-000 |
from US $0.76 |
||
|
34
|
34
08322-0110A-000 WASHERWasher, knuckle end MT; 1997-11-01~2000-03-01 |
08322-0110A-000 |
from US $0.80 |
||
|
35
|
35
49710-65D00-000
ブラケット,ペダル
MT; 1997-11-01~2000-03-01 |
49710-65D00-000 |
— | ||
| replacement | |||||
|
35
|
35
49710-52D30-000 BRACKET,PEDALMT; 1997-11-01~2000-03-01 |
49710-52D30-000 |
US $93.84 |
||
|
36
|
36
01550-08163-000
Bolt, holder
MT; 1997-11-01~2000-03-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
36
|
36
01550-0816B-000 BOLTMT; 1997-11-01~2000-03-01 |
01550-0816B-000 |
from US $0.91 |
||
|
36
|
36
01550-0816A-000 BOLTBolt, rear MT; 1997-11-01~2000-03-01 |
01550-0816A-000 |
from US $0.91 |
||
