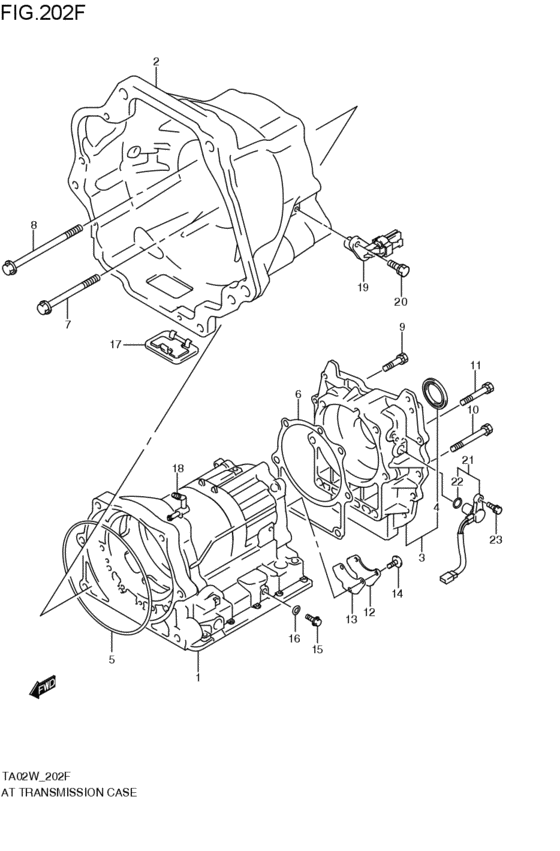

at - transmission case (AT; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- G16A
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24712-57X50-000
ケース,トランスミッション
AT; 1997-11-01~2000-03-01 |
24712-57X50-000 |
— | ||
| replacement | |||||
|
1
|
1
24712-65DV0-000 CASE,T/MAT; 1997-11-01~2000-03-01 |
24712-65DV0-000 |
US $1,723.44 |
||
|
2
|
2
24711-65D10-000
HOUSING,TORQUE CONVERTER
AT:(G16A,J20A); 1997-11-01~2000-03-01 |
24711-65D10-000 |
— | ||
|
3
|
3
24710-57B01-000 CASE ASSY,ADAPTORAT; 1997-11-01~2000-03-01 |
24710-57B01-000 |
US $929.28 |
||
|
4
|
4
29792-57B01-000 SEAL,OIL ADAPTOR CASEAT; 1997-11-01~2000-03-01 |
29792-57B01-000 |
US $26.40 |
||
|
5
|
5
29736-57B00-000 O-RING,HSG T/M CASEAT; 1997-11-01~2000-03-01 |
29736-57B00-000 |
US $23.18 |
||
|
6
|
6
24784-57B00-000 GASKET,ADAPTOR T/M CASEAT; 1997-11-01~2000-03-01 |
24784-57B00-000 |
US $23.20 |
||
|
7
|
7
29995-57B00-000 BOLT,HSG&CASE NO.2AT; 1997-11-01~2000-03-01 |
29995-57B00-000 |
US $15.46 |
||
|
8
|
8
29996-57B00-000 BOLT,HSG&CASE NO.1AT; 1997-11-01~2000-03-01 |
29996-57B00-000 |
US $13.98 |
||
|
9
|
9
01570-10453-000
Bolt, upper bracket
AT; 1997-11-01~2000-03-01 |
01570-10453-000 |
— | ||
| replacement | |||||
|
9
|
9
01570-1045A-000 BoltAT; 1997-11-01~2000-03-01 |
01570-1045A-000 |
US $19.50 |
||
|
10
|
10
29972-57B00-000 BOLT,ADAPTOR&T/M CASE NO.3AT; 1997-11-01~2000-03-01 |
29972-57B00-000 |
US $16.34 |
||
|
11
|
11
29991-57B00-000
BOLT,ADAPTOR&T/M CASE NO.2
AT; 1997-11-01~2000-03-01 |
29991-57B00-000 |
— | ||
|
12
|
12
24761-57B00-000 COVER,PLATEAT; 1997-11-01~2000-03-01 |
24761-57B00-000 |
US $12.51 |
||
|
13
|
13
24783-57B00-000 GASKET,OIL GALLERY COVERAT; 1997-11-01~2000-03-01 |
24783-57B00-000 |
US $5.85 |
||
|
14
|
14
29994-57B00-000 SCREW,OIL GALLERY COVERAT; 1997-11-01~2000-03-01 |
29994-57B00-000 |
US $6.18 |
||
|
15
|
15
29849-57B00-000 PLUG,T/M CASEAT; 1997-11-01~2000-03-01 |
29849-57B00-000 |
US $5.89 |
||
|
16
|
16
29738-57B00-000 O-RINGAT; 1997-11-01~2000-03-01 |
29738-57B00-000 |
US $2.40 |
||
|
17
|
17
22641-61A01-000 CAP,T/C,HOUSINGAT; 1997-11-01~2000-03-01 |
22641-61A01-000 |
US $11.04 |
||
|
18
|
18
24772-57B00-000 ADAPTER,BREATHERAT; 1997-11-01~2000-03-01 |
24772-57B00-000 |
US $14.29 |
||
|
19
|
19
26141-65D10-000
センサ,インプットスピード
AT:G16A; 1997-11-01~2000-03-01 |
26141-65D10-000 |
— | ||
| replacement | |||||
|
19
|
19
26141-65D00-000 SENSOR,INPUT SPEEDAT:G16A; 1997-11-01~2000-03-01 |
26141-65D00-000 |
US $129.20 |
||
|
20
|
20
26599-65D10-000 BOLT,INPUT SPEED SENSORAT; 1997-11-01~2000-03-01 |
26599-65D10-000 |
US $2.39 |
||
|
21
|
21
24791-57B00-000 SENSOR,SPEEDAT; 1997-11-01~2000-03-01 |
24791-57B00-000 |
US $342.16 |
||
|
22
|
22
29725-57B00-000 O-RING,SPEED SENSORAT; 1997-11-01~2000-03-01 |
29725-57B00-000 |
US $8.10 |
||
|
23
|
23
29989-57B00-000 BoltAT; 1997-11-01~2000-03-01 |
29989-57B00-000 |
US $5.59 |
||
