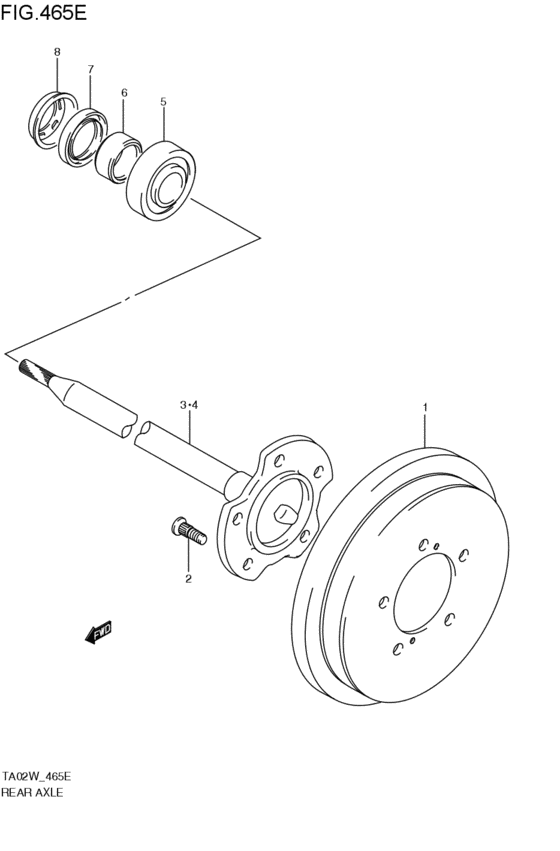

rear axle (1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- G16A
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43511-65D00-000
DRUM,RR BRAKE
1997-11-01~1999-06-01 |
43511-65D00-000 |
— | ||
|
1
|
1
43511-65D10-000 DRUM,RR BRAKE1999-06-01~2000-03-01 |
43511-65D10-000 |
US $324.80 |
||
|
2
|
2
09119-12012-000 BOLT(12X38)1997-11-01~2000-03-01 |
09119-12012-000 |
US $2.72 |
||
|
3
|
3
44211-65D10-000
シャフト,リヤアクスル,ライト
AT; 1997-11-01~1999-06-01 |
44211-65D10-000 |
— | ||
| replacement | |||||
|
3
|
3
44210-65DV2-000
SHAFT ASSY,REAR AXLE,R
AT; 1997-11-01~1999-06-01 |
44210-65DV2-000 |
— | ||
|
3
|
3
44211-65D11-000
シャフト,リヤアクスル,ライト
AT; 1999-06-01~2000-03-01 |
44211-65D11-000 |
— | ||
| replacement | |||||
|
3
|
3
44210-65820-000 SHAFT SET,REAR AXLE,RAT; 1999-06-01~2000-03-01 |
44210-65820-000 |
US $414.40 |
||
|
4
|
4
44221-65D10-000
シャフト,リヤアクスル,レフト
AT; 1997-11-01~1999-06-01 |
44221-65D10-000 |
— | ||
| replacement | |||||
|
4
|
4
44220-65DV2-000
SHAFT ASSY,REAR AXLE,L
AT; 1997-11-01~1999-06-01 |
44220-65DV2-000 |
— | ||
|
4
|
4
44221-65D11-000
シャフト,リヤアクスル,レフト
AT; 1999-06-01~2000-03-01 |
44221-65D11-000 |
— | ||
| replacement | |||||
|
4
|
4
44220-65820-000 SHAFT SET,REAR AXLE,LAT; 1999-06-01~2000-03-01 |
44220-65820-000 |
US $362.48 |
||
|
5
|
5
43591-65D00-000 BEARING,RR WHEEL1997-11-01~2000-03-01 |
43591-65D00-000 |
US $116 |
||
|
6
|
6
43485-65D00-000 RING,RR WHEEL BRG RETAINER1997-11-01~2000-03-01 |
43485-65D00-000 |
US $28.12 |
||
|
6
|
6
43485-65D50-000 RING,RR WHEEL BRG RETAINER1997-11-01~2000-03-01 |
43485-65D50-000 |
US $68 |
||
|
7
|
7
43592-65D00-000 SEAL,RR SHAFT OIL INNER1997-11-01~2000-03-01 |
43592-65D00-000 |
US $21.28 |
||
|
8
|
8
43588-65D00-000 PROTECTOR,OIL SEAL1997-11-01~2000-03-01 |
43588-65D00-000 |
US $1.92 |
||
