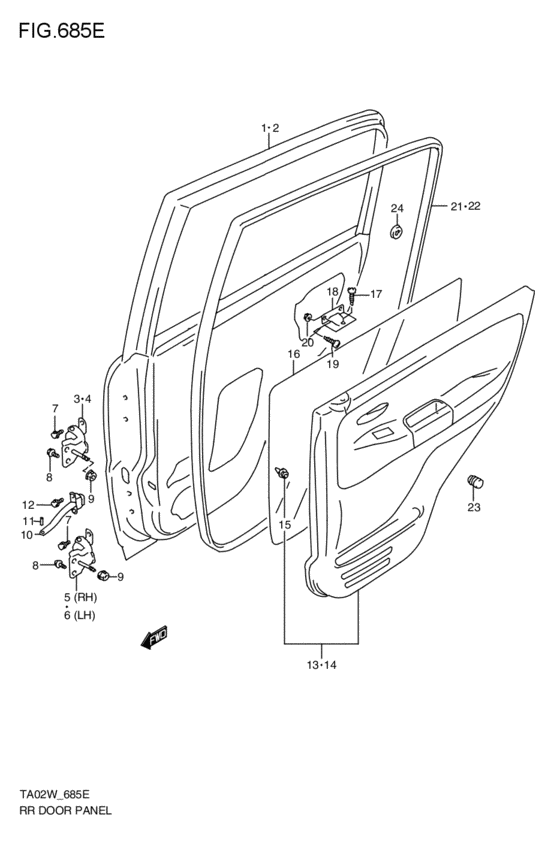

rear door panel (5DR; 1997-11-01~) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- G16A
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68003-65D11-000
PANEL ASSY,REAR DOOR,R
5DR:((G16A,J20A):NORMAL); 1997-11-01~ |
68003-65D11-000 |
— | ||
|
2
|
2
68004-65D11-000
PANEL ASSY,REAR DOOR,L
5DR:((G16A,J20A):NORMAL); 1997-11-01~ |
68004-65D11-000 |
— | ||
|
3
|
3
69410-65D00-000
ヒンジ,リヤドアアッパ,ライト
5DR; 1997-11-01~ |
69410-65D00-000 |
— | ||
| replacement | |||||
|
3
|
3
69410-65D0V-000 HINGE,RR DOOR UPR,R5DR; 1997-11-01~ |
69410-65D0V-000 |
US $44.16 |
||
|
4
|
4
69420-65D00-000
ヒンジ,リヤドアアッパ,レフト
5DR; 1997-11-01~ |
69420-65D00-000 |
— | ||
| replacement | |||||
|
4
|
4
69420-65D0V-000 HINGE,RR DOOR UPR,L5DR; 1997-11-01~ |
69420-65D0V-000 |
US $44.16 |
||
|
5
|
5
69430-65D00-000 HINGE,RR DOOR NO.1ロアライト; 5DR; 1997-11-01~ |
69430-65D00-000 |
US $33.30 |
||
|
6
|
6
69440-65D00-000 HINGE,RR DOOR NO.2ロアレフト; 5DR; 1997-11-01~ |
69440-65D00-000 |
US $33.30 |
||
|
7
|
7
01550-08203-000
Bolt
5DR; 1997-11-01~ |
01550-08203-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0820B-000 Bolt5DR; 1997-11-01~ |
01550-0820B-000 |
from US $0.91 |
||
|
7
|
7
01550-0820A-000 BOLTBolt, funnel bracket 5DR; 1997-11-01~ |
01550-0820A-000 |
from US $0.96 |
||
|
8
|
8
09118-08156-000 BOLT(8X25)5DR; 1997-11-01~ |
09118-08156-000 |
US $19.50 |
||
|
9
|
9
08361-25083-000
Nut
5DR; 1997-11-01~ |
08361-25083-000 |
— | ||
| replacement | |||||
|
9
|
9
08361-2508A-000 NUT5DR; 1997-11-01~ |
08361-2508A-000 |
from US $0.80 |
||
|
10
|
10
81830-65D00-000 STOP,REAR DOOR OPEN5DR; 1997-11-01~ |
81830-65D00-000 |
US $66.88 |
||
|
11
|
11
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY5DR; 1997-11-01~ |
81831-70B00-000 |
US $1.60 |
||
|
12
|
12
01580-06203-000
Bolt
5DR; 1997-11-01~ |
01580-06203-000 |
— | ||
| replacement | |||||
|
12
|
12
01580-0620B-000 BOLT5DR; 1997-11-01~ |
01580-0620B-000 |
from US $4.49 |
||
|
13
|
13
83703-65DC1-K4T
トリムアッシ,リヤドア,ライト(グレー/ベージュ)
ベ-ジュ/グレ-; 5DR:NORMAL; 1997-11-01~ |
83703-65DC1-K4T |
— | ||
| replacements | |||||
|
13
|
13
09409-08320-000 CLIPベ-ジュ/グレ-; 5DR:NORMAL; 1997-11-01~ |
09409-08320-000 |
from US $1.15 |
||
|
13
|
13
83730-65DC2-K4T
TRIM,REAR DOOR,R
ベ-ジュ/グレ-; 5DR:NORMAL; 1997-11-01~ |
83730-65DC2-K4T |
— | ||
|
14
|
14
83704-65DC1-K4T
トリムアッシ,リヤドア,レフト(グレー/ベージュ)
ベ-ジュ/グレ-; 5DR:NORMAL; 1997-11-01~ |
83704-65DC1-K4T |
— | ||
| replacements | |||||
|
14
|
14
09409-08320-000 CLIPベ-ジュ/グレ-; 5DR:NORMAL; 1997-11-01~ |
09409-08320-000 |
from US $1.15 |
||
|
14
|
14
83740-65DC2-K4T
TRIM,REAR DOOR,L
ベ-ジュ/グレ-; 5DR:NORMAL; 1997-11-01~ |
83740-65DC2-K4T |
— | ||
|
15
|
15
09409-08320-000 CLIP5DR; 1997-11-01~ |
09409-08320-000 |
from US $1.15 |
||
|
16
|
16
83911-60X51-000
Cover, door sealing (600x1200)
5DR; 1997-11-01~ |
83911-60X51-000 |
— | ||
| replacement | |||||
|
16
|
16
83911-60X52-000 COVER,DR SEALING5DR; 1997-11-01~ |
83911-60X52-000 |
US $6.06 |
||
|
17
|
17
03142-04163-000
Screw
5DR; 1997-11-01~ |
03142-04163-000 |
— | ||
| replacement | |||||
|
17
|
17
03141-0416A-000 SCREW5DR; 1997-11-01~ |
03141-0416A-000 |
from US $0.80 |
||
|
18
|
18
84482-65D00-000 BRACKET,DR INSIDE PULL HANDLE5DR; 1997-11-01~ |
84482-65D00-000 |
US $4.16 |
||
|
19
|
19
03242-06163-000
Screw
5DR; 1997-11-01~ |
03242-06163-000 |
— | ||
| replacement | |||||
|
19
|
19
03241-0616C-000 SCREW5DR; 1997-11-01~ |
03241-0616C-000 |
from US $0.76 |
||
|
20
|
20
09148-06007-000 NUT5DR; 1997-11-01~ |
09148-06007-000 |
from US $0.86 |
||
|
21
|
21
84661-65D00-000 WEATHERSTRIP,RR DR OPNG,R5DR; 1997-11-01~ |
84661-65D00-000 |
US $137.60 |
||
|
22
|
22
84671-65D00-000 WEATHERSTRIP,RR DR OPNG,L5DR; 1997-11-01~ |
84671-65D00-000 |
US $137.60 |
||
|
23
|
23
82711-56B00-000 STOPPER,FR DOORStopper, fr dr lower 5DR; 1997-11-01~ |
82711-56B00-000 |
US $2.88 |
||
|
24
|
24
09250-20015-000 CAP(OD:28.5)Cap, air con harness 5DR; 1997-11-01~ |
09250-20015-000 |
from US $0.79 |
||
