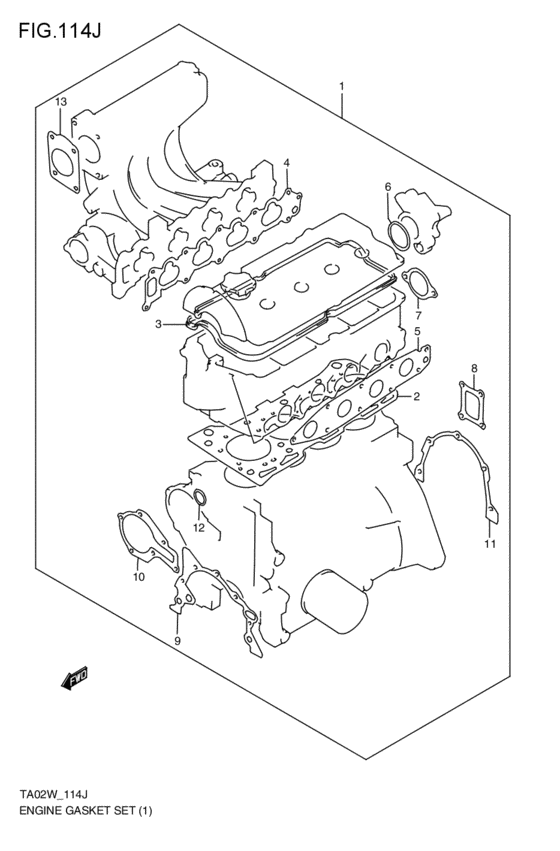

engine gasket set (G16A; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- G16A
- transmission
- MT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11400-65850-000
ガスケットセット,エンジン
G16A; 1997-11-01~2000-03-01 |
11400-65850-000 |
— | ||
| replacement | |||||
|
1
|
1
11400-65851-000 GASKET SET,ENGINEG16A; 1997-11-01~2000-03-01 |
11400-65851-000 |
US $193.60 |
||
|
2
|
2
11141-71C00-000 GASKET,CYL HEADG16A; 1997-11-01~2000-03-01 |
11141-71C00-000 |
US $115.52 |
||
|
3
|
3
11189-71C00-000 GASKET,CYL HEAD COVERGasket, cylinder head cover G16A; 1997-11-01~2000-03-01 |
11189-71C00-000 |
US $21.60 |
||
|
4
|
4
13119-57B00-000 GASKET,INTK MANFGasket, intake manifold G16A; 1997-11-01~2000-03-01 |
13119-57B00-000 |
US $15.52 |
||
|
5
|
5
14140-52G00-000 Gasket, exhaust manifoldG16A; 1997-11-01~2000-03-01 |
14140-52G00-000 |
US $26.40 |
||
|
6
|
6
11162-71C10-000 O-RING,CASEO ring, dli sensor case G16A; 1997-11-01~2000-03-01 |
11162-71C10-000 |
US $2.24 |
||
|
7
|
7
17699-60B02-000 GASKET,THERMO CASEG16A; 1997-11-01~2000-03-01 |
17699-60B02-000 |
US $5.92 |
||
|
8
|
8
11229-60A00-000 GASKET,CYL BLOCK PLATEG16A; 1997-11-01~2000-03-01 |
11229-60A00-000 |
US $13.44 |
||
|
9
|
9
16119-60A04-000
Gasket
G16A; 1997-11-01~2000-03-01 |
16119-60A04-000 |
— | ||
| replacement | |||||
|
9
|
9
16119-60A05-000 GASKET,OIL PUMPG16A; 1997-11-01~2000-03-01 |
16119-60A05-000 |
US $16.80 |
||
|
10
|
10
17431-60A00-000 GASKET,WATER PUMPG16A; 1997-11-01~2000-03-01 |
17431-60A00-000 |
US $4.64 |
||
|
11
|
11
11349-60A01-000 GASKET,OIL SEAL HSGGasket, oil seal housing G16A; 1997-11-01~2000-03-01 |
11349-60A01-000 |
US $19.20 |
||
|
12
|
12
09280-28008-000 O RING(D:3.5,ID:27.7)G16A; 1997-11-01~2000-03-01 |
09280-28008-000 |
US $1.28 |
||
|
13
|
13
13421-65D00-000 GASKET,THROTTLE BODYG16A; 1997-11-01~2000-03-01 |
13421-65D00-000 |
US $6.56 |
||
