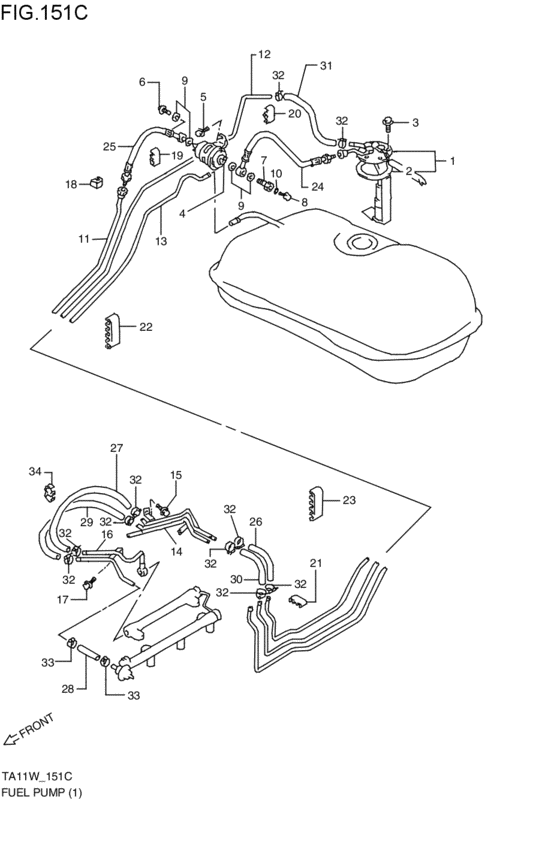

Fuel Pump (V6エンジン; H20A; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- H20A
- transmission
- 4AT
- Number of doors
- 4DR
- grade
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-77E00-000 PUMP ASSY,FUELH20A; 1994-11-01~ |
15100-77E00-000 |
US $725.12 |
||
|
2
|
2
15111-56F00-000 GASKET,FUEL PUMPH20A; 1994-11-01~ |
15111-56F00-000 |
US $85.33 |
||
|
3
|
3
09136-05045-000 SCREW(5X10)H20A; 1994-11-01~ |
09136-05045-000 |
US $0.96 |
||
|
4
|
4
15410-61A00-000 FILTER,FUELH20A; 1994-11-01~ |
15410-61A00-000 |
from US $33.71 |
||
|
5
|
5
01550-06123-000
Bolt
H20A; 1994-11-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0612B-000 BOLTBolt, clamp H20A; 1994-11-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
5
|
5
01550-0612A-000 BOLTH20A; 1994-11-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
6
|
6
09360-12008-000 UNIONH20A; 1994-11-01~ |
09360-12008-000 |
from US $5.60 |
||
|
7
|
7
13923-85551-000 BOLT,UNION FUEL FILTERBolt H20A; 1994-11-01~ |
13923-85551-000 |
US $15.52 |
||
|
8
|
8
17568-50F00-000 UNION BOLT,AIR VENTBolt, thermostat cover H20A; 1994-11-01~ |
17568-50F00-000 |
from US $2.08 |
||
|
9
|
9
13925-85553-000 GASKET,UNION BOLTGasket H20A; 1994-11-01~ |
13925-85553-000 |
from US $1.60 |
||
|
10
|
10
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) H20A; 1994-11-01~ |
09168-06023-000 |
from US $1.51 |
||
|
11
|
11
15820-77E02-000 PIPE,FUEL FILTER OUTLETフィルタアウトレット; H20A:4DR; 1994-11-01~ |
15820-77E02-000 |
US $68.82 |
||
|
12
|
12
15861-77E00-000 PIPE,FUEL RTNH20A:4DR; 1994-11-01~ |
15861-77E00-000 |
US $51.15 |
||
|
13
|
13
89430-77E00-000 PIPE,EVAPORATION MAINH20A:4DR; 1994-11-01~ |
89430-77E00-000 |
US $50.05 |
||
|
14
|
14
15870-77E00-000
パイプ,フューエル(ボディサイド)
ボデ-サイド; H20A; 1994-11-01~ |
15870-77E00-000 |
— | ||
| replacements | |||||
|
14
|
14
02162-0616B-000 SCREWBolt, adjust ボデ-サイド; H20A; 1994-11-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
14
|
14
09169-06065-000 WASHERSpacer ボデ-サイド; H20A; 1994-11-01~ |
09169-06065-000 |
from US $1.76 |
||
|
14
|
14
09320-08021-000
CUSHION
ボデ-サイド; H20A; 1994-11-01~ |
09320-08021-000 |
— | ||
|
14
|
14
15870-77E01-000
Pipe,fuel (body side)
ボデ-サイド; H20A; 1994-11-01~ |
15870-77E01-000 |
— | ||
|
14
|
14
02162-06163-000
Screw
ボデ-サイド; H20A; 1994-11-01~ |
02162-06163-000 |
— | ||
|
14
|
14
09320-08510-000 Cushion(8.5X20X8)ボデ-サイド; H20A; 1994-11-01~ |
09320-08510-000 |
from US $1.82 |
||
|
15
|
15
01550-06103-000
Bolt, front
H20A; 1994-11-01~ |
01550-06103-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0610B-000 BoltBolt H20A; 1994-11-01~ |
01550-0610B-000 |
from US $0.80 |
||
|
15
|
15
01550-0610A-000 BOLTH20A; 1994-11-01~ |
01550-0610A-000 |
from US $0.80 |
||
|
16
|
16
15850-77E01-000
Pipe,fuel rtn(eng side)
エンジンサイド; H20A; 1994-11-01~ |
15850-77E01-000 |
— | ||
|
17
|
17
01550-06123-000
Bolt
H20A; 1994-11-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0612B-000 BOLTBolt, clamp H20A; 1994-11-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
17
|
17
01550-0612A-000 BOLTH20A; 1994-11-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
18
|
18
15893-67B00-000 CLAMP,FUEL PIPEH20A; 1994-11-01~ |
15893-67B00-000 |
US $1.76 |
||
|
19
|
19
15892-60A00-000
クランプ,フューエルパイプ
H20A:4DR; 1994-11-01~ |
15892-60A00-000 |
— | ||
| replacement | |||||
|
19
|
19
15892-60A11-000 CLAMP,FUEL PIPEH20A:4DR; 1994-11-01~ |
15892-60A11-000 |
US $1.60 |
||
|
20
|
20
15893-56B00-000 CLAMP,FUEL PIPEH20A:4DR; 1994-11-01~ |
15893-56B00-000 |
US $2.43 |
||
|
21
|
21
15893-60A11-000 CLAMP,FUEL PIPEH20A; 1994-11-01~ |
15893-60A11-000 |
US $2.24 |
||
|
22
|
22
15895-56B00-000
クランプ,フューエルパイプ
H20A:4DR; 1994-11-01~ |
15895-56B00-000 |
— | ||
| replacement | |||||
|
22
|
22
15895-56B11-000 CLAMP,FUEL PIPEH20A:4DR; 1994-11-01~ |
15895-56B11-000 |
US $2.29 |
||
|
23
|
23
15895-60A11-000 CLAMP,FUEL PIPEH20A; 1994-11-01~ |
15895-60A11-000 |
US $2.56 |
||
|
24
|
24
15810-57B00-000 HOSE,FUEL FILTER INLETH20A; 1995-03-01~ |
15810-57B00-000 |
US $237.12 |
||
|
24
|
24
15810-58B00-000
HOSE,FUEL FILTER INLET
H20A; 1994-11-01~1995-03-01 |
15810-58B00-000 |
— | ||
|
25
|
25
15840-61A01-000 HOSE,FUEL FILTER OUTLETH20A; 1994-11-01~ |
15840-61A01-000 |
US $209.60 |
||
|
26
|
26
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600>130; H20A; 1994-11-01~ |
09356-75147-600 |
US $51.68 |
||
|
27
|
27
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600>270; H20A; 1994-11-01~ |
09356-75147-600 |
US $51.68 |
||
|
28
|
28
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600>100; H20A; 1994-11-01~ |
09356-55117-600 |
US $69.60 |
||
|
29
|
29
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600>280; H20A; 1994-11-01~ |
09356-55117-600 |
US $69.60 |
||
|
30
|
30
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600>170; H20A; 1994-11-01~ |
09356-55117-600 |
US $69.60 |
||
|
31
|
31
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600>410; H20A; 1994-11-01~ |
09356-55117-600 |
US $69.60 |
||
|
32
|
32
09402-15511-000
New Genuine Part
H20A; 1994-11-01~ |
09402-15511-000 |
— | ||
| replacement | |||||
|
32
|
32
09402-17511-000 CLAMPH20A; 1994-11-01~ |
09402-17511-000 |
US $52.60 |
||
|
33
|
33
09401-11411-000 CLIPH20A; 1994-11-01~ |
09401-11411-000 |
from US $6.38 |
||
|
34
|
34
09408-00121-000 CLAMPH20A; 1994-11-01~ |
09408-00121-000 |
US $1.52 |
||
