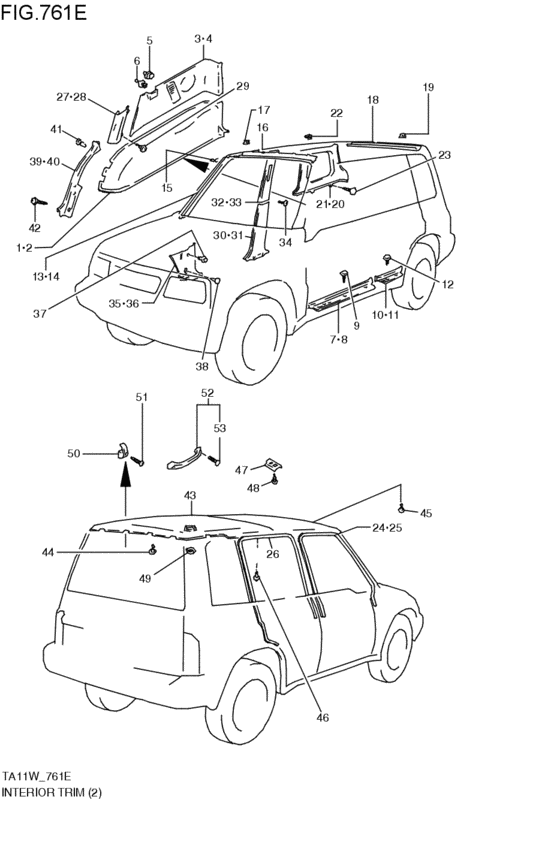

i trim interior (4ドア:インテリア トリム,ルーフヘッドライニング,ウエザストリップ; 4DR; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- H20A
- transmission
- 4AT
- Number of doors
- 4DR
- grade
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75140-56B00-5FE
TRIM,RR WHEEL HSG,R
ブラック; 4DR; 1994-11-01~ |
75140-56B00-5FE |
— | ||
|
2
|
2
75150-56B00-5FE
TRIM,RR WHEEL HSG,L
ブラック; 4DR; 1994-11-01~ |
75150-56B00-5FE |
— | ||
|
3
|
3
76111-56B00-5ES
トリム,リヤクォータロア,ライト(ブラック)
ブラック; 4DR; 1994-11-01~ |
76111-56B00-5ES |
— | ||
| replacement | |||||
|
3
|
3
76111-56B10-5ES
TRIM,RR QTR LOWER,R (BLACK)
ブラック; 4DR; 1994-11-01~ |
76111-56B10-5ES |
— | ||
|
4
|
4
76121-56B00-5ES
トリム,リヤクォータロア,レフト(ブラック)
ブラック; 4DR; 1994-11-01~ |
76121-56B00-5ES |
— | ||
| replacement | |||||
|
4
|
4
76121-56B10-5ES TRIM,RR QTR LOWER,L (BLACK)ブラック; 4DR; 1994-11-01~ |
76121-56B10-5ES |
US $127.68 |
||
|
5
|
5
09409-08310-000 CLIP4DR; 1994-11-01~ |
09409-08310-000 |
US $1.76 |
||
|
6
|
6
09409-08322-000 CLIP4DR; 1994-11-01~ |
09409-08322-000 |
from US $1.15 |
||
|
7
|
7
76131-56B00-5ES SCUFF,SIDE SILL FRONT,Rブラック; 4DR; 1994-11-01~ |
76131-56B00-5ES |
US $46 |
||
|
8
|
8
76141-56B00-5ES
SCUFF,SIDE SILL FRONT,L
ブラック; 4DR; 1994-11-01~ |
76141-56B00-5ES |
— | ||
|
9
|
9
03541-04123-000
Screw
4DR; 1994-11-01~ |
03541-04123-000 |
— | ||
| replacements | |||||
|
9
|
9
03541-0412B-000 SCREWScrew, plate 4DR; 1994-11-01~ |
03541-0412B-000 |
from US $0.80 |
||
|
9
|
9
03541-0412A-000 SCREWScrew, speedometer 4DR; 1994-11-01~ |
03541-0412A-000 |
from US $0.80 |
||
|
10
|
10
76152-56B00-5ES SCUFF,SIDE SILL RR,Rブラック; 4DR; 1994-11-01~ |
76152-56B00-5ES |
US $20.24 |
||
|
11
|
11
76153-56B00-5ES
SCUFF,SIDE SILL RR,L
ブラック; 4DR; 1994-11-01~ |
76153-56B00-5ES |
— | ||
|
12
|
12
03541-04123-000
Screw
4DR; 1994-11-01~ |
03541-04123-000 |
— | ||
| replacements | |||||
|
12
|
12
03541-0412B-000 SCREWScrew, plate 4DR; 1994-11-01~ |
03541-0412B-000 |
from US $0.80 |
||
|
12
|
12
03541-0412A-000 SCREWScrew, speedometer 4DR; 1994-11-01~ |
03541-0412A-000 |
from US $0.80 |
||
|
13
|
13
76171-56B01-5ES TRIM,FR PILLAR UPPER,Rブラック; 4DR:(X,XG,XD,SF5); 1994-11-01~ |
76171-56B01-5ES |
US $33.12 |
||
|
14
|
14
76181-56B01-5ES TRIM,FR PILLAR UPPER,Lブラック; 4DR:(X,XG,XD,SF5); 1994-11-01~ |
76181-56B01-5ES |
US $29.99 |
||
|
15
|
15
76281-60A30-000 CLIP,FR PILLAR INR4DR; 1994-11-01~ |
76281-60A30-000 |
US $1.73 |
||
|
16
|
16
76191-56B00-5ES TRIM,ROOF FRONT JOINTブラック; 4DR:(X,XG,XD,SF5); 1994-11-01~ |
76191-56B00-5ES |
US $40.48 |
||
|
17
|
17
76281-60A30-000 CLIP,FR PILLAR INR4DR; 1994-11-01~ |
76281-60A30-000 |
US $1.73 |
||
|
18
|
18
76211-56B00-5ES
TRIM,ROOF BACK JOINT
ブラック; 4DR:(X,XG,XD,SF5); 1994-11-01~ |
76211-56B00-5ES |
— | ||
|
19
|
19
76281-60A30-000 CLIP,FR PILLAR INR4DR; 1994-11-01~ |
76281-60A30-000 |
US $1.73 |
||
|
20
|
20
76221-56B00-5ES
TRIM,RR QTR UPPER,R
ブラック; 4DR:(X,XG,XD,SF5); 1994-11-01~ |
76221-56B00-5ES |
— | ||
|
21
|
21
76231-56B00-5ES
TRIM,RR QTR UPPER,L
ブラック; 4DR:(X,XD,XG,SF5); 1994-11-01~ |
76231-56B00-5ES |
— | ||
|
22
|
22
76281-60A30-000 CLIP,FR PILLAR INR4DR; 1994-11-01~ |
76281-60A30-000 |
US $1.73 |
||
|
23
|
23
03141-05123-000
Screw 5 x 12
4DR; 1994-11-01~ |
03141-05123-000 |
— | ||
| replacement | |||||
|
23
|
23
03141-0512A-000 SCREWScrew, belt cooling duct 4DR; 1994-11-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
24
|
24
76241-77E00-5PK WEATHERSTRIP,FR DR INR,Rブラック; 4DR; 1994-11-01~ |
76241-77E00-5PK |
US $53.73 |
||
|
25
|
25
76246-77E00-5PK WEATHERSTRIP,FR DR INR,Lブラック; 4DR; 1994-11-01~ |
76246-77E00-5PK |
US $104.80 |
||
|
26
|
26
76240-60A10-5ES TRIM,FR DOOR OPENINGブラック,L:3877>1719; 4DR; 1994-11-01~ |
76240-60A10-5ES |
US $90.40 |
||
|
27
|
27
76251-56B00-5ES
TRIM,RR QTR LOWER FR,R
ブラック; 4DR; 1994-11-01~ |
76251-56B00-5ES |
— | ||
|
28
|
28
76261-56B00-5ES
Trim,rr qtr lwr fr,l(black)
ブラック; 4DR; 1994-11-01~ |
76261-56B00-5ES |
— | ||
|
29
|
29
03141-05123-000
Screw 5 x 12
4DR; 1994-11-01~ |
03141-05123-000 |
— | ||
| replacement | |||||
|
29
|
29
03141-0512A-000 SCREWScrew, belt cooling duct 4DR; 1994-11-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
30
|
30
76311-56B00-5ES
TRIM,CTR PILLAR LWR,R
ブラック; 4DR; 1994-11-01~ |
76311-56B00-5ES |
— | ||
|
31
|
31
76321-56B00-5ES TRIM,CTR PILLAR LWR,Lブラック; 4DR; 1994-11-01~ |
76321-56B00-5ES |
US $69.55 |
||
|
32
|
32
76331-56B10-5ES
TRIM,CTR PILLAR UPR,R
ブラック; 4DR:(X,XG,XD,SF5); 1994-11-01~ |
76331-56B10-5ES |
— | ||
|
33
|
33
76341-56B10-5ES
Trim,center pillar upper,l
ブラック; 4DR:(X,XG,XD,SF5); 1994-11-01~ |
76341-56B10-5ES |
— | ||
|
34
|
34
03141-05123-000
Screw 5 x 12
4DR; 1994-11-01~ |
03141-05123-000 |
— | ||
| replacement | |||||
|
34
|
34
03141-0512A-000 SCREWScrew, belt cooling duct 4DR; 1994-11-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
35
|
35
76351-56B00-5ES TRIM,FR PILLAR LOWER,Rブラック; 4DR; 1994-11-01~ |
76351-56B00-5ES |
US $27.78 |
||
|
36
|
36
76361-56B00-5ES
TRIM,FR PILLAR LOWER,L
ブラック; 4DR; 1994-11-01~ |
76361-56B00-5ES |
— | ||
|
37
|
37
09409-07318-5ES CLIP(BLACK)ブラック; 4DR; 1994-11-01~ |
09409-07318-5ES |
US $23.60 |
||
|
38
|
38
09409-05309-5ES CLIP(BLACK)ブラック; 4DR; 1994-11-01~ |
09409-05309-5ES |
from US $1.04 |
||
|
39
|
39
76371-56B00-5ES SCUFF,RR WHEEL HSG FR,Rブラック; 4DR; 1994-11-01~ |
76371-56B00-5ES |
US $29.07 |
||
|
40
|
40
76381-56B00-5ES
Scuff,rr wheel hsg fr,l(black)
ブラック; 4DR; 1994-11-01~ |
76381-56B00-5ES |
— | ||
|
41
|
41
09409-10304-5ES CLIP(BLACK)ブラック; 4DR; 1994-11-01~ |
09409-10304-5ES |
US $1.28 |
||
|
42
|
42
03141-05303-000
スクリュ
4DR; 1994-11-01~ |
03141-05303-000 |
— | ||
| replacement | |||||
|
42
|
42
03142-0530B-000 SCREW4DR; 1994-11-01~ |
03142-0530B-000 |
US $15.10 |
||
|
43
|
43
78110-56B00-6NG
ヘッドライニングアッシ,ルーフ(グレー)
グレ-,ノ-マルル-フ; 4DR:(X,XG,XD,SF5); 1994-11-01~1996-02-01 |
78110-56B00-6NG |
— | ||
| replacements | |||||
|
43
|
43
78110-58B00-6NG
Head lining assy,roof(gray)
グレ-,ノ-マルル-フ; 4DR:(X,XG,XD,SF5); 1994-11-01~1996-02-01 |
78110-58B00-6NG |
— | ||
|
43
|
43
78131-56B00-6GS GARNISH,AIR OUTLETグレ-,ノ-マルル-フ; 4DR:(X,XG,XD,SF5); 1994-11-01~1996-02-01 |
78131-56B00-6GS |
US $5.04 |
||
|
43
|
43
78110-56B30-6NG
ヘッドライニングアッシ,ルーフ(グレー)
グレ-,サンル-フ; 4DR:X; 1994-11-01~1996-02-01 |
78110-56B30-6NG |
— | ||
| replacement | |||||
|
43
|
43
78131-56B00-6GS GARNISH,AIR OUTLETグレ-,サンル-フ; 4DR:X; 1994-11-01~1996-02-01 |
78131-56B00-6GS |
US $5.04 |
||
|
43
|
43
78110-56B31-6NG
ヘッドライニングアッシ,ルーフ(グレー)
グレー,サンルーフ; 4DR:X; 1996-02-01~ |
78110-56B31-6NG |
— | ||
|
43
|
43
78110-58B00-6NG
Head lining assy,roof(gray)
グレー,ノーマルルーフ; 4DR:(X,XG,XD,SA2); 1996-02-01~ |
78110-58B00-6NG |
— | ||
|
44
|
44
09409-06310-5EH CLIP(GRAY)グレ-,ノ-マルル-フ; 4DR:(X,XD,XG,SF5,SA2); 1994-11-01~ |
09409-06310-5EH |
US $17.30 |
||
|
45
|
45
09409-05309-5ES CLIP(BLACK)ブラック; 4DR; 1995-11-01~ |
09409-05309-5ES |
from US $1.04 |
||
|
46
|
46
09409-06319-000 CLIPサンル-フ; 4DR; 1994-11-01~ |
09409-06319-000 |
from US $1.67 |
||
|
47
|
47
78121-61A00-000 SPACER,ROOM LAMP4DR; 1994-11-01~ |
78121-61A00-000 |
US $3.53 |
||
|
48
|
48
03241-05123-000
Screw
4DR; 1994-11-01~ |
03241-05123-000 |
— | ||
| replacement | |||||
|
48
|
48
03241-0512A-000 SCREW4DR; 1994-11-01~ |
03241-0512A-000 |
from US $0.68 |
||
|
49
|
49
78131-56B00-5EH
Garnish,air outlet(gray)
グレー; 4DR; 1996-02-01~ |
78131-56B00-5EH |
— | ||
| replacement | |||||
|
49
|
49
78131-56B00-6GS GARNISH,AIR OUTLETグレー; 4DR; 1996-02-01~ |
78131-56B00-6GS |
US $5.04 |
||
|
50
|
50
84491-61A10-5ES
HOOK,COAT HANGER
ブラック; 4DR; 1994-11-01~ |
84491-61A10-5ES |
— | ||
| replacement | |||||
|
50
|
50
84491-61A10-5PK HOOK,LUGGAGE ROOMブラック; 4DR; 1994-11-01~ |
84491-61A10-5PK |
US $11.20 |
||
|
51
|
51
03111-06253-000
Screw
4DR; 1994-11-01~ |
03111-06253-000 |
— | ||
| replacement | |||||
|
51
|
51
03111-0625A-000 SCREW4DR; 1994-11-01~ |
03111-0625A-000 |
from US $0.80 |
||
|
52
|
52
76400-61831-5ES GRIP SET,ASSISTANTブラック; 4DR; 1994-11-01~ |
76400-61831-5ES |
US $35.20 |
||
|
53
|
53
09125-06041-000 SCREW(6X20)4DR; 1994-11-01~ |
09125-06041-000 |
US $1.76 |
||
