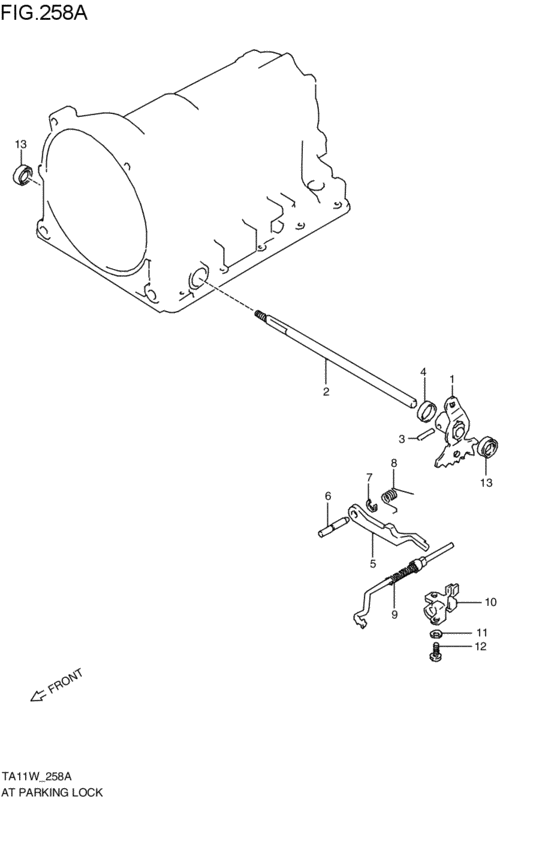

at - parking lock (4AT; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1994 - 1996
- Sales region
- Japan
- Engine
- H20A
- transmission
- 4AT
- Number of doors
- 4DR
- grade
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25911-85FA0-000 LEVER,MANUAL SHIFT4AT; 1994-11-01~ |
25911-85FA0-000 |
US $33.12 |
||
|
2
|
2
25951-57B00-000
SHAFT,MANUAL SHIFT
4AT; 1994-11-01~ |
25951-57B00-000 |
— | ||
|
3
|
3
29898-57B00-000 PIN,SPRING MNL SHIFT LVR4AT; 1994-11-01~ |
29898-57B00-000 |
US $6.37 |
||
|
4
|
4
25921-57B00-000
カバー,スリーブ
4AT; 1994-11-01~ |
25921-57B00-000 |
— | ||
| replacement | |||||
|
4
|
4
25912-57B00-000 SPACER,MANUAL DETENT LEVER4AT; 1994-11-01~ |
25912-57B00-000 |
US $8.98 |
||
|
5
|
5
25961-57B00-000 PAWL,PARKING LOCK4AT; 1994-11-01~ |
25961-57B00-000 |
US $61.46 |
||
|
6
|
6
29899-57B00-000 PIN,PARKING LOCK PAWL4AT; 1994-11-01~ |
29899-57B00-000 |
US $14.87 |
||
|
7
|
7
28948-57B00-000 RING,SNAP PARKING LOCK PAWL4AT; 1994-11-01~ |
28948-57B00-000 |
US $8.39 |
||
|
8
|
8
29624-57B00-000 SPRING,PARKING LOCK PAWL4AT; 1994-11-01~ |
29624-57B00-000 |
US $10.49 |
||
|
9
|
9
25931-57B00-000 ROD,PARKING LOCK4AT; 1994-11-01~ |
25931-57B00-000 |
US $48.58 |
||
|
10
|
10
25941-57B00-000 BRACKET,PARKING LOCK PAWL4AT; 1994-11-01~ |
25941-57B00-000 |
US $22.82 |
||
|
11
|
11
29944-57B00-000 WASHER,PARKING LOCK PAWL BRKT4AT; 1994-11-01~ |
29944-57B00-000 |
US $5.12 |
||
|
12
|
12
29988-57B00-000 SCREW,PARK LOCK PAWL BRKT4AT; 1994-11-01~ |
29988-57B00-000 |
US $6.18 |
||
|
13
|
13
29793-57B00-000 SEAL,OIL LIP4AT; 1994-11-01~ |
29793-57B00-000 |
US $5.17 |
||
