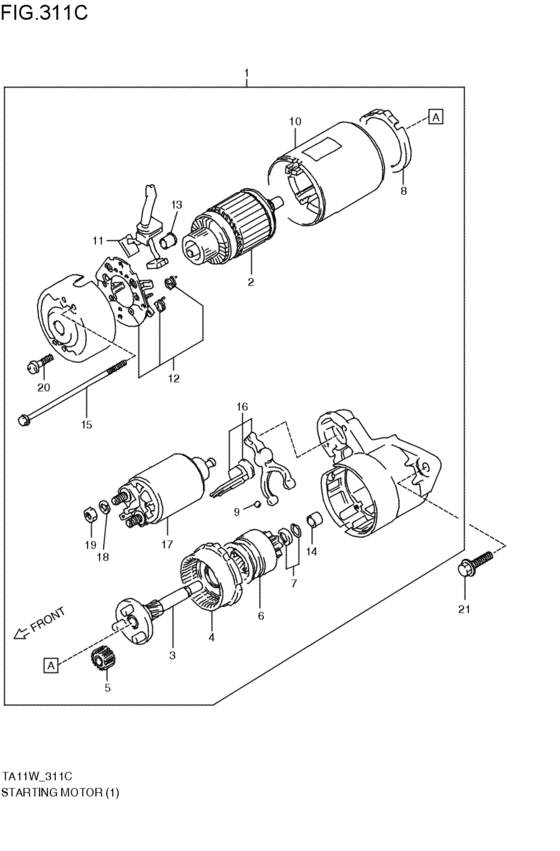

starting motor (V6エンジン; H20A; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1994 - 1996
- Sales region
- Japan
- Engine
- H20A
- transmission
- 4AT
- Number of doors
- 4DR
- grade
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-77E10-000
モータアッシ,スターティング
H20A; 1994-11-01~ |
31100-77E10-000 |
— | ||
| replacement | |||||
|
1
|
1
31100-77E11-000 MOTOR ASSY,STARTINGH20A; 1994-11-01~ |
31100-77E11-000 |
US $661.76 |
||
|
2
|
2
31311-64B11-000
ARMATURE
H20A; 1994-11-01~ |
31311-64B11-000 |
— | ||
|
3
|
3
31341-60A10-000
SHAFT,GEAR
H20A; 1994-11-01~ |
31341-60A10-000 |
— | ||
|
4
|
4
31343-86030-000
ギヤアッシ
H20A; 1994-11-01~ |
31343-86030-000 |
— | ||
| replacement | |||||
|
4
|
4
31343-50F40-000
GEAR,INTERNAL
H20A; 1994-11-01~ |
31343-50F40-000 |
— | ||
|
5
|
5
31344-86030-000 GEAR,PLNTYH20A; 1994-11-01~ |
31344-86030-000 |
US $27.60 |
||
|
6
|
6
31320-86030-000 CLUTCH,OVER RUNNINGH20A; 1994-11-01~ |
31320-86030-000 |
US $111.50 |
||
|
7
|
7
31313-86030-000
STOPPER SET
H20A; 1994-11-01~ |
31313-86030-000 |
— | ||
| replacement | |||||
|
7
|
7
31314-86030-000 Stopper SetH20A; 1994-11-01~ |
31314-86030-000 |
US $12.80 |
||
|
8
|
8
31345-86030-000
Packing
H20A; 1994-11-01~ |
31345-86030-000 |
— | ||
| replacement | |||||
|
8
|
8
31345-60A00-000 PACKINGH20A; 1994-11-01~ |
31345-60A00-000 |
US $5.37 |
||
|
9
|
9
31193-86030-000 BALLH20A; 1994-11-01~ |
31193-86030-000 |
US $2.80 |
||
|
10
|
10
31110-56B10-000
YOKE ASSY
H20A; 1994-11-01~ |
31110-56B10-000 |
— | ||
|
11
|
11
31131-86030-000 BRUSH ASSYH20A; 1994-11-01~ |
31131-86030-000 |
US $10.41 |
||
|
12
|
12
31173-60A20-000 HOLDER ASSY,BRUSHH20A; 1994-11-01~ |
31173-60A20-000 |
US $61.09 |
||
|
13
|
13
31172-64B60-000 BEARING,REARH20A; 1994-11-01~ |
31172-64B60-000 |
US $10.56 |
||
|
14
|
14
31152-79030-000 BEARING,FRONTH20A; 1994-11-01~ |
31152-79030-000 |
US $11.68 |
||
|
15
|
15
31261-60A10-000
Bolt
H20A; 1994-11-01~ |
31261-60A10-000 |
— | ||
|
16
|
16
31191-86030-000
LEVER ASSY
H20A; 1994-11-01~ |
31191-86030-000 |
— | ||
|
17
|
17
31220-86030-000 SWITCH ASSYH20A; 1994-11-01~ |
31220-86030-000 |
US $144.62 |
||
|
18
|
18
08321-01083-000
Lock washer
H20A; 1994-11-01~ |
08321-01083-000 |
— | ||
| replacements | |||||
|
18
|
18
08321-0108B-000 WASHER,LOCKH20A; 1994-11-01~ |
08321-0108B-000 |
from US $0.76 |
||
|
18
|
18
08321-0108A-000 WASHER,LOCKH20A; 1994-11-01~ |
08321-0108A-000 |
from US $0.80 |
||
|
19
|
19
08310-00083-000
Nut
H20A; 1994-11-01~ |
08310-00083-000 |
— | ||
| replacements | |||||
|
19
|
19
08310-0008B-000 NUTH20A; 1994-11-01~ |
08310-0008B-000 |
from US $0.80 |
||
|
19
|
19
08310-0008A-000 NUTNut, bead stopper H20A; 1994-11-01~ |
08310-0008A-000 |
from US $0.76 |
||
|
20
|
20
31136-79030-000
SCREW ASSY
H20A; 1994-11-01~ |
31136-79030-000 |
— | ||
| replacement | |||||
|
20
|
20
31175-79030-000 Screw SetH20A; 1994-11-01~ |
31175-79030-000 |
US $8.16 |
||
|
21
|
21
01550-10503-000
Bolt
H20A; 1994-11-01~ |
01550-10503-000 |
— | ||
| replacement | |||||
|
21
|
21
01550-1050B-000 BOLTH20A; 1994-11-01~ |
01550-1050B-000 |
US $1.22 |
||
