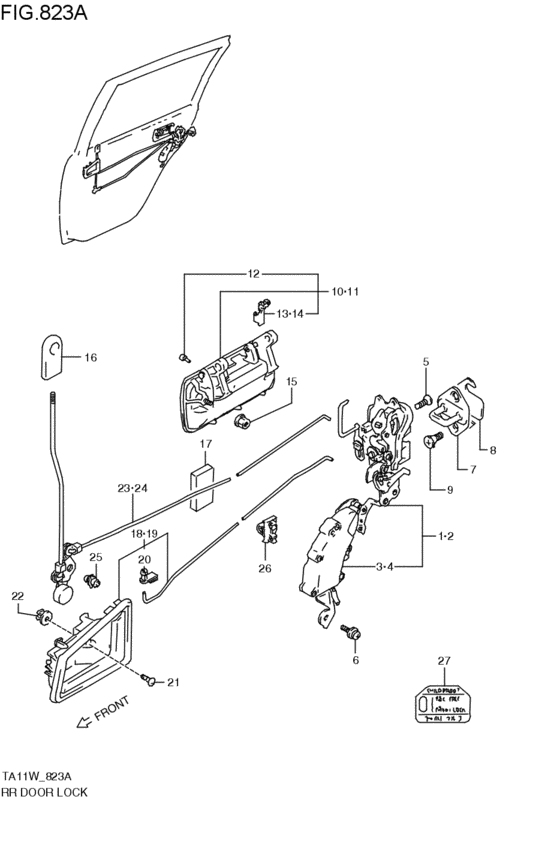

rear door lock (4ドア; 4DR; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- H20A
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82301-58B00-000 LATCH ASSY,RR DR,R4DR; 1994-11-01~ |
82301-58B00-000 |
US $379.04 |
||
|
2
|
2
82302-58B00-000 LATCH ASSY,RR DR,L4DR; 1994-11-01~ |
82302-58B00-000 |
US $478.40 |
||
|
3
|
3
82370-58B00-000 ACTUATOR,RR DR LATCH,R4DR; 1994-11-01~ |
82370-58B00-000 |
US $440 |
||
|
4
|
4
82380-58B00-000 ACTUATOR,RR DR LATCH,L4DR; 1994-11-01~ |
82380-58B00-000 |
US $268.64 |
||
|
5
|
5
09137-06024-000 SCREW(6X18)4DR; 1994-11-01~ |
09137-06024-000 |
US $1.28 |
||
|
6
|
6
09138-06026-000 SCREW(6X16)Screw, fender center 4DR; 1994-11-01~ |
09138-06026-000 |
from US $3.37 |
||
|
7
|
7
82610-60A01-000 STRIKER,FR DOOR LATCH4DR; 1994-11-01~ |
82610-60A01-000 |
US $21.60 |
||
|
8
|
8
78199-78000-000 SPACER,DOOR LOCK STRIKER4DR; 1994-11-01~ |
78199-78000-000 |
US $1.60 |
||
|
9
|
9
09137-08011-000 SCREW(8X18)4DR; 1994-11-01~ |
09137-08011-000 |
US $1.44 |
||
|
10
|
10
82830-56B00-Y29
HANDLE,REAR DOOR OUT,R
ブル-; 4DR:(X,XD,XG); 1994-11-01~ |
82830-56B00-Y29 |
— | ||
|
10
|
10
82830-56B00-Y33
ハンドル,リヤドアアウト,ライト(グリーン)
グリ-ン; 4DR:(X,XD,XG); 1994-11-01~ |
82830-56B00-Y33 |
— | ||
| replacement | |||||
|
10
|
10
82830-56B00-5PK HANDLE,REAR DOOR OUT,Rグリ-ン; 4DR:(X,XD,XG); 1994-11-01~ |
82830-56B00-5PK |
US $75.81 |
||
|
10
|
10
82830-56B00-0FT
HANDLE,REAR DOOR OUT,R
レッド; 4DR:(X,XD,XG); 1994-11-01~ |
82830-56B00-0FT |
— | ||
| replacement | |||||
|
10
|
10
82830-56B00-5PK HANDLE,REAR DOOR OUT,Rレッド; 4DR:(X,XD,XG); 1994-11-01~ |
82830-56B00-5PK |
US $75.81 |
||
|
11
|
11
82840-56B00-Y29
HANDLE,REAR DOOR OUT,L
ブル-; 4DR:(X,XD,XG); 1994-11-01~ |
82840-56B00-Y29 |
— | ||
|
11
|
11
82840-56B00-Y33
ハンドル,リヤドアアウト,レフト(グリーン)
グリ-ン; 4DR:(X,XD,XG); 1994-11-01~ |
82840-56B00-Y33 |
— | ||
| replacement | |||||
|
11
|
11
82840-56B00-5PK HANDLE,REAR DOOR OUT,Lグリ-ン; 4DR:(X,XD,XG); 1994-11-01~ |
82840-56B00-5PK |
US $75.81 |
||
|
11
|
11
82840-56B00-0FT
HANDLE,REAR DOOR OUT,L
レッド; 4DR:(X,XD,XG); 1994-11-01~ |
82840-56B00-0FT |
— | ||
|
12
|
12
82816-60A00-000
RUBBER,STOP
4DR; 1994-11-01~ |
82816-60A00-000 |
— | ||
|
13
|
13
09209-05017-000 PINConnector RH; 4DR; 1994-11-01~ |
09209-05017-000 |
US $14.70 |
||
|
14
|
14
82828-56B00-000 HOLDER,ROD,L4DR; 1994-11-01~ |
82828-56B00-000 |
US $2.72 |
||
|
15
|
15
08316-20063-000
Nut
4DR; 1994-11-01~ |
08316-20063-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-2006A-000 NUT4DR; 1994-11-01~ |
08316-2006A-000 |
from US $0.76 |
||
|
16
|
16
82973-60A01-5PK
KNOB,FR DR INSIDE LOCK
ブラック; 4DR; 1994-11-01~ |
82973-60A01-5PK |
— | ||
|
17
|
17
77591-75000-000 PAD4DR; 1994-11-01~ |
77591-75000-000 |
US $2.28 |
||
|
18
|
18
83140-56B01-5ES HANDLE,RR DOOR INSIDE,Rブラック; 4DR; 1994-11-01~ |
83140-56B01-5ES |
US $32.02 |
||
|
19
|
19
83160-56B01-5ES HANDLE,RR DOOR INSIDE,Lブラック; 4DR; 1994-11-01~ |
83160-56B01-5ES |
US $32.02 |
||
|
20
|
20
83119-60F00-000 SNAP,DOOR INSIDE HANDLE4DR; 1994-11-01~ |
83119-60F00-000 |
US $1.60 |
||
|
21
|
21
03121-05163-000
Screw
4DR; 1994-11-01~ |
03121-05163-000 |
— | ||
| replacement | |||||
|
21
|
21
03121-0516A-000 SCREW4DR; 1994-11-01~ |
03121-0516A-000 |
from US $0.80 |
||
|
22
|
22
09148-06007-000 NUT4DR; 1994-11-01~ |
09148-06007-000 |
from US $0.86 |
||
|
23
|
23
83240-56B01-000 ROD,RR DOOR INSIDE LOCK,R4DR; 1994-11-01~ |
83240-56B01-000 |
US $14.90 |
||
|
24
|
24
83250-56B01-000 ROD,RR DOOR INSIDE LOCK,L4DR; 1994-11-01~ |
83250-56B01-000 |
US $14.90 |
||
|
25
|
25
83261-56B00-000 PIN,FR DOOR INSIDE LOCK ROD4DR; 1994-11-01~ |
83261-56B00-000 |
US $2.65 |
||
|
26
|
26
83271-50E00-000 CLIP,DR HANDLE ROD4DR; 1994-11-01~ |
83271-50E00-000 |
US $1.60 |
||
|
27
|
27
86951-78004-000 CAUTION PLATE,CHILD PROOF4DR; 1994-11-01~ |
86951-78004-000 |
US $1.60 |
||
