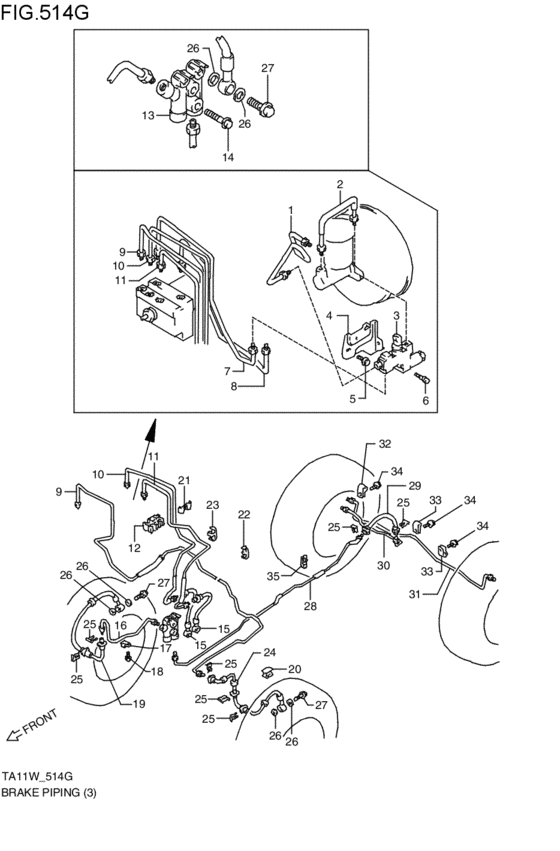

brakes piping (ABS; (2DR,4DR):XD; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- H20A
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- XD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-77E60-000
PIPE,MA PRIMARY TO PV
ABS; (2DR,4DR):XD; 1994-11-01~ |
51410-77E60-000 |
— | ||
|
2
|
2
51520-77E50-000
PIPE,MA SECONDARY TO PV
ABS; (2DR,4DR):XD; 1994-11-01~ |
51520-77E50-000 |
— | ||
|
3
|
3
51920-60A10-000 VALVE ASSY,P&DIFFERENTIALABS; (2DR,4DR):XD; 1994-11-01~ |
51920-60A10-000 |
US $591.36 |
||
|
4
|
4
51925-77E10-000
BRACKET,P&B VALVE
ABS; (2DR,4DR):XD; 1994-11-01~ |
51925-77E10-000 |
— | ||
|
5
|
5
02162-06123-000
Bolt (6x12)
ABS; (2DR,4DR):XD; 1994-11-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
02162-0612B-000 SCREWBolt ABS; (2DR,4DR):XD; 1994-11-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
5
|
5
02162-0612A-000 SCREWBolt, bracket ABS; (2DR,4DR):XD; 1994-11-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
6
|
6
01550-06303-000
Bolt (6x30)
ABS; (2DR,4DR):XD; 1994-11-01~ |
01550-06303-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-0630A-000 BOLTABS; (2DR,4DR):XD; 1994-11-01~ |
01550-0630A-000 |
from US $0.96 |
||
|
7
|
7
51490-77E60-000
PIPE,PV FRONT TO HU
ABS; (2DR,4DR):XD; 1994-11-01~ |
51490-77E60-000 |
— | ||
|
8
|
8
51510-77E60-000
PIPE,PV REAR TO HU
ABS; (2DR,4DR):XD; 1994-11-01~ |
51510-77E60-000 |
— | ||
|
9
|
9
51430-77E60-000
PIPE,HU TO FL BK HOSE
ABS; (2DR,4DR):XD; 1994-11-01~ |
51430-77E60-000 |
— | ||
|
10
|
10
51440-77E60-000
PIPE,HU TO JOINT FRONT
ABS; (2DR,4DR):XD; 1994-11-01~ |
51440-77E60-000 |
— | ||
|
11
|
11
51450-77E60-000
PIPE,HU TO JOINT REAR
ABS; (2DR,4DR):XD; 1994-11-01~ |
51450-77E60-000 |
— | ||
|
12
|
12
51753-60G00-000 CLAMP,PIPE HUABS; (2DR,4DR):XD; 1994-11-01~ |
51753-60G00-000 |
US $2.69 |
||
|
13
|
13
51640-60A60-000 JOINT,4WAY BRAKEABS; (2DR,4DR):XD; 1994-11-01~ |
51640-60A60-000 |
US $79.04 |
||
|
14
|
14
01550-06403-000
Bolt (green)
ABS; (2DR,4DR):XD; 1994-11-01~ |
01550-06403-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0640B-000 BoltABS; (2DR,4DR):XD; 1994-11-01~ |
01550-0640B-000 |
from US $0.96 |
||
|
14
|
14
01550-0640A-000 BoltBolt (l:40) ABS; (2DR,4DR):XD; 1994-11-01~ |
01550-0640A-000 |
from US $3.83 |
||
|
15
|
15
51570-77E00-000 HOSE,MA CYL FLEXIBLEABS; (2DR,4DR):XD; 1994-11-01~ |
51570-77E00-000 |
US $31.28 |
||
|
16
|
16
51420-77E10-000 PIPE,JOINT TO FR BK HOSEABS; (2DR,4DR):XD; 1994-11-01~ |
51420-77E10-000 |
US $30.40 |
||
|
17
|
17
09403-06401-000 CLAMPABS; (2DR,4DR):XD; 1994-11-01~ |
09403-06401-000 |
from US $2.08 |
||
|
18
|
18
01570-06123-000
Bolt
ABS; (2DR,4DR):XD; 1994-11-01~ |
01570-06123-000 |
— | ||
| replacements | |||||
|
18
|
18
01570-0612B-000 BOLTBolt, upper ABS; (2DR,4DR):XD; 1994-11-01~ |
01570-0612B-000 |
US $0.80 |
||
|
18
|
18
01570-0612A-000 BOLTBolt ABS; (2DR,4DR):XD; 1994-11-01~ |
01570-0612A-000 |
from US $0.80 |
||
|
19
|
19
51540-60A31-000 HOSE,FR BRAKE FLEXIBLE,RABS; (2DR,4DR):XD; 1994-11-01~ |
51540-60A31-000 |
US $29.65 |
||
|
20
|
20
51435-60A00-000 CLAMP,BRAKE PIPE SIDEABS; (2DR,4DR):XD; 1994-11-01~ |
51435-60A00-000 |
US $2.24 |
||
|
21
|
21
09403-07312-000 CLAMPABS; (2DR,4DR):XD; 1994-11-01~ |
09403-07312-000 |
from US $0.92 |
||
|
22
|
22
51751-77E00-000 CLAMP,BRAKE PIPEABS; (2DR,4DR):XD; 1994-11-01~ |
51751-77E00-000 |
US $2.24 |
||
|
23
|
23
51752-70B00-000 CLAMP,BK PIPEABS; (2DR,4DR):XD; 1994-11-01~ |
51752-70B00-000 |
US $1.60 |
||
|
24
|
24
51550-60A31-000 HOSE,FR BRAKE FLEXIBLE,LABS; (2DR,4DR):XD; 1994-11-01~ |
51550-60A31-000 |
US $110.03 |
||
|
25
|
25
09383-13001-000 E RINGABS; (2DR,4DR):XD; 1994-11-01~ |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
25
|
25
09383-13003-000 E-RINGABS; (2DR,4DR):XD; 1994-11-01~ |
09383-13003-000 |
from US $1.60 |
||
|
26
|
26
09161-10009-000 WASHER(10X15X1.5)Lock washer ABS; (2DR,4DR):XD; 1994-11-01~ |
09161-10009-000 |
from US $1.06 |
||
|
27
|
27
09360-10026-000 Union boltABS; (2DR,4DR):XD; 1994-11-01~ |
09360-10026-000 |
from US $1.85 |
||
|
28
|
28
51460-56B60-000 PIPE,JOINT TO RR BK HOSEABS; 4DR:XD; 1994-11-01~ |
51460-56B60-000 |
US $42.69 |
||
|
29
|
29
51560-83031-000 HOSE,RR BRAKE FLEXIBLEABS; (2DR,4DR):XD; 1994-11-01~ |
51560-83031-000 |
US $17.60 |
||
|
30
|
30
51470-77E00-000 PIPE,RR BK HOSE TO R BK ASSYABS; (2DR,4DR):XD; 1994-11-01~ |
51470-77E00-000 |
US $11.89 |
||
|
31
|
31
51480-77E00-000
PIPE,R BK ASSY TO L BK ASSY
ABS; (2DR,4DR):XD; 1994-11-01~ |
51480-77E00-000 |
— | ||
|
32
|
32
09403-06404-000 CLAMPABS; (2DR,4DR):XD; 1994-11-01~ |
09403-06404-000 |
US $2.72 |
||
|
33
|
33
09403-06401-000 CLAMPABS; (2DR,4DR):XD; 1994-11-01~ |
09403-06401-000 |
from US $2.08 |
||
|
34
|
34
09132-06006-000 SCREW(6X12)ABS; (2DR,4DR):XD; 1994-11-01~ |
09132-06006-000 |
US $1.60 |
||
