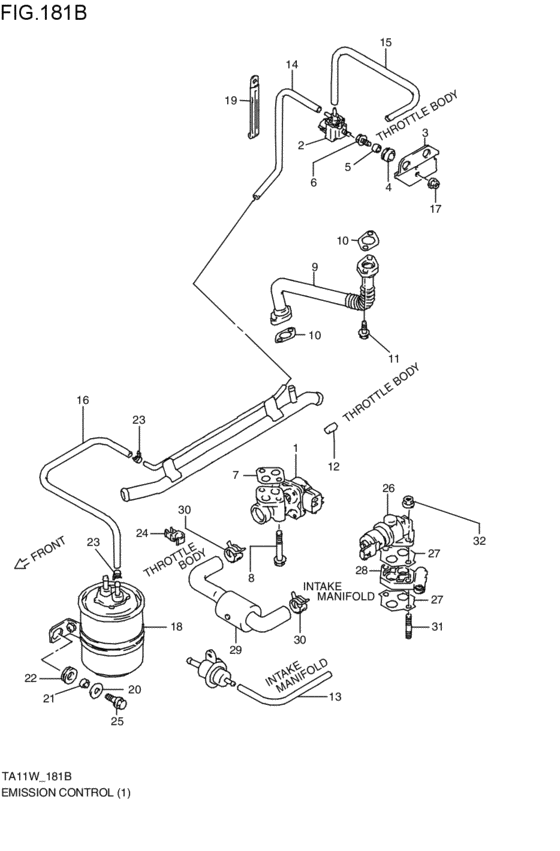

emission control (V6エンンジン; H20A; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- H20A
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- XD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18111-77E00-000
Valve, egr
H20A; 1994-11-01~ |
18111-77E00-000 |
— | ||
| replacement | |||||
|
1
|
1
18111-77E02-000 VALVE,EGRH20A; 1994-11-01~ |
18111-77E02-000 |
US $460.10 |
||
|
2
|
2
18117-58B10-000 SOLENOID,DUTY FOR PURGEH20A; 1994-11-01~ |
18117-58B10-000 |
US $158.08 |
||
|
3
|
3
18417-58B10-000
ブラケット,デューティソレノイド
H20A; 1994-11-01~ |
18417-58B10-000 |
— | ||
| replacement | |||||
|
3
|
3
18417-58B1V-000
BRACKET,DUTY SOLENOID
H20A; 1994-11-01~ |
18417-58B1V-000 |
— | ||
|
4
|
4
09308-10004-000 GROMMETH20A; 1994-11-01~ |
09308-10004-000 |
US $1.98 |
||
|
5
|
5
09180-06106-000 SPACER(6.8X10X7)H20A; 1994-11-01~ |
09180-06106-000 |
from US $2.08 |
||
|
6
|
6
09136-06086-000
スクリュ,6X14
H20A; 1994-11-01~ |
09136-06086-000 |
— | ||
| replacement | |||||
|
6
|
6
09136-06133-000 BOLT(6X16)Screw H20A; 1994-11-01~ |
09136-06133-000 |
US $12.50 |
||
|
7
|
7
18529-77E00-000
Gasket, egr valve
H20A; 1994-11-01~ |
18529-77E00-000 |
— | ||
| replacement | |||||
|
7
|
7
18529-77E01-000 GASKET,EGR VALVEH20A; 1994-11-01~ |
18529-77E01-000 |
US $2.89 |
||
|
8
|
8
01550-08503-000
Bolt
H20A; 1994-11-01~ |
01550-08503-000 |
— | ||
| replacement | |||||
|
8
|
8
01550-0850B-000 BoltH20A; 1994-11-01~ |
01550-0850B-000 |
from US $1.22 |
||
|
9
|
9
18530-77E00-000 PIPE,EGRH20A; 1994-11-01~ |
18530-77E00-000 |
US $98.62 |
||
|
10
|
10
18533-77E00-000 GASKET,EGR PIPEH20A; 1994-11-01~ |
18533-77E00-000 |
US $2.28 |
||
|
11
|
11
01550-06203-000
Bolt
H20A; 1994-11-01~ |
01550-06203-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-0620B-000 BOLTBolt, inspection cap H20A; 1994-11-01~ |
01550-0620B-000 |
from US $0.76 |
||
|
12
|
12
09250-04003-000 PLUG(OD:8)Plug (od:8) H20A; 1994-11-01~ |
09250-04003-000 |
US $1.12 |
||
| replacement | |||||
|
12
|
12
07130-0510B-000 BOLTBolt, sensor H20A; 1994-11-01~ |
07130-0510B-000 |
from US $0.96 |
||
|
13
|
13
09355-35754-600
ホース,3.5X7.5X600
L:600>140; H20A; 1994-11-01~ |
09355-35754-600 |
— | ||
| replacements | |||||
|
13
|
13
09355-35754-601
HOSE(3.5X7.5X601)
L:600>140; H20A; 1994-11-01~ |
09355-35754-601 |
— | ||
|
13
|
13
09355-35006-601 Hose(3.5X7.5X601)L:600>140; H20A; 1994-11-01~ |
09355-35006-601 |
from US $5.78 |
||
|
14
|
14
09355-35754-600
ホース,3.5X7.5X600
L:600>190; H20A; 1994-11-01~ |
09355-35754-600 |
— | ||
| replacements | |||||
|
14
|
14
09355-35754-601
HOSE(3.5X7.5X601)
L:600>190; H20A; 1994-11-01~ |
09355-35754-601 |
— | ||
|
14
|
14
09355-35006-601 Hose(3.5X7.5X601)L:600>190; H20A; 1994-11-01~ |
09355-35006-601 |
from US $5.78 |
||
|
15
|
15
09355-35754-600
ホース,3.5X7.5X600
L:600>230; H20A; 1994-11-01~ |
09355-35754-600 |
— | ||
| replacements | |||||
|
15
|
15
09355-35754-601
HOSE(3.5X7.5X601)
L:600>230; H20A; 1994-11-01~ |
09355-35754-601 |
— | ||
|
15
|
15
09355-35006-601 Hose(3.5X7.5X601)L:600>230; H20A; 1994-11-01~ |
09355-35006-601 |
from US $5.78 |
||
|
16
|
16
09355-35754-600
ホース,3.5X7.5X600
L:600>270; H20A; 1994-11-01~ |
09355-35754-600 |
— | ||
| replacements | |||||
|
16
|
16
09355-35754-601
HOSE(3.5X7.5X601)
L:600>270; H20A; 1994-11-01~ |
09355-35754-601 |
— | ||
|
16
|
16
09355-35006-601 Hose(3.5X7.5X601)L:600>270; H20A; 1994-11-01~ |
09355-35006-601 |
from US $5.78 |
||
|
17
|
17
08316-10063-000
Nut
H20A; 1994-11-01~ |
08316-10063-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-1006B-000 NUTH20A; 1994-11-01~ |
08316-1006B-000 |
from US $0.76 |
||
|
18
|
18
18560-77E00-000
CANISTER
DENSO; H20A; 1994-11-01~ |
18560-77E00-000 |
— | ||
|
19
|
19
09404-08420-000 CLAMP(L:120 T:1.0)H20A; 1994-11-01~ |
09404-08420-000 |
from US $2.08 |
||
|
20
|
20
09160-08133-000
Washer
H20A; 1994-11-01~ |
09160-08133-000 |
— | ||
| replacement | |||||
|
20
|
20
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) H20A; 1994-11-01~ |
09160-08151-000 |
from US $0.91 |
||
|
21
|
21
09180-08185-000 SPACER(8.5X12X6)H20A; 1994-11-01~ |
09180-08185-000 |
US $23.20 |
||
|
22
|
22
09320-12011-000
CUSHION
H20A; 1994-11-01~ |
09320-12011-000 |
— | ||
| replacement | |||||
|
22
|
22
09320-12090-000 Cushion(11.8X25X7.5)H20A; 1994-11-01~ |
09320-12090-000 |
from US $1.67 |
||
|
23
|
23
09401-06405-000 CLIPH20A; 1994-11-01~ |
09401-06405-000 |
from US $1.12 |
||
|
24
|
24
09408-00111-000 CLAMPH20A; 1994-11-01~ |
09408-00111-000 |
US $2.08 |
||
|
25
|
25
01500-08203-000
Bolt
H20A; 1994-11-01~ |
01500-08203-000 |
— | ||
| replacement | |||||
|
25
|
25
01500-0820A-000 BoltH20A; 1994-11-01~ |
01500-0820A-000 |
from US $0.80 |
||
|
26
|
26
18137-77E00-000 VALVE,IACH20A; 1994-11-01~ |
18137-77E00-000 |
from US $299.20 |
||
|
27
|
27
18134-77E00-000 GASKET,IAC VALVEH20A; 1994-11-01~ |
18134-77E00-000 |
from US $1.61 |
||
|
28
|
28
18138-77E00-000 BODY ASSY,ISAH20A; 1994-11-01~ |
18138-77E00-000 |
US $93.10 |
||
|
29
|
29
18141-77E00-000
ホース,IACバルブ
H20A; 1994-11-01~ |
18141-77E00-000 |
— | ||
| replacement | |||||
|
29
|
29
18141-77E01-000
HOSE,IAC VALVE
H20A; 1994-11-01~ |
18141-77E01-000 |
— | ||
|
30
|
30
09401-18404-000 CLIPH20A; 1994-11-01~ |
09401-18404-000 |
from US $1.37 |
||
|
31
|
31
01421-06303-000
Bolt, stud
H20A; 1994-11-01~ |
01421-06303-000 |
— | ||
| replacement | |||||
|
31
|
31
01421-0630B-000 BOLT,STUDH20A; 1994-11-01~ |
01421-0630B-000 |
US $13.20 |
||
|
32
|
32
08316-10063-000
Nut
H20A; 1994-11-01~ |
08316-10063-000 |
— | ||
| replacement | |||||
|
32
|
32
08316-1006B-000 NUTH20A; 1994-11-01~ |
08316-1006B-000 |
from US $0.76 |
||
