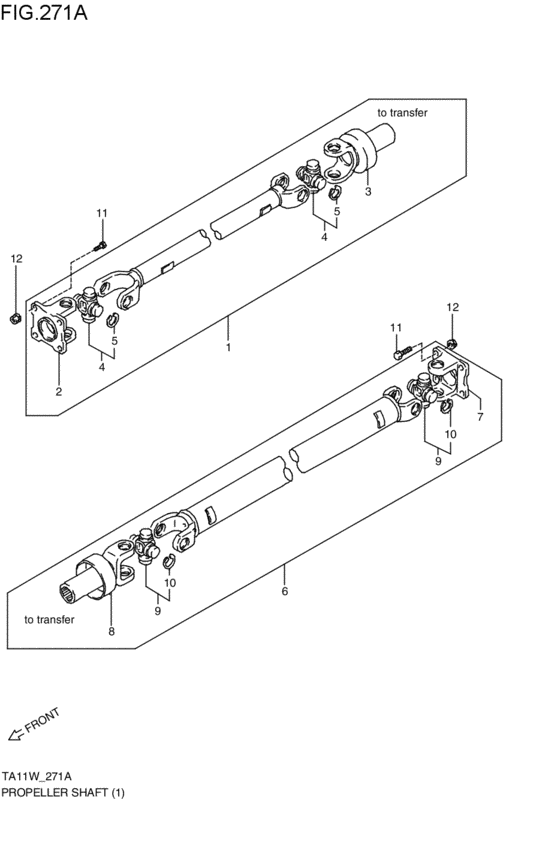

propeller shaft (5MT; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- H20A
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- XD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27101-60A02-000 SHAFT ASSY,PROPELLER FRONT5MT; 1994-11-01~ |
27101-60A02-000 |
US $408.32 |
||
|
2
|
2
27131-56B00-000 YOKE,CROSS JOINT FLANGE5MT; 1994-11-01~ |
27131-56B00-000 |
US $55.94 |
||
|
3
|
3
27140-60A00-000 YOKE,SLIDING5MT; 1994-11-01~ |
27140-60A00-000 |
US $174.80 |
||
|
4
|
4
27200-83812-000
JOINT SET,UNIVERSAL
5MT; 1994-11-01~ |
27200-83812-000 |
— | ||
| replacement | |||||
|
4
|
4
27200-83813-000 Joint Set,universal5MT; 1994-11-01~ |
27200-83813-000 |
from US $53.48 |
||
|
5
|
5
51118-36213-000 RING,SNAP5MT; 1994-11-01~ |
51118-36213-000 |
from US $2.24 |
||
|
6
|
6
27102-56B01-000
Shaft assy,propeller rear
5MT:4DR; 1994-11-01~1995-04-01 |
27102-56B01-000 |
— | ||
|
6
|
6
27102-56B10-000 SHAFT ASSY,PROPELLER REAR5MT:4DR; 1995-04-01~ |
27102-56B10-000 |
US $545.60 |
||
|
7
|
7
27131-56B00-000 YOKE,CROSS JOINT FLANGE5MT; 1994-11-01~ |
27131-56B00-000 |
US $55.94 |
||
|
8
|
8
27140-60A00-000 YOKE,SLIDING5MT; 1994-11-01~1995-04-01 |
27140-60A00-000 |
US $174.80 |
||
|
8
|
8
27140-60A30-000 YOKE,SLIDING5MT; 1995-04-01~ |
27140-60A30-000 |
US $147.57 |
||
|
9
|
9
27200-83812-000
JOINT SET,UNIVERSAL
5MT; 1994-11-01~ |
27200-83812-000 |
— | ||
| replacement | |||||
|
9
|
9
27200-83813-000 Joint Set,universal5MT; 1994-11-01~ |
27200-83813-000 |
from US $53.48 |
||
|
10
|
10
51118-36213-000 RING,SNAP5MT; 1994-11-01~ |
51118-36213-000 |
from US $2.24 |
||
|
11
|
11
01500-10303-000
Bolt
5MT; 1994-11-01~ |
01500-10303-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-1030A-000 BOLT5MT; 1994-11-01~ |
01500-1030A-000 |
from US $0.96 |
||
|
12
|
12
09159-10091-000 NUT5MT; 1994-11-01~ |
09159-10091-000 |
US $2.88 |
||
