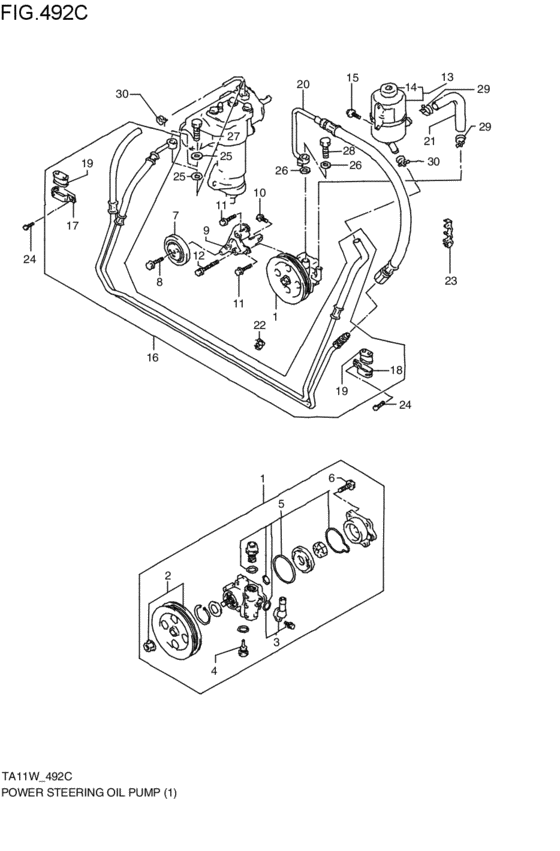

power steering oil pump (V6エンジン; H20A; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- H20A
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- XG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49100-77E30-000
PUMP ASSY,POWER STEERING
H20A; 1994-11-01~ |
49100-77E30-000 |
— | ||
|
2
|
2
49111-77E00-000 PULLEY SETH20A; 1994-11-01~ |
49111-77E00-000 |
US $742.72 |
||
|
3
|
3
49112-77E00-000 JOINT SET,INLETH20A; 1994-11-01~ |
49112-77E00-000 |
US $39.38 |
||
|
4
|
4
49113-77E00-000
SWITCH,PRESSURE
H20A; 1994-11-01~ |
49113-77E00-000 |
— | ||
|
5
|
5
49114-77E00-000
SEAL SET
H20A; 1994-11-01~ |
49114-77E00-000 |
— | ||
|
6
|
6
49115-77E00-000
BOLT SET
H20A; 1994-11-01~ |
49115-77E00-000 |
— | ||
|
7
|
7
49160-77E00-000
プーリ,ベルトテンション
H20A; 1994-11-01~ |
49160-77E00-000 |
— | ||
| replacement | |||||
|
7
|
7
49160-77E01-000 PULLEY,BELT TENSIONH20A; 1994-11-01~ |
49160-77E01-000 |
from US $184.28 |
||
|
8
|
8
09103-08107-000 BOLT(8X33)Bolt,outer H20A; 1994-11-01~ |
09103-08107-000 |
from US $1.98 |
||
|
9
|
9
49120-77E00-000
BRACKET,POWER STRG PUMP
H20A; 1994-11-01~ |
49120-77E00-000 |
— | ||
|
10
|
10
09103-10209-000 BOLT(10X23)H20A; 1994-11-01~ |
09103-10209-000 |
US $2.72 |
||
|
11
|
11
01550-10253-000
Bolt
H20A; 1994-11-01~ |
01550-10253-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-1025B-000 BoltBolt, rr swgarm bracket, l H20A; 1994-11-01~ |
01550-1025B-000 |
from US $5.59 |
||
|
11
|
11
01550-1025A-000 BOLTBolt, drive gear H20A; 1994-11-01~ |
01550-1025A-000 |
from US $1.06 |
||
|
12
|
12
01550-10603-000
Bolt
H20A; 1994-11-01~ |
01550-10603-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-1060B-000 BoltH20A; 1994-11-01~ |
01550-1060B-000 |
US $1.60 |
||
|
12
|
12
01550-1060A-000 BoltH20A; 1994-11-01~ |
01550-1060A-000 |
from US $1.60 |
||
|
13
|
13
49140-56B00-000 TANK ASSY,POWER STEERING OILH20A; 1994-11-01~ |
49140-56B00-000 |
US $182.40 |
||
|
14
|
14
49141-60A00-000 CAP,TANKH20A; 1994-11-01~ |
49141-60A00-000 |
US $47.20 |
||
|
15
|
15
01550-06103-000
Bolt, front
H20A; 1994-11-01~ |
01550-06103-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0610B-000 BoltBolt H20A; 1994-11-01~ |
01550-0610B-000 |
from US $0.80 |
||
|
15
|
15
01550-0610A-000 BOLTH20A; 1994-11-01~ |
01550-0610A-000 |
from US $0.80 |
||
|
16
|
16
49200-77E00-000 HOSE ASSY,PRESSURE&RETURNH20A; 1994-11-01~ |
49200-77E00-000 |
US $694.40 |
||
|
17
|
17
49223-77E00-000 BRACKET,PIPE,RH20A; 1994-11-01~ |
49223-77E00-000 |
US $5.26 |
||
|
18
|
18
49226-77E00-000
BRACKET,PIPE
H20A; 1994-11-01~ |
49226-77E00-000 |
— | ||
|
19
|
19
49227-56B00-000 BUSH,PIPEH20A; 1994-11-01~ |
49227-56B00-000 |
US $4.97 |
||
|
20
|
20
49230-77E00-000 HOSE,PRESSUREH20A; 1994-11-01~ |
49230-77E00-000 |
US $179.58 |
||
|
21
|
21
49214-77E00-000
HOSE,SUCTION
H20A; 1994-11-01~ |
49214-77E00-000 |
— | ||
|
22
|
22
49225-56B00-000
CLAMP,PIPE
H20A; 1994-11-01~ |
49225-56B00-000 |
— | ||
|
23
|
23
09408-00166-000 CLAMPH20A; 1994-11-01~ |
09408-00166-000 |
US $33.50 |
||
|
24
|
24
01550-08253-000
Bolt, rear
H20A; 1994-11-01~ |
01550-08253-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0825B-000 BOLTH20A; 1994-11-01~ |
01550-0825B-000 |
from US $0.96 |
||
|
24
|
24
01550-0825A-000 BOLTH20A; 1994-11-01~ |
01550-0825A-000 |
from US $1.06 |
||
|
25
|
25
09168-14009-000
Washer
H20A; 1994-11-01~ |
09168-14009-000 |
— | ||
| replacements | |||||
|
25
|
25
09168-14014-000 GASKET(14X18X1.5)H20A; 1994-11-01~ |
09168-14014-000 |
from US $0.92 |
||
|
25
|
25
09168-14011-000 GASKET(14X20X1.5)H20A; 1994-11-01~ |
09168-14011-000 |
from US $0.72 |
||
|
26
|
26
09168-16002-000 GASKET(16X22X2)H20A; 1994-11-01~ |
09168-16002-000 |
from US $0.90 |
||
|
27
|
27
09360-14011-000 UNIONH20A; 1994-11-01~ |
09360-14011-000 |
US $13.44 |
||
|
28
|
28
09360-16003-000 UNIONH20A; 1994-11-01~ |
09360-16003-000 |
from US $5.94 |
||
|
29
|
29
09400-24301-000 CLAMPH20A; 1994-11-01~ |
09400-24301-000 |
US $1.92 |
||
|
30
|
30
09400-18302-000 CLAMPH20A; 1994-11-01~ |
09400-18302-000 |
US $23.20 |
||
