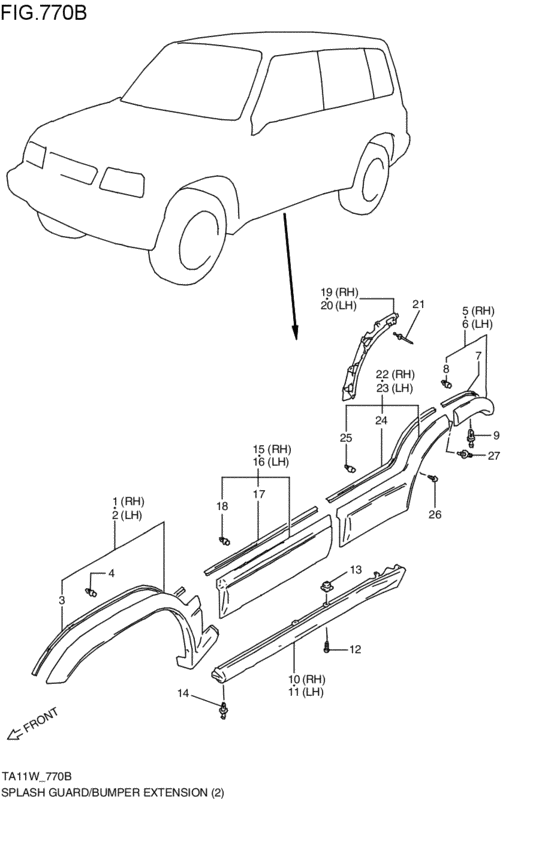

splash guard / bumper extension (4ドア; 4DR; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- H20A
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- XG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77530-77E01-Y26
GUARD ASSY,FR FENDER SPL,R
シルバ-; 4DR:(X,XG,XD,SF5); 1994-11-01~ |
77530-77E01-Y26 |
— | ||
|
2
|
2
77630-77E01-Y26 GUARD ASSY,FR FENDER SPL,Lシルバ-; 4DR:(X,XG,XD,SF5); 1994-11-01~ |
77630-77E01-Y26 |
US $697.68 |
||
|
3
|
3
77611-77E01-0DE
PROTECTOR,GUARD EDGE
シルバ-; 4DR:(X,XG,XD,SF5); 1994-11-01~ |
77611-77E01-0DE |
— | ||
|
4
|
4
77259-71B00-000 CLIP4DR; 1994-11-01~ |
77259-71B00-000 |
US $2.08 |
||
|
5
|
5
77550-77E01-Y26
EXTENSION,SIDE BODY,R
シルバ-; 4DR:(X,XG,XD,SF5); 1994-11-01~ |
77550-77E01-Y26 |
— | ||
|
6
|
6
77650-77E01-Y26
EXTENSION,SIDE BODY,L
シルバ-; 4DR:(X,XG,XD,SF5); 1994-11-01~ |
77650-77E01-Y26 |
— | ||
|
7
|
7
77611-77E01-0DE
PROTECTOR,GUARD EDGE
シルバ-,L:1067>490; 4DR:(X,XG,XD,SF5); 1994-11-01~ |
77611-77E01-0DE |
— | ||
|
8
|
8
77259-71B00-000 CLIP4DR; 1994-11-01~ |
77259-71B00-000 |
US $2.08 |
||
|
9
|
9
09409-08308-5ES CLIP(BLACK)ブラック; 4DR; 1994-11-01~ |
09409-08308-5ES |
from US $1.15 |
||
|
10
|
10
77541-77E01-Y26 GUARD,SIDE SILL SPL,Rシルバ-; 4DR:(X,XG,XD,SF5); 1994-11-01~ |
77541-77E01-Y26 |
US $333.04 |
||
|
11
|
11
77641-77E01-Y26
Guard,side sill splash,l(silve
シルバ-; 4DR:(X,XG,XD,SF5); 1994-11-01~ |
77641-77E01-Y26 |
— | ||
|
12
|
12
03141-05163-000
Screw
4DR; 1994-11-01~ |
03141-05163-000 |
— | ||
| replacement | |||||
|
12
|
12
03141-0516A-000 SCREW4DR; 1994-11-01~ |
03141-0516A-000 |
from US $0.80 |
||
|
13
|
13
09148-05018-000 NUT4DR; 1994-11-01~ |
09148-05018-000 |
from US $0.63 |
||
|
14
|
14
09409-06319-000 CLIP4DR; 1994-11-01~ |
09409-06319-000 |
from US $1.67 |
||
|
15
|
15
77560-77E01-Y26
GUARD ASSY,FR DR SPL,R
シルバ-; 4DR:(X,XG,XD,SF5); 1994-11-01~ |
77560-77E01-Y26 |
— | ||
|
16
|
16
77660-77E01-Y26
GUARD ASSY,FR DR SPL,L
シルバ-; 4DR:(X,XG,XD,SF5); 1994-11-01~ |
77660-77E01-Y26 |
— | ||
|
17
|
17
77611-77E01-0DE
PROTECTOR,GUARD EDGE
シルバ-,L:1067>977; 4DR:(X,XG,XD,SF5); 1994-11-01~ |
77611-77E01-0DE |
— | ||
|
18
|
18
77259-71B00-000 CLIP4DR; 1994-11-01~ |
77259-71B00-000 |
US $2.08 |
||
|
19
|
19
77572-77E00-000 HOLDER,RR DOOR GUARD,R4DR; 1994-11-01~ |
77572-77E00-000 |
US $36.25 |
||
|
20
|
20
77672-77E00-000 HOLDER,RR DOOR GUARD,L4DR; 1994-11-01~ |
77672-77E00-000 |
US $36.25 |
||
|
21
|
21
09229-04044-000 RIVET4DR; 1994-11-01~ |
09229-04044-000 |
US $17.30 |
||
|
22
|
22
77570-77E02-Y26
GUARD ASSY,RR DR SPL,R
シルバ-; 4DR:(X,XG,XD,SF5); 1994-11-01~ |
77570-77E02-Y26 |
— | ||
|
23
|
23
77670-77E02-Y26
GUARD ASSY,RR DR SPL,L
シルバ-; 4DR:(X,XG,XD,SF5); 1994-11-01~ |
77670-77E02-Y26 |
— | ||
|
24
|
24
77611-77E01-0DE
PROTECTOR,GUARD EDGE
シルバ-,L:1067>840; 4DR:(X,XD,XG,SF5); 1994-11-01~ |
77611-77E01-0DE |
— | ||
|
25
|
25
77259-71B00-000 CLIP4DR; 1994-11-01~ |
77259-71B00-000 |
US $2.08 |
||
|
26
|
26
09132-05046-000 SCREW(5X12)4DR; 1994-11-01~ |
09132-05046-000 |
from US $1.01 |
||
|
27
|
27
09409-06314-5PK CLIP(BLACK)ブラック; 4DR; 1994-11-01~ |
09409-06314-5PK |
from US $1.46 |
||
