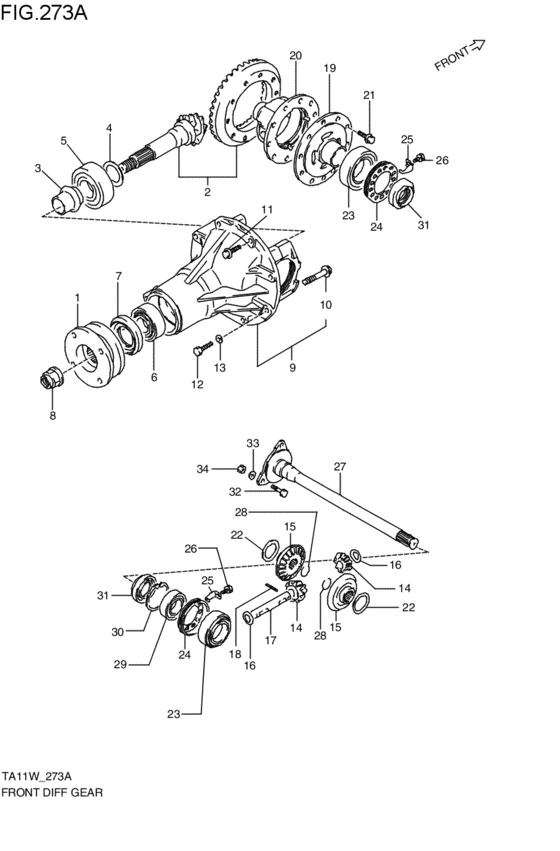

フロントデファレンシャルギヤ (1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- H20A
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- SA2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27110-56B01-000 FLANGE,UNIVERSAL JOINT1994-11-01~ |
27110-56B01-000 |
US $131.20 |
||
|
2
|
2
27300-86830-000
ベベルピニオン/ギヤセット
H20A; 1994-11-01~ |
27300-86830-000 |
— | ||
| replacement | |||||
|
2
|
2
27300-86831-000 BEVEL PINION&GEAR SETH20A; 1994-11-01~ |
27300-86831-000 |
US $651.20 |
||
|
3
|
3
27315-60A01-000 SPACER,DRIVE BEVEL PINION1994-11-01~ |
27315-60A01-000 |
US $28 |
||
|
4
|
4
09181-35101-000 SHIM(35X42X0.5)Shim (t:0.5) 1994-11-01~ |
09181-35101-000 |
from US $2.24 |
||
|
4
|
4
09181-35117-000 SHIM(35X42X1.12)1994-11-01~ |
09181-35117-000 |
US $21.70 |
||
|
4
|
4
09181-35119-000 SHIM(35X42X1.18)1994-11-01~ |
09181-35119-000 |
US $2.24 |
||
|
4
|
4
09181-35122-000 SHIM(35X42X1.24)1994-11-01~ |
09181-35122-000 |
US $21.70 |
||
|
4
|
4
09181-35125-000 SHIM(35X42X1.3)1994-11-01~ |
09181-35125-000 |
US $21.70 |
||
|
5
|
5
09265-35002-000
ベアリング,35X80X22.75
1994-11-01~ |
09265-35002-000 |
— | ||
| replacement | |||||
|
5
|
5
09265-35011-000 BEARING(35X80X22.75)1994-11-01~ |
09265-35011-000 |
US $40 |
||
|
6
|
6
09265-30010-000 BEARING(30X72X20.75)1994-11-01~ |
09265-30010-000 |
US $45.60 |
||
|
7
|
7
09283-40027-000 SEAL,OIL(40x72x11x18)1994-11-01~ |
09283-40027-000 |
US $14.88 |
||
|
8
|
8
27375-60A00-000 NUT,UNIVERSAL JOINT1994-11-01~ |
27375-60A00-000 |
US $7.84 |
||
|
9
|
9
27450-60A01-000
キャリアアッシ,ディファレンシャル,フロント
1994-11-01~1995-04-01 |
27450-60A01-000 |
— | ||
| replacements | |||||
|
9
|
9
27450-60A30-000 CARRIER ASSY,DIFT FR1994-11-01~1995-04-01 |
27450-60A30-000 |
US $712 |
||
|
9
|
9
09265-35011-000 BEARING(35X80X22.75)1994-11-01~1995-04-01 |
09265-35011-000 |
US $40 |
||
|
9
|
9
09265-35007-000
New Genuine Part
1994-11-01~1995-04-01 |
09265-35007-000 |
— | ||
|
9
|
9
27450-60A30-000 CARRIER ASSY,DIFT FR1995-04-01~ |
27450-60A30-000 |
US $712 |
||
|
10
|
10
09111-12010-000 BOLT(12X58)1994-11-01~ |
09111-12010-000 |
US $2.43 |
||
|
11
|
11
01550-08303-000
Bolt
1994-11-01~ |
01550-08303-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0830B-000 Bolt1994-11-01~ |
01550-0830B-000 |
from US $1.06 |
||
|
11
|
11
01550-0830A-000 BOLTBolt, mount oil seal cover 1994-11-01~ |
01550-0830A-000 |
from US $1.12 |
||
|
12
|
12
09111-08076-000
BOLT(8X36)
1994-11-01~ |
09111-08076-000 |
— | ||
|
13
|
13
09162-10008-000 WASHER,LOCKLock washer, rod end 1994-11-01~ |
09162-10008-000 |
from US $1.28 |
||
|
14
|
14
27331-77E00-000
ピニオン,ディファレンシャル
1995-05-01~ |
27331-77E00-000 |
— | ||
|
14
|
14
27331-83020-000 PINION,DIFFERENTIAL1994-11-01~1995-05-01 |
27331-83020-000 |
US $49.40 |
||
| replacements | |||||
|
14
|
14
27331-76A20-000
PINION,DIFFERENTIAL
1994-11-01~1995-05-01 |
27331-76A20-000 |
— | ||
|
14
|
14
27331-76A21-000 Pinion,differential1994-11-01~1995-05-01 |
27331-76A21-000 |
from US $43.75 |
||
|
15
|
15
27341-60A10-000
GEAR,DIFF
1994-11-01~1995-04-01 |
27341-60A10-000 |
— | ||
|
15
|
15
27341-77E00-000
ギヤ,ディファレンシャル
1995-05-01~ |
27341-77E00-000 |
— | ||
|
15
|
15
27341-83000-000 GEAR,DIFF1995-04-01~1995-05-01 |
27341-83000-000 |
US $72.20 |
||
|
16
|
16
09164-15006-000 WASHER1994-11-01~ |
09164-15006-000 |
US $1.67 |
||
|
17
|
17
27351-64B20-000 SHAFT,DIFF SIDE PINION1994-11-01~ |
27351-64B20-000 |
US $20.80 |
||
|
18
|
18
09205-05007-000 PIN,SPRING(5X36)1994-11-01~ |
09205-05007-000 |
US $1.76 |
||
|
19
|
19
27411-60A02-000
ケース,ディファレンシャル
1994-11-01~1995-04-01 |
27411-60A02-000 |
— | ||
|
19
|
19
27411-60A30-000 CASE,DIFF1995-04-01~1995-05-01 |
27411-60A30-000 |
US $185.84 |
||
| replacement | |||||
|
19
|
19
27411-60A02-000
ケース,ディファレンシャル
1995-04-01~1995-05-01 |
27411-60A02-000 |
— | ||
|
20
|
20
27421-60A02-000
ケース,ディファレンシャル
1994-11-01~ |
27421-60A02-000 |
— | ||
|
21
|
21
09103-10184-000 BOLT(10X25)1994-11-01~ |
09103-10184-000 |
US $30.20 |
||
| replacement | |||||
|
21
|
21
09103-10253-000
Bolt,10x28
1994-11-01~ |
09103-10253-000 |
— | ||
|
22
|
22
09160-35002-000 WASHER(35X46X1)1994-11-01~ |
09160-35002-000 |
from US $5.46 |
||
|
22
|
22
09160-35003-000 WASHER(35X46X1.1)1994-11-01~ |
09160-35003-000 |
from US $2.24 |
||
|
22
|
22
09160-35004-000 WASHER(35X46X1.2)1994-11-01~ |
09160-35004-000 |
US $2.24 |
||
|
22
|
22
09160-35006-000 WASHER(35X46X0.9)1994-11-01~ |
09160-35006-000 |
from US $2.24 |
||
|
23
|
23
09265-45002-000 BEARING(45.2X80X19.84)1994-11-01~ |
09265-45002-000 |
US $45.60 |
||
|
24
|
24
27461-83000-000 ADJUSTER,DIFF SIDE BEARING1994-11-01~ |
27461-83000-000 |
US $7.52 |
||
|
25
|
25
27462-63202-000 PLATE,BEARING LOCK1994-11-01~ |
27462-63202-000 |
US $2.74 |
||
|
26
|
26
01550-08123-000
Bolt
1994-11-01~ |
01550-08123-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0812B-000 BoltPlug, drain 1994-11-01~ |
01550-0812B-000 |
from US $0.96 |
||
|
26
|
26
01550-0812A-000 BOLT1994-11-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
27
|
27
27471-60A10-000 SHAFT,FRONT DRIVE1994-11-01~ |
27471-60A10-000 |
US $198.72 |
||
|
28
|
28
09381-25001-000
リング,スナップ
1994-11-01~ |
09381-25001-000 |
— | ||
| replacement | |||||
|
28
|
28
44111-65D00-000 RING,SNAP1994-11-01~ |
44111-65D00-000 |
US $1.60 |
||
|
29
|
29
08133-62067-000 BEARING1994-11-01~ |
08133-62067-000 |
US $24 |
||
|
30
|
30
08331-41626-000
Ring 62mm
1994-11-01~ |
08331-41626-000 |
— | ||
| replacement | |||||
|
30
|
30
08331-4162A-000 CIRCLIP1994-11-01~ |
08331-4162A-000 |
from US $4.26 |
||
|
31
|
31
09283-35008-000
Seal, oil (35x62x10)
1994-11-01~ |
09283-35008-000 |
— | ||
| replacement | |||||
|
31
|
31
09283-35052-000 SEAL,OIL(35X62X14.8)1994-11-01~ |
09283-35052-000 |
from US $10.34 |
||
|
32
|
32
09100-10262-000 BOLT(10X29)Bolt, arm knuckle tie-rod end 1994-11-01~ |
09100-10262-000 |
from US $1.60 |
||
|
33
|
33
08321-01103-000
Washer
1994-11-01~ |
08321-01103-000 |
— | ||
| replacements | |||||
|
33
|
33
08321-0110B-000 WASHER,LOCKWasher, knuckle end 1994-11-01~ |
08321-0110B-000 |
from US $0.80 |
||
|
33
|
33
08321-0110A-000 WASHER,LOCK1994-11-01~ |
08321-0110A-000 |
from US $0.80 |
||
|
34
|
34
08310-00103-000
Nut
1994-11-01~ |
08310-00103-000 |
— | ||
| replacements | |||||
|
34
|
34
08310-0010B-000 NUT1994-11-01~ |
08310-0010B-000 |
from US $0.80 |
||
|
34
|
34
08310-0010A-000 NUT1994-11-01~ |
08310-0010A-000 |
from US $0.80 |
||
