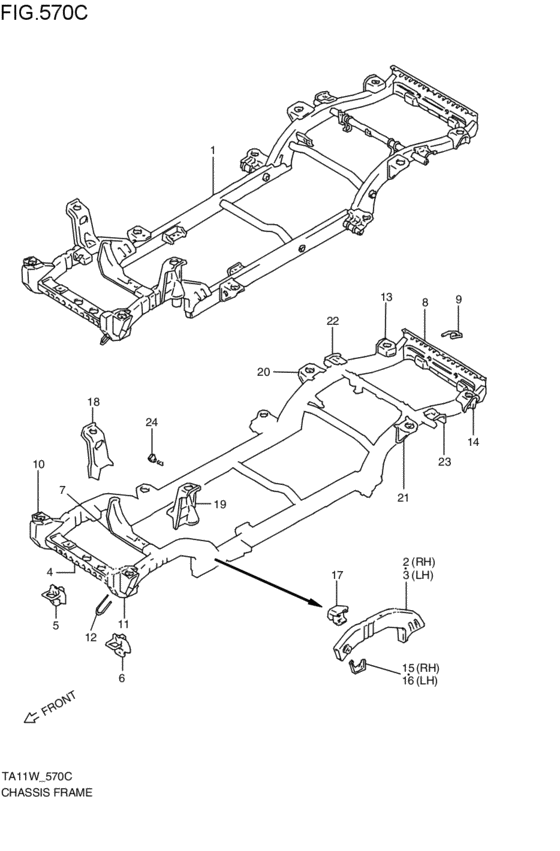

シャシフレ - ム (1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- H20A
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- SA2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57000-77E10-000
フレームアッシ
4DR; 1994-11-01~ |
57000-77E10-000 |
— | ||
|
2
|
2
57110-77E11-000
メンバ,サイドフレームフロント,ライト
1994-11-01~ |
57110-77E11-000 |
— | ||
|
3
|
3
57160-77E10-000
メンバ,サイドフレームフロント,レフト
1994-11-01~ |
57160-77E10-000 |
— | ||
|
4
|
4
57210-77E10-000
CROSSMEMBER,1ST
1994-11-01~ |
57210-77E10-000 |
— | ||
|
5
|
5
57710-77E10-000
HANGER,FR SPNSN ARM,R
1994-11-01~ |
57710-77E10-000 |
— | ||
|
6
|
6
57720-77E10-000
HANGER,FR SPNSN ARM,L
1994-11-01~ |
57720-77E10-000 |
— | ||
|
7
|
7
57220-77E00-000
クロスメンバ,セカンド
1994-11-01~ |
57220-77E00-000 |
— | ||
| replacement | |||||
|
7
|
7
57220-77E01-000
Crossmember comp,2nd
1994-11-01~ |
57220-77E01-000 |
— | ||
|
8
|
8
57260-77E00-000 CROSSMEMBER,TAIL4DR; 1994-11-01~ |
57260-77E00-000 |
US $226.32 |
||
|
9
|
9
57264-56B00-000 HOOK,RR TOWING4DR; 1994-11-01~ |
57264-56B00-000 |
US $26.86 |
||
|
10
|
10
57310-77E00-000
Bracket,1st mounting,r
1994-11-01~ |
57310-77E00-000 |
— | ||
|
11
|
11
57320-77E00-000
Bracket,1st mounting,l
1994-11-01~ |
57320-77E00-000 |
— | ||
|
12
|
12
57324-77E00-000
HOOK,FR TOWING
1994-11-01~ |
57324-77E00-000 |
— | ||
|
13
|
13
57371-77E00-000
BRACKET,4TH MOUNTING,R
4DR; 1994-11-01~ |
57371-77E00-000 |
— | ||
|
14
|
14
57381-77E00-000
BRACKET,4TH MOUNTING,L
4DR; 1994-11-01~ |
57381-77E00-000 |
— | ||
|
15
|
15
57411-56B00-000 GUSSET,1ST CROSSMEMBER SIDE,R1994-11-01~ |
57411-56B00-000 |
US $13.51 |
||
|
16
|
16
57412-56B00-000 GUSSET,1ST CROSSMEMBER SIDE,L1994-11-01~ |
57412-56B00-000 |
US $13.51 |
||
|
17
|
17
57620-77E00-000
BRACKET,FR DIFF MTG
1994-11-01~ |
57620-77E00-000 |
— | ||
|
18
|
18
57730-77E00-000 BRACKET,FR STRUT,R1994-11-01~ |
57730-77E00-000 |
US $279.68 |
||
|
19
|
19
57740-77E00-000
ブラケット,フロントストラット,レフト
1994-11-01~ |
57740-77E00-000 |
— | ||
|
20
|
20
57810-77E00-000 BRACKET,RR COIL SPRING,R1994-11-01~ |
57810-77E00-000 |
US $69.18 |
||
|
21
|
21
57820-77E00-000
BRACKET,RR COIL SPRING,L
1994-11-01~ |
57820-77E00-000 |
— | ||
|
22
|
22
57831-56B00-000
BRACKET,RR SHOCK ABSORBER,R
1994-11-01~ |
57831-56B00-000 |
— | ||
|
23
|
23
57841-56B00-000
BRACKET,RR SHOCK ABSORBER,L
1994-11-01~ |
57841-56B00-000 |
— | ||
|
24
|
24
09119-05018-000 BOLT(8X35)1994-11-01~ |
09119-05018-000 |
US $9.60 |
||
