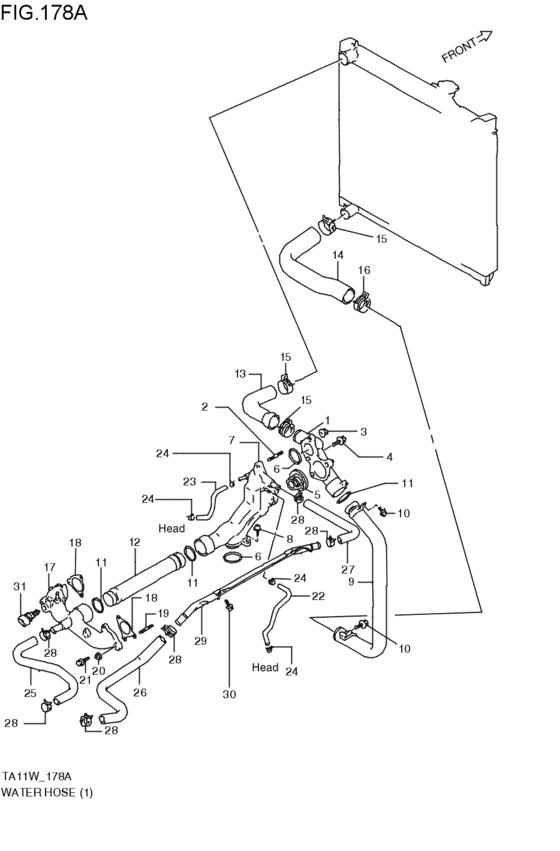

water hose (V6エンジン; H20A; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- H20A
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- SA2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17561-77E00-000
CAP,WTR THERMOSTAT
H20A; 1994-11-01~ |
17561-77E00-000 |
— | ||
|
2
|
2
01421-08253-000
Stud bolt, no.2
H20A; 1994-11-01~ |
01421-08253-000 |
— | ||
| replacement | |||||
|
2
|
2
01421-0825A-000 BOLT,STUDH20A; 1994-11-01~ |
01421-0825A-000 |
from US $1.12 |
||
|
3
|
3
08316-10083-000
Nut
H20A; 1994-11-01~ |
08316-10083-000 |
— | ||
| replacement | |||||
|
3
|
3
08316-1008B-000 NUTH20A; 1994-11-01~ |
08316-1008B-000 |
from US $0.76 |
||
|
4
|
4
01550-08303-000
Bolt
H20A; 1994-11-01~ |
01550-08303-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0830B-000 BoltH20A; 1994-11-01~ |
01550-0830B-000 |
from US $1.06 |
||
|
4
|
4
01550-0830A-000 BOLTBolt, mount oil seal cover H20A; 1994-11-01~ |
01550-0830A-000 |
from US $1.12 |
||
|
5
|
5
17670-77E00-000
サーモスタット,ウォータ,82゜C
H20A-144081マデ; H20A; 1994-11-01~1996-09-01 |
17670-77E00-000 |
— | ||
| replacement | |||||
|
5
|
5
17670-65D00-000 THERMOSTAT,WATER 82 DEGH20A-144081マデ; H20A; 1994-11-01~1996-09-01 |
17670-65D00-000 |
from US $21.12 |
||
|
5
|
5
17670-77E10-000
サーモスタット,ウォータ,82゜C
H20A-144082ヨリ; H20A; 1996-09-01~ |
17670-77E10-000 |
— | ||
| replacement | |||||
|
5
|
5
17670-77E11-000 THERMOSTAT,WATER 82 DEGH20A-144082ヨリ; H20A; 1996-09-01~ |
17670-77E11-000 |
from US $25.16 |
||
|
6
|
6
09280-44008-000 O RING(D:2.4,ID:39.5)H20A; 1994-11-01~ |
09280-44008-000 |
from US $2.81 |
||
|
7
|
7
17690-77E00-000
ケース,サーモスタット
H20A-144081マデ; H20A; 1994-11-01~1996-09-01 |
17690-77E00-000 |
— | ||
| replacements | |||||
|
7
|
7
17670-77E11-000 THERMOSTAT,WATER 82 DEGH20A-144081マデ; H20A; 1994-11-01~1996-09-01 |
17670-77E11-000 |
from US $25.16 |
||
|
7
|
7
17690-77E01-000
Case comp,thermostat
H20A-144081マデ; H20A; 1994-11-01~1996-09-01 |
17690-77E01-000 |
— | ||
|
7
|
7
17690-77E01-000
Case comp,thermostat
H20A-144082ヨリ; H20A; 1996-09-01~ |
17690-77E01-000 |
— | ||
|
8
|
8
07120-10253-000
Bolt
H20A; 1994-11-01~ |
07120-10253-000 |
— | ||
| replacement | |||||
|
8
|
8
07120-1025A-000 BoltH20A; 1994-11-01~ |
07120-1025A-000 |
from US $5.88 |
||
|
9
|
9
17550-77E00-000
パイプ,ウォータ,インレット
H20A; 1994-11-01~ |
17550-77E00-000 |
— | ||
| replacement | |||||
|
9
|
9
17550-67D00-000 PIPE,WATER INLETH20A; 1994-11-01~ |
17550-67D00-000 |
US $91.20 |
||
|
10
|
10
01550-06123-000
Bolt
H20A; 1994-11-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BOLTBolt, clamp H20A; 1994-11-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 BOLTH20A; 1994-11-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
09280-34005-000 O RING(D:3.5,ID:33.7)H20A; 1994-11-01~ |
09280-34005-000 |
from US $2.08 |
||
|
12
|
12
17589-77E00-000 PIPE,WTR OUTLETH20A; 1994-11-01~ |
17589-77E00-000 |
from US $17.78 |
||
|
13
|
13
17841-77E00-000 HOSE,RADIATOR INLETH20A; 1994-11-01~ |
17841-77E00-000 |
US $24.80 |
||
|
14
|
14
17851-77E00-000
HOSE,RADIATOR OUTLET
H20A; 1994-11-01~ |
17851-77E00-000 |
— | ||
|
15
|
15
17859-77E00-000
クリップ,ラジエータホース
H20A; 1994-11-01~ |
17859-77E00-000 |
— | ||
| replacements | |||||
|
15
|
15
09401-35403-000 CLIPH20A; 1994-11-01~ |
09401-35403-000 |
from US $2.56 |
||
|
15
|
15
09401-36402-000
Clip
H20A; 1994-11-01~ |
09401-36402-000 |
— | ||
|
16
|
16
17859-77E10-000
クリップ
H20A; 1994-11-01~ |
17859-77E10-000 |
— | ||
| replacements | |||||
|
16
|
16
09401-35403-000 CLIPH20A; 1994-11-01~ |
09401-35403-000 |
from US $2.56 |
||
|
16
|
16
09401-36403-000
クリップ
H20A; 1994-11-01~ |
09401-36403-000 |
— | ||
|
17
|
17
17570-77E00-000
キャップ,ウォータ,アウトレット
H20A; 1994-11-01~1995-04-01 |
17570-77E00-000 |
— | ||
| replacements | |||||
|
17
|
17
13650-50G01-000 Sensor,water TempH20A; 1994-11-01~1995-04-01 |
13650-50G01-000 |
from US $66.62 |
||
|
17
|
17
17570-77E01-000 CAP,WATER,OUTLETH20A; 1994-11-01~1995-04-01 |
17570-77E01-000 |
US $246.56 |
||
|
17
|
17
17570-77E01-000 CAP,WATER,OUTLETH20A; 1995-04-01~ |
17570-77E01-000 |
US $246.56 |
||
|
18
|
18
17579-85FA0-000 GASKET,WTR OUTLET CAPH20A; 1994-11-01~ |
17579-85FA0-000 |
US $12.80 |
||
|
19
|
19
01421-06203-000
Stud bolt (l:20)(green)
H20A; 1994-11-01~ |
01421-06203-000 |
— | ||
| replacement | |||||
|
19
|
19
01421-0620A-000 BOLT,STUDH20A; 1994-11-01~ |
01421-0620A-000 |
from US $1.12 |
||
|
20
|
20
08316-10063-000
Nut
H20A; 1994-11-01~ |
08316-10063-000 |
— | ||
| replacement | |||||
|
20
|
20
08316-1006B-000 NUTH20A; 1994-11-01~ |
08316-1006B-000 |
from US $0.76 |
||
|
21
|
21
01550-06203-000
Bolt
H20A; 1994-11-01~ |
01550-06203-000 |
— | ||
| replacement | |||||
|
21
|
21
01550-0620B-000 BOLTBolt, inspection cap H20A; 1994-11-01~ |
01550-0620B-000 |
from US $0.76 |
||
|
22
|
22
17857-77E00-000 HOSE,WATER HEAD,RH20A; 1994-11-01~ |
17857-77E00-000 |
from US $11.18 |
||
|
23
|
23
17858-77E00-000 HOSE,WATER HEAD,LH20A; 1994-11-01~ |
17858-77E00-000 |
from US $7.97 |
||
|
24
|
24
09401-10409-000 CLIPH20A; 1994-11-01~ |
09401-10409-000 |
from US $1.12 |
||
|
25
|
25
17871-77E01-000
HOSE,HEATER INLET
H20A; 1994-11-01~ |
17871-77E01-000 |
— | ||
|
26
|
26
17872-77E01-000
HOSE,HEATER OUTLET
H20A; 1994-11-01~ |
17872-77E01-000 |
— | ||
|
27
|
27
17873-77E01-000 HOSE,WATER CIRCULATIONH20A; 1994-11-01~ |
17873-77E01-000 |
US $20 |
||
|
28
|
28
09401-18403-000 CLIPClip, heater hose H20A; 1994-11-01~ |
09401-18403-000 |
US $1.92 |
||
|
29
|
29
17880-77E00-000
パイプ,ヒータ,アウトレット
H20A; 1994-11-01~ |
17880-77E00-000 |
— | ||
| replacement | |||||
|
29
|
29
17880-77E0V-000
PIPE,HEATER OUTLET
H20A; 1994-11-01~ |
17880-77E0V-000 |
— | ||
|
30
|
30
01550-06123-000
Bolt
H20A; 1994-11-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
30
|
30
01550-0612B-000 BOLTBolt, clamp H20A; 1994-11-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
30
|
30
01550-0612A-000 BOLTH20A; 1994-11-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
31
|
31
13650-50G00-000
センサ,ウォータテンパレチャ
H20A; 1994-11-01~1995-04-01 |
13650-50G00-000 |
— | ||
| replacement | |||||
|
31
|
31
13650-50G01-000 Sensor,water TempH20A; 1994-11-01~1995-04-01 |
13650-50G01-000 |
from US $66.62 |
||
|
31
|
31
13650-50G01-000 Sensor,water TempH20A; 1995-04-01~ |
13650-50G01-000 |
from US $66.62 |
||
