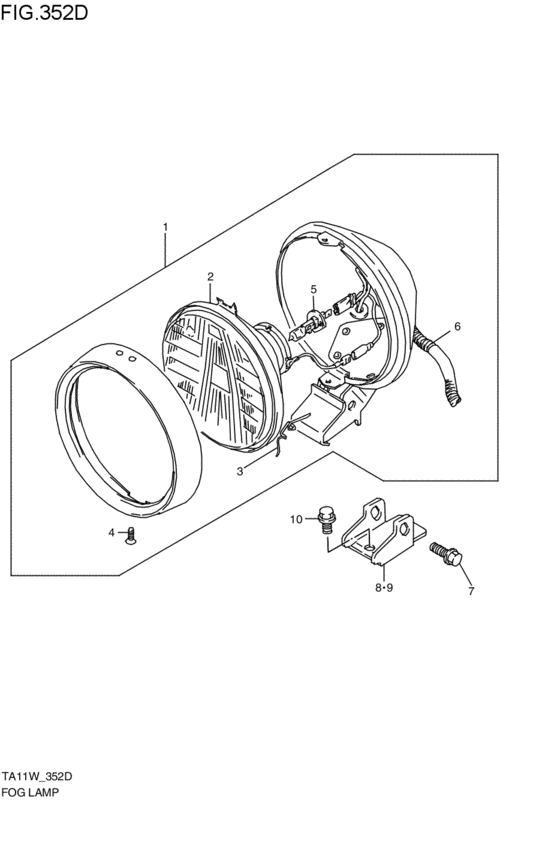

fog light (SF5,SA2; SF5,SA2; 1995-08-01~) Diagram Suzuki ESCUDO
- Year
- 1995 - 1996
- Sales region
- Japan
- Engine
- H20A
- transmission
- 5MT
- Number of doors
- 4DR
- grade
- SF5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35500-70E00-000
Lamp assy,fog
SF5,SA2; 1995-08-01~ |
35500-70E00-000 |
— | ||
|
2
|
2
35514-70E00-000
Lamp unit,fog
SF5,SA2; 1995-08-01~ |
35514-70E00-000 |
— | ||
|
3
|
3
35545-70E00-000
スプリング,サポート
SF5,SA2; 1995-08-01~ |
35545-70E00-000 |
— | ||
|
4
|
4
02122-05127-000 SCREWSF5,SA2; 1995-08-01~ |
02122-05127-000 |
from US $0.80 |
||
|
5
|
5
09471-12122-000 BULB(12V55W/H1/P14.5S/OSRA)SF5,SA2; 1995-08-01~ |
09471-12122-000 |
US $200.60 |
||
|
6
|
6
35532-70E00-000
コードアッシ,フォグランプ
SF5,SA2; 1995-08-01~ |
35532-70E00-000 |
— | ||
|
7
|
7
01550-08203-000
Bolt
SF5,SA2; 1995-08-01~ |
01550-08203-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0820B-000 BoltSF5,SA2; 1995-08-01~ |
01550-0820B-000 |
from US $0.91 |
||
|
7
|
7
01550-0820A-000 BOLTBolt, funnel bracket SF5,SA2; 1995-08-01~ |
01550-0820A-000 |
from US $0.96 |
||
|
8
|
8
35525-60A00-000
ブラケット,フォグランプ,ライト
SF5,SA2; 1995-08-01~ |
35525-60A00-000 |
— | ||
|
9
|
9
35565-60A00-000
ブラケット,フォグランプ,レフト
SF5,SA2; 1995-08-01~ |
35565-60A00-000 |
— | ||
|
10
|
10
01550-08163-000
Bolt, holder
SF5,SA2; 1995-08-01~ |
01550-08163-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0816B-000 BOLTSF5,SA2; 1995-08-01~ |
01550-0816B-000 |
from US $0.91 |
||
|
10
|
10
01550-0816A-000 BOLTBolt, rear SF5,SA2; 1995-08-01~ |
01550-0816A-000 |
from US $0.91 |
||
