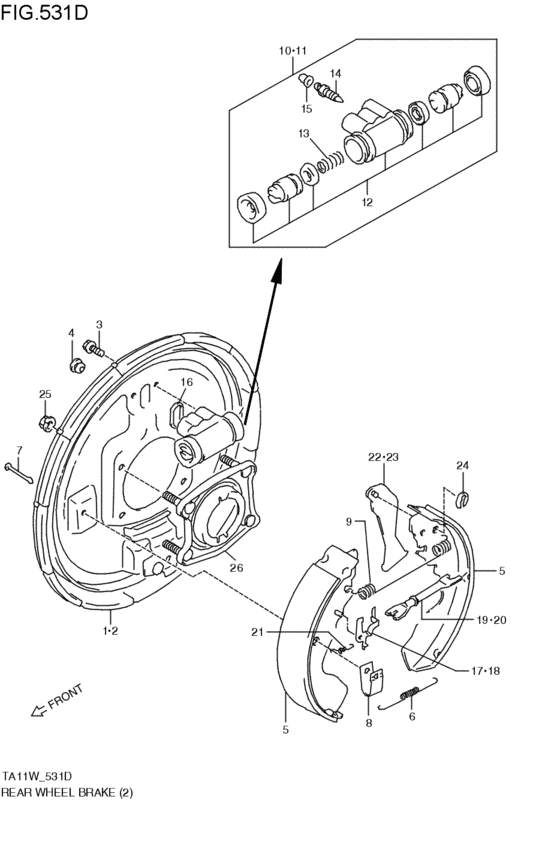

rear wheel brakes (4DR; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1995 - 1996
- Sales region
- Japan
- Engine
- H20A
- transmission
- 4AT
- Number of doors
- 4DR
- grade
- XG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53110-77E50-000
プレート,バッキング,ライト
4DR; 1994-11-01~ |
53110-77E50-000 |
— | ||
| replacement | |||||
|
1
|
1
53110-56B00-000 PLATE,BACKING,R4DR; 1994-11-01~ |
53110-56B00-000 |
US $185.60 |
||
|
2
|
2
53120-77E50-000
プレート,バッキング,レフト
4DR; 1994-11-01~ |
53120-77E50-000 |
— | ||
| replacement | |||||
|
2
|
2
53120-56B00-000 PLATE,BACKING,L4DR; 1994-11-01~ |
53120-56B00-000 |
US $185.60 |
||
|
3
|
3
01550-06103-000
Bolt, front
4DR; 1994-11-01~ |
01550-06103-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0610B-000 BoltBolt 4DR; 1994-11-01~ |
01550-0610B-000 |
from US $0.80 |
||
|
3
|
3
01550-0610A-000 BOLT4DR; 1994-11-01~ |
01550-0610A-000 |
from US $0.80 |
||
|
4
|
4
53141-84010-000 PLUG,BACKING PLATE4DR; 1994-11-01~ |
53141-84010-000 |
from US $1.52 |
||
|
5
|
5
53200-77810-000
シューセット,ブレーキ
4DR; 1994-11-01~1995-06-01 |
53200-77810-000 |
— | ||
| replacements | |||||
|
5
|
5
53781-77E01-000 LEVER,PAWL,R4DR; 1994-11-01~1995-06-01 |
53781-77E01-000 |
from US $10.78 |
||
|
5
|
5
53782-77E01-000 LEVER,PAWL,L4DR; 1994-11-01~1995-06-01 |
53782-77E01-000 |
from US $11.07 |
||
|
5
|
5
53791-77E01-000 SPRING,ADJUSTER4DR; 1994-11-01~1995-06-01 |
53791-77E01-000 |
from US $2.24 |
||
|
5
|
5
53200-77E12-000 SHOE SET,BRAKE4DR; 1994-11-01~1995-06-01 |
53200-77E12-000 |
from US $90.92 |
||
|
5
|
5
53200-77811-000
シューセット,ブレーキ
4DR; 1995-06-01~ |
53200-77811-000 |
— | ||
| replacement | |||||
|
5
|
5
53200-77E12-000 SHOE SET,BRAKE4DR; 1995-06-01~ |
53200-77E12-000 |
from US $90.92 |
||
|
6
|
6
53231-56B00-000 SPRING,SHOE RETURN LOWER4DR; 1994-11-01~ |
53231-56B00-000 |
from US $2.88 |
||
|
7
|
7
53241-82030-000 PIN,SHOE HOLD DOWNPin, shoe hold down 4DR; 1994-11-01~ |
53241-82030-000 |
from US $1.46 |
||
|
8
|
8
53243-85010-000 SPRING,SHOE HOLD DOWNSpring, shoe hold down 4DR; 1994-11-01~ |
53243-85010-000 |
from US $1.37 |
||
|
9
|
9
53331-60A70-000 SPRING,SHOE RETURN UPPER A4DR; 1994-11-01~ |
53331-60A70-000 |
from US $2.12 |
||
|
10
|
10
53401-56B60-000 CYLINDER ASSY,REAR WHEEL,R4DR; 1994-11-01~ |
53401-56B60-000 |
US $110.40 |
||
|
11
|
11
53402-56B60-000
CYLINDER ASSY,REAR WHEEL,L
4DR; 1994-11-01~ |
53402-56B60-000 |
— | ||
| replacement | |||||
|
11
|
11
53402-56B61-000 Cylinder Assy,rr Wheel,l4DR; 1994-11-01~ |
53402-56B61-000 |
US $110.40 |
||
|
12
|
12
53400-60830-000 PISTON CUP/BOOT SET4DR; 1994-11-01~ |
53400-60830-000 |
from US $12 |
||
|
13
|
13
53441-56B00-000 SPRING,WHEEL CYLINDER4DR; 1994-11-01~ |
53441-56B00-000 |
US $3.04 |
||
|
14
|
14
55473-82030-000
Plug, bleeder
4DR; 1994-11-01~ |
55473-82030-000 |
— | ||
| replacement | |||||
|
14
|
14
55151-78451-000 PLUG,BLEEDER4DR; 1994-11-01~ |
55151-78451-000 |
from US $3.94 |
||
|
15
|
15
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug 4DR; 1994-11-01~ |
55156-66310-000 |
from US $1.98 |
||
|
16
|
16
53417-82030-000 GASKET,RR WHEEL CYLINDERGasket, rear wheel cylinder 4DR; 1994-11-01~ |
53417-82030-000 |
from US $4.71 |
||
|
17
|
17
53781-77E01-000 LEVER,PAWL,R4DR; 1994-11-01~ |
53781-77E01-000 |
from US $10.78 |
||
|
18
|
18
53782-77E01-000 LEVER,PAWL,L4DR; 1994-11-01~ |
53782-77E01-000 |
from US $11.07 |
||
|
19
|
19
53810-77E00-000 ADJUSTER ASSY,R4DR; 1994-11-01~ |
53810-77E00-000 |
from US $51.10 |
||
|
20
|
20
53820-77E00-000 ADJUSTER ASSY,L4DR; 1994-11-01~ |
53820-77E00-000 |
from US $51.10 |
||
|
21
|
21
53791-77E01-000 SPRING,ADJUSTER4DR; 1994-11-01~ |
53791-77E01-000 |
from US $2.24 |
||
|
22
|
22
53720-77E00-000 LEVER,PARKING SHOE4DR; 1994-11-01~ |
53720-77E00-000 |
US $33.86 |
||
|
23
|
23
53730-77E00-000 LEVER,PARKING SHOE,L4DR; 1994-11-01~ |
53730-77E00-000 |
US $33.86 |
||
|
24
|
24
53753-82030-000 E-RING,PARKING LEVERRetainer, brake stopper 4DR; 1994-11-01~ |
53753-82030-000 |
from US $0.99 |
||
|
25
|
25
09159-08075-000 NUT4DR; 1994-11-01~ |
09159-08075-000 |
US $0.91 |
||
|
26
|
26
53820-60A00-000 RETAINER,RR WHL BRG OUTER4DR; 1994-11-01~ |
53820-60A00-000 |
US $70.40 |
||
