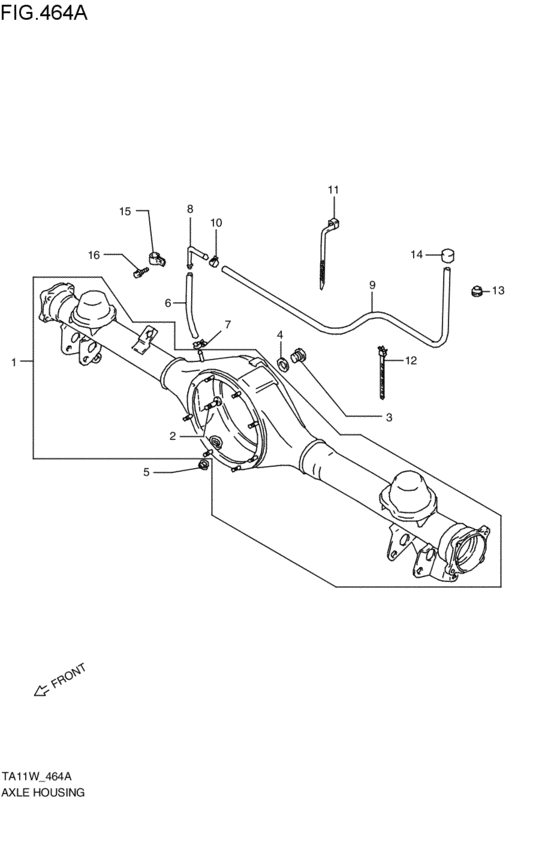

axle housing (1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- H20A
- transmission
- 4AT
- Number of doors
- 4DR
- grade
- XG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46500-77E20-000
HOUSING ASSY,RR AXLE
X,XG,SF5,SA2; 1994-11-01~ |
46500-77E20-000 |
— | ||
|
2
|
2
09119-10057-000 Bolt1994-11-01~ |
09119-10057-000 |
US $42 |
||
|
3
|
3
09248-20003-000 PLUG1994-11-01~ |
09248-20003-000 |
from US $2.59 |
||
|
4
|
4
09168-20003-000 GASKET(20X27X2)Gasket (20x27x2) 1994-11-01~ |
09168-20003-000 |
from US $2.28 |
||
|
5
|
5
09246-16010-000 PLUGマグネットツキ; 1994-11-01~ |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
5
|
5
09246-16021-000 Plug,t/m Oil Drainマグネットツキ; 1994-11-01~ |
09246-16021-000 |
from US $4.01 |
||
|
6
|
6
46520-60A00-000
ホース,ブリーザ
1994-11-01~ |
46520-60A00-000 |
— | ||
| replacement | |||||
|
6
|
6
46546-65D00-000 HOSE,BREATHER L:3101994-11-01~ |
46546-65D00-000 |
US $10.49 |
||
|
7
|
7
09400-16304-000 CLAMP1994-11-01~ |
09400-16304-000 |
from US $4.96 |
||
|
8
|
8
09367-08003-000 UNION1994-11-01~ |
09367-08003-000 |
US $42.70 |
||
|
9
|
9
09352-70113-00B
HOSE(7X11X2000)
L:2000>1420; 4DR; 1994-11-01~ |
09352-70113-00B |
— | ||
| replacement | |||||
|
9
|
9
09352-70119-00B Hose(7X11X2000)L:2000>1420; 4DR; 1994-11-01~ |
09352-70119-00B |
from US $22.40 |
||
|
10
|
10
09401-11410-000
(ca) clip
1994-11-01~ |
09401-11410-000 |
— | ||
| replacement | |||||
|
10
|
10
09401-11413-000 CLIP1994-11-01~ |
09401-11413-000 |
from US $0.96 |
||
|
11
|
11
09407-18403-000
Clamp, switch wire
1994-11-01~ |
09407-18403-000 |
— | ||
| replacement | |||||
|
11
|
11
09407-18402-000 CLAMP(L:165)Clamp (l:165) 1994-11-01~ |
09407-18402-000 |
from US $1.98 |
||
|
12
|
12
09407-17401-000
Clamp (l:150)
1994-11-01~ |
09407-17401-000 |
— | ||
| replacement | |||||
|
12
|
12
09407-17402-000 CLAMP1994-11-01~ |
09407-17402-000 |
from US $1.98 |
||
|
13
|
13
09308-11009-000 GROMMET1994-11-01~ |
09308-11009-000 |
US $28 |
||
|
14
|
14
46543-60A00-000
プラグ,ブリーザ
1994-11-01~ |
46543-60A00-000 |
— | ||
| replacement | |||||
|
14
|
14
27991-65D01-000 PLUG,BREATHER1994-11-01~ |
27991-65D01-000 |
from US $1.92 |
||
|
15
|
15
09403-14408-000 CLAMP1994-11-01~ |
09403-14408-000 |
from US $4.62 |
||
|
16
|
16
01550-06123-000
Bolt
1994-11-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0612B-000 BOLTBolt, clamp 1994-11-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
16
|
16
01550-0612A-000 BOLT1994-11-01~ |
01550-0612A-000 |
from US $0.76 |
||
