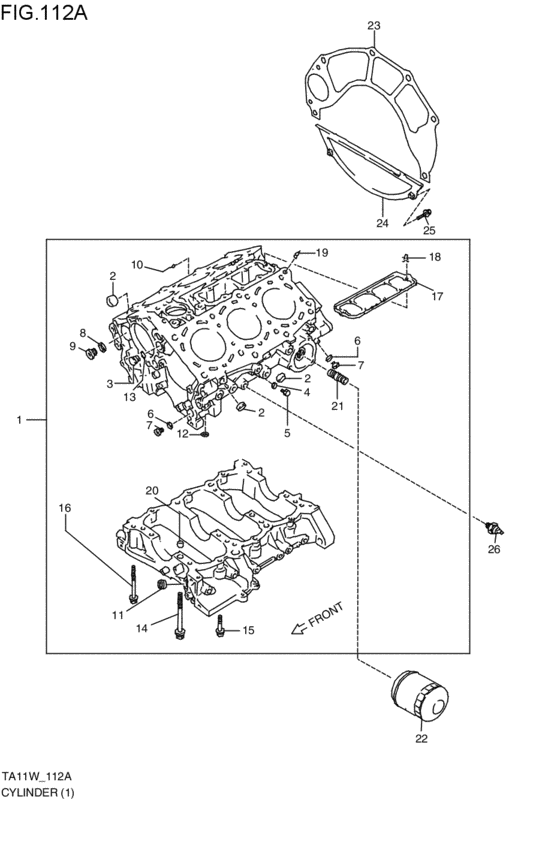

Cylinder (V6エンジン; H20A; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- H20A
- transmission
- 4AT
- Number of doors
- 4DR
- grade
- XG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-85FB0-000
ブロックアッシ,シリンダ
H20A; 1994-11-01~1995-10-01 |
11200-85FB0-000 |
— | ||
| replacements | |||||
|
1
|
1
01550-0625B-000 BOLTBolt, head cover H20A; 1994-11-01~1995-10-01 |
01550-0625B-000 |
from US $0.91 |
||
|
1
|
1
11200-85FA6-000
BLOCK ASSY,CYLINDER
H20A; 1994-11-01~1995-10-01 |
11200-85FA6-000 |
— | ||
|
1
|
1
01550-0625A-000 BOLTBolt H20A; 1994-11-01~1995-10-01 |
01550-0625A-000 |
from US $0.96 |
||
|
1
|
1
01550-06253-000
Bolt (6x25)
H20A; 1994-11-01~1995-10-01 |
01550-06253-000 |
— | ||
|
1
|
1
11200-85FB1-000
ブロックアッシ,シリンダ
H20A; 1995-10-01~ |
11200-85FB1-000 |
— | ||
| replacement | |||||
|
1
|
1
11200-85FA6-000
BLOCK ASSY,CYLINDER
H20A; 1995-10-01~ |
11200-85FA6-000 |
— | ||
|
2
|
2
09241-30009-000
Plug
H20A; 1994-11-01~ |
09241-30009-000 |
— | ||
| replacement | |||||
|
2
|
2
09241-30010-000 PLUGH20A; 1994-11-01~ |
09241-30010-000 |
US $2.40 |
||
|
3
|
3
11214-85FA0-000
プラグ
H20A; 1994-11-01~ |
11214-85FA0-000 |
— | ||
| replacement | |||||
|
3
|
3
11214-85FA1-000 PLUGH20A; 1994-11-01~ |
11214-85FA1-000 |
US $11.92 |
||
|
4
|
4
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) H20A-143468マデ; H20A; 1994-11-01~ |
09168-08016-000 |
from US $1.22 |
||
|
4
|
4
09168-10031-000 GASKET(10.2X20X2.3)H20A-143469ヨリ; H20A; 1996-08-01~ |
09168-10031-000 |
from US $1.22 |
||
|
5
|
5
01550-08123-000
Bolt
H20A-143468マデ; H20A; 1994-11-01~ |
01550-08123-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0812B-000 BoltPlug, drain H20A-143468マデ; H20A; 1994-11-01~ |
01550-0812B-000 |
from US $0.96 |
||
|
5
|
5
01550-0812A-000 BOLTH20A-143468マデ; H20A; 1994-11-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
5
|
5
09103-10286-000 BOLT(10X12)H20A-143469ヨリ; H20A; 1996-08-01~ |
09103-10286-000 |
from US $2.09 |
||
|
6
|
6
11216-77E00-000 GASKET,M18 PLUGH20A; 1994-11-01~ |
11216-77E00-000 |
from US $1.74 |
||
|
7
|
7
09248-18005-000 PLUGPlug, oil gallery H20A; 1994-11-01~ |
09248-18005-000 |
from US $10.15 |
||
| replacement | |||||
|
7
|
7
09248-18011-000 PLUG(18X8)Plug, oil gallery H20A; 1994-11-01~ |
09248-18011-000 |
from US $2.88 |
||
|
8
|
8
11217-85FA0-000 GASKET,M26 PLUGH20A; 1994-11-01~ |
11217-85FA0-000 |
from US $1.91 |
||
|
9
|
9
09248-26001-000 PLUG,M26H20A; 1994-11-01~ |
09248-26001-000 |
from US $7.36 |
||
|
10
|
10
09246-05006-000 PLUG(1/8PT,H:5.5)H20A; 1994-11-01~ |
09246-05006-000 |
from US $1.42 |
||
|
11
|
11
09246-16013-000
プラグ
H20A; 1994-11-01~ |
09246-16013-000 |
— | ||
| replacements | |||||
|
11
|
11
09246-16010-000 PLUGH20A; 1994-11-01~ |
09246-16010-000 |
US $4.46 |
||
|
11
|
11
09246-16021-000 Plug,t/m Oil DrainH20A; 1994-11-01~ |
09246-16021-000 |
from US $4.01 |
||
|
12
|
12
09280-21008-000 O RING(D:2.5,ID:21)O ring (d:2.5,id:21) H20A; 1994-11-01~ |
09280-21008-000 |
from US $0.95 |
||
|
13
|
13
09280-22019-000 O RING(D:1.9,ID:21.8)H20A; 1994-11-01~ |
09280-22019-000 |
from US $1.49 |
||
|
14
|
14
11251-85FA0-000
ボルト,クランクケース
H20A; 1994-11-01~ |
11251-85FA0-000 |
— | ||
| replacement | |||||
|
14
|
14
11251-85FA1-000 BOLT,CRANK CASEBolt H20A; 1994-11-01~ |
11251-85FA1-000 |
from US $5.69 |
||
|
15
|
15
01550-08403-000
Bolt
H20A; 1994-11-01~ |
01550-08403-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0840B-000 BoltH20A; 1994-11-01~ |
01550-0840B-000 |
from US $1.12 |
||
|
15
|
15
01550-0840A-000 BOLTH20A; 1994-11-01~ |
01550-0840A-000 |
from US $1.12 |
||
|
16
|
16
01550-08853-000
Bolt
H20A; 1994-11-01~ |
01550-08853-000 |
— | ||
| replacement | |||||
|
16
|
16
01550-0885B-000 BoltH20A; 1994-11-01~ |
01550-0885B-000 |
from US $1.67 |
||
|
17
|
17
11271-85FA0-000 PLATE,CYLINDER BLOCKH20A; 1994-11-01~ |
11271-85FA0-000 |
US $13.43 |
||
|
18
|
18
01550-06123-000
Bolt
H20A; 1994-11-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0612B-000 BOLTBolt, clamp H20A; 1994-11-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
18
|
18
01550-0612A-000 BOLTH20A; 1994-11-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
19
|
19
16450-85FA1-000 VALVE,CHECKH20A-132059ヨリ; H20A; 1994-11-01~ |
16450-85FA1-000 |
from US $12.31 |
||
|
20
|
20
04211-13189-000 PINH20A; 1994-11-01~ |
04211-13189-000 |
from US $1.19 |
||
|
21
|
21
11241-86FA0-000 STAND,OIL FILTERH20A; 1994-11-01~ |
11241-86FA0-000 |
US $6.72 |
||
|
22
|
22
16510-85FA0-000 FILTER ASSY,OIL TOKYO ROKIH20A; 1994-11-01~ |
16510-85FA0-000 |
US $24 |
||
|
23
|
23
11311-85F10-000 PLATE,CLUTCH HSGH20A; 1994-11-01~ |
11311-85F10-000 |
US $41.95 |
||
|
24
|
24
11320-85F10-000
プレート,クラッチハウジング,ロア
H20A; 1994-11-01~ |
11320-85F10-000 |
— | ||
| replacement | |||||
|
24
|
24
11320-85F12-000 PLATE,CLUTCH HSG LOWERH20A; 1994-11-01~ |
11320-85F12-000 |
US $13.43 |
||
|
25
|
25
01550-06253-000
Bolt (6x25)
H20A; 1994-11-01~ |
01550-06253-000 |
— | ||
|
26
|
26
37820-82001-000
Switch assy, oil pressure
H20A; 1994-11-01~ |
37820-82001-000 |
— | ||
| replacement | |||||
|
26
|
26
37820-820P0-000 SWITCH ASSY,OIL PRESSUREH20A; 1994-11-01~ |
37820-820P0-000 |
from US $12.02 |
||
