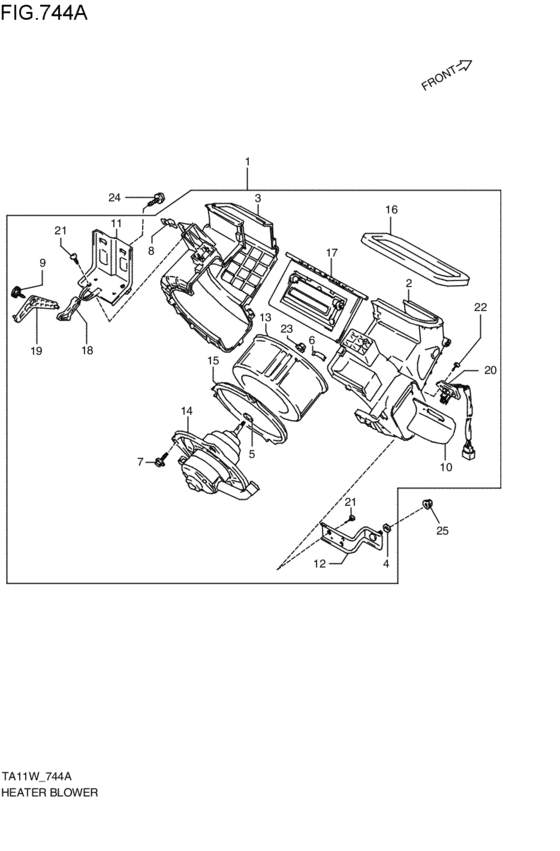

heater bloy (1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- H20A
- transmission
- 4AT
- Number of doors
- 4DR
- grade
- XG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74200-60A01-000
BLOWER ASSY
1994-11-01~ |
74200-60A01-000 |
— | ||
|
2
|
2
74211-60A00-000
Case,blower
1994-11-01~ |
74211-60A00-000 |
— | ||
|
3
|
3
74212-60A01-000
CASE,BLOWER
1994-11-01~ |
74212-60A01-000 |
— | ||
|
4
|
4
74116-60A00-000 PACKIN1994-11-01~ |
74116-60A00-000 |
US $1.44 |
||
|
5
|
5
74131-82000-000
ワッシャ,ファン
1994-11-01~ |
74131-82000-000 |
— | ||
| replacement | |||||
|
5
|
5
17112-82000-000 WASHER,FAN1994-11-01~ |
17112-82000-000 |
US $0.85 |
||
|
6
|
6
74133-82000-000 CLAMP,CASE1994-11-01~ |
74133-82000-000 |
US $2.91 |
||
|
7
|
7
74135-82000-000 SCREW,MOTOR1994-11-01~ |
74135-82000-000 |
US $1.73 |
||
|
8
|
8
74151-70D01-000 CLAMP,CONTROL WIRE1994-11-01~ |
74151-70D01-000 |
US $4.12 |
||
|
9
|
9
74183-82005-000 SCREW,LINK1994-11-01~ |
74183-82005-000 |
US $1.73 |
||
|
10
|
10
74215-60A00-000
PLATE,COVER
1994-11-01~ |
74215-60A00-000 |
— | ||
|
11
|
11
74221-60A00-000
ブラケット,カバー
1994-11-01~ |
74221-60A00-000 |
— | ||
|
12
|
12
74222-60A00-000
BRACKET,CASE
1994-11-01~ |
74222-60A00-000 |
— | ||
|
13
|
13
74231-60A10-000 FAN,BLOWER1994-11-01~ |
74231-60A10-000 |
US $31.17 |
||
|
14
|
14
74250-60A00-000 MOTOR ASSY1994-11-01~ |
74250-60A00-000 |
US $492.80 |
||
|
15
|
15
74261-60A10-000 PACKING1994-11-01~ |
74261-60A10-000 |
US $9.28 |
||
|
16
|
16
74262-60A00-000
パッキン
1994-11-01~ |
74262-60A00-000 |
— | ||
| replacement | |||||
|
16
|
16
74163-84101-000 PACKING1994-11-01~ |
74163-84101-000 |
from US $7.90 |
||
|
17
|
17
74271-60A00-000
DAMPER ASSY
1994-11-01~ |
74271-60A00-000 |
— | ||
|
18
|
18
74281-60A00-000
PLATE
1994-11-01~ |
74281-60A00-000 |
— | ||
|
19
|
19
74282-60A00-000
LEVER,CONT
1994-11-01~ |
74282-60A00-000 |
— | ||
|
20
|
20
74290-60A01-000
RESISTOR,BLOWER
1994-11-01~ |
74290-60A01-000 |
— | ||
|
21
|
21
03511-05163-000
Screw
1994-11-01~ |
03511-05163-000 |
— | ||
| replacement | |||||
|
21
|
21
03511-0516A-000 SCREW1994-11-01~ |
03511-0516A-000 |
from US $0.76 |
||
|
22
|
22
03112-04123-000
Screw
1994-11-01~ |
03112-04123-000 |
— | ||
| replacement | |||||
|
22
|
22
03111-0412A-000 SCREW1994-11-01~ |
03111-0412A-000 |
from US $3.04 |
||
|
23
|
23
08316-20053-000
Nut
1994-11-01~ |
08316-20053-000 |
— | ||
| replacement | |||||
|
23
|
23
08316-2005A-000 NUT1994-11-01~ |
08316-2005A-000 |
from US $0.80 |
||
|
24
|
24
01550-06123-000
Bolt
1994-11-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0612B-000 BOLTBolt, clamp 1994-11-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
24
|
24
01550-0612A-000 BOLT1994-11-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
25
|
25
08316-10083-000
Nut
1994-11-01~ |
08316-10083-000 |
— | ||
| replacement | |||||
|
25
|
25
08316-1008B-000 NUT1994-11-01~ |
08316-1008B-000 |
from US $0.76 |
||
