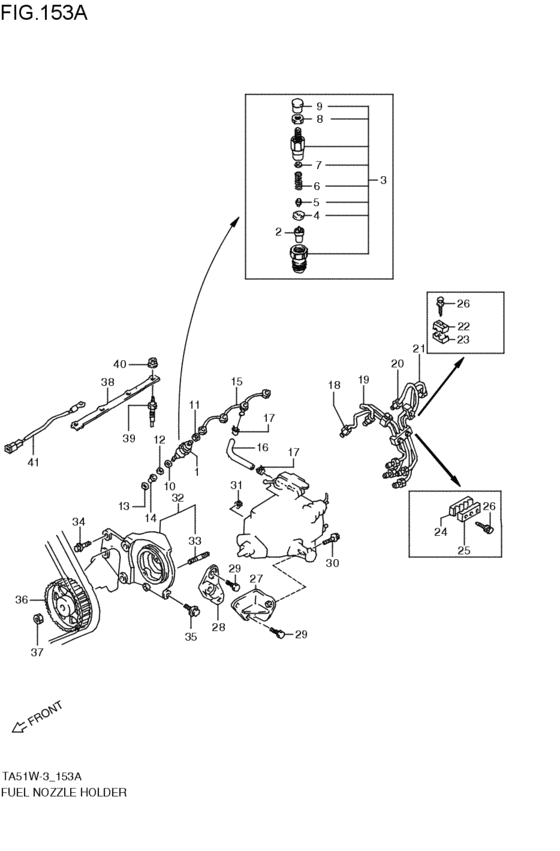

fuel nozzle holder (RF; 1996-10-01~1997-03-01) Diagram Suzuki ESCUDO
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- 4AT
- Number of doors
- 5DR
- grade
- STD
- air bag
- NAB
- abs
- ABS-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15310-78E10-000
HOLDER,NOZZLE
RF; 1996-10-01~1997-03-01 |
15310-78E10-000 |
— | ||
|
2
|
2
15312-78E10-000 NOZZLERF; 1996-10-01~1997-03-01 |
15312-78E10-000 |
US $121.44 |
||
|
3
|
3
15311-78E10-000
HOLDER,NOZZLE
RF; 1996-10-01~1997-03-01 |
15311-78E10-000 |
— | ||
|
4
|
4
15319-78E10-000
スペーサ
RF; 1996-10-01~1997-03-01 |
15319-78E10-000 |
— | ||
|
5
|
5
15313-78E10-000
SEAT,NOZZLE SPRING
RF; 1996-10-01~1997-03-01 |
15313-78E10-000 |
— | ||
|
6
|
6
15315-78E10-000
Spring,nozzle holder
RF; 1996-10-01~1997-03-01 |
15315-78E10-000 |
— | ||
|
7
|
7
15316-78E10-110
SHIM,T:1.1
RF; 1996-10-01~1997-03-01 |
15316-78E10-110 |
— | ||
|
7
|
7
15316-78E10-115
SHIM,T:1.15
RF; 1996-10-01~1997-03-01 |
15316-78E10-115 |
— | ||
|
7
|
7
15316-78E10-120
SHIM,T:1.2
RF; 1996-10-01~1997-03-01 |
15316-78E10-120 |
— | ||
|
7
|
7
15316-78E10-125
SHIM,T:1.25
RF; 1996-10-01~1997-03-01 |
15316-78E10-125 |
— | ||
|
7
|
7
15316-78E10-130
SHIM,T:1.3
RF; 1996-10-01~1997-03-01 |
15316-78E10-130 |
— | ||
|
7
|
7
15316-78E10-135
SHIM,T:1.35
RF; 1996-10-01~1997-03-01 |
15316-78E10-135 |
— | ||
|
7
|
7
15316-78E10-140
SHIM,T:1.4
RF; 1996-10-01~1997-03-01 |
15316-78E10-140 |
— | ||
|
7
|
7
15316-78E10-145
シム,T:1.45
RF; 1996-10-01~1997-03-01 |
15316-78E10-145 |
— | ||
|
7
|
7
15316-78E10-150
SHIM,T:1.5
RF; 1996-10-01~1997-03-01 |
15316-78E10-150 |
— | ||
|
7
|
7
15316-78E10-155
SHIM,T:1.55
RF; 1996-10-01~1997-03-01 |
15316-78E10-155 |
— | ||
|
7
|
7
15316-78E10-160
SHIM,T:1.6
RF; 1996-10-01~1997-03-01 |
15316-78E10-160 |
— | ||
|
7
|
7
15316-78E10-165
SHIM,T:1.65
RF; 1996-10-01~1997-03-01 |
15316-78E10-165 |
— | ||
|
7
|
7
15316-78E10-170
SHIM,T:1.7
RF; 1996-10-01~1997-03-01 |
15316-78E10-170 |
— | ||
|
7
|
7
15316-78E10-175
SHIM,T:1.75
RF; 1996-10-01~1997-03-01 |
15316-78E10-175 |
— | ||
|
7
|
7
15316-78E10-180
SHIM,T:1.8
RF; 1996-10-01~1997-03-01 |
15316-78E10-180 |
— | ||
|
7
|
7
15316-78E10-185
SHIM,T:1.85
RF; 1996-10-01~1997-03-01 |
15316-78E10-185 |
— | ||
|
7
|
7
15316-78E10-190
SHIM,T:1.9
RF; 1996-10-01~1997-03-01 |
15316-78E10-190 |
— | ||
|
7
|
7
15316-78E10-195
SHIM,T:1.95
RF; 1996-10-01~1997-03-01 |
15316-78E10-195 |
— | ||
|
7
|
7
15316-78E10-100
Shim,t:1.0
RF; 1996-10-01~1997-03-01 |
15316-78E10-100 |
— | ||
|
7
|
7
15316-78E10-105
SHIM,T:1.05
RF; 1996-10-01~1997-03-01 |
15316-78E10-105 |
— | ||
|
8
|
8
15317-78E10-000
NUT,SCREW CAP
RF; 1996-10-01~1997-03-01 |
15317-78E10-000 |
— | ||
|
9
|
9
15318-78E10-000
BUSH
RF; 1996-10-01~1997-03-01 |
15318-78E10-000 |
— | ||
|
10
|
10
15887-78E10-000 WASHER,NOZZLERF; 1996-10-01~1997-03-01 |
15887-78E10-000 |
US $4.05 |
||
|
11
|
11
15885-78E10-000 GASKET,REAK PIPERF; 1996-10-01~1997-03-01 |
15885-78E10-000 |
US $6.04 |
||
|
12
|
12
15889-78E10-000 GASKETGasket RF; 1996-10-01~1997-03-01 |
15889-78E10-000 |
US $4.05 |
||
|
13
|
13
15881-78E00-000 WASHER,SHEELD HEAT NOZZLERF; 1996-10-01~1997-03-01 |
15881-78E00-000 |
US $4.05 |
||
|
14
|
14
15882-78E00-000
シールド,ヒート
RF; 1996-10-01~1997-03-01 |
15882-78E00-000 |
— | ||
| replacement | |||||
|
14
|
14
15882-78E01-000 SHIELD,HEATRF; 1996-10-01~1997-03-01 |
15882-78E01-000 |
US $15.53 |
||
|
15
|
15
15865-78E10-000
PIPE,FULE REAK
RF; 1996-10-01~1997-03-01 |
15865-78E10-000 |
— | ||
|
16
|
16
12815-78E00-000
Hose
RF; 1996-10-01~1997-03-01 |
12815-78E00-000 |
— | ||
|
17
|
17
M9401-08000-000
CLIP
RF; 1996-10-01~1997-03-01 |
M9401-08000-000 |
— | ||
|
18
|
18
15833-78E10-000 PIPE,INJECTION NO.1RF; 1996-10-01~1997-03-01 |
15833-78E10-000 |
US $54.83 |
||
|
19
|
19
15835-78E10-000
Pipe,injection,no.2
RF; 1996-10-01~1997-03-01 |
15835-78E10-000 |
— | ||
|
20
|
20
15837-78E10-000
PIPE,INJECTION NO.3
RF; 1996-10-01~1997-03-01 |
15837-78E10-000 |
— | ||
|
21
|
21
15839-78E10-000
Pipe,injection,no.4
RF; 1996-10-01~1997-03-01 |
15839-78E10-000 |
— | ||
|
22
|
22
15895-78E00-000
CLIP,PIPE
RF; 1996-10-01~1997-03-01 |
15895-78E00-000 |
— | ||
|
23
|
23
15896-78E00-000
CLIP,INJECTION PIPE
RF; 1996-10-01~1997-03-01 |
15896-78E00-000 |
— | ||
|
24
|
24
15893-78E00-000
CLIP
RF; 1996-10-01~1997-03-01 |
15893-78E00-000 |
— | ||
|
25
|
25
15894-78E00-000
CLIP,INJECTION PIPE
RF; 1996-10-01~1997-03-01 |
15894-78E00-000 |
— | ||
|
26
|
26
15898-78E00-000
BOLT,CLIP
RF; 1996-10-01~1997-03-01 |
15898-78E00-000 |
— | ||
|
27
|
27
12814-78E10-000
STAY,INJECTION PUMP
RF; 1996-10-01~1997-03-01 |
12814-78E10-000 |
— | ||
|
28
|
28
12818-78E00-000
ブラケット,インジェクションポンプ
RF; 1996-10-01~1997-03-01 |
12818-78E00-000 |
— | ||
|
29
|
29
M9103-10200-000
BOLT,10X20
RF; 1996-10-01~1997-03-01 |
M9103-10200-000 |
— | ||
|
30
|
30
M1550-08251-000
BOLT,8X25
RF; 1996-10-01~1997-03-01 |
M1550-08251-000 |
— | ||
|
31
|
31
12817-78E00-000
NUT,INJECTION PUMP
RF; 1996-10-01~1997-03-01 |
12817-78E00-000 |
— | ||
|
32
|
32
12813-78E10-000
ブラケット,インジェクションポンプ
RF; 1996-10-01~1997-03-01 |
12813-78E10-000 |
— | ||
|
33
|
33
M1421-08250-000
STUD BOLT
RF; 1996-10-01~1997-03-01 |
M1421-08250-000 |
— | ||
|
34
|
34
12816-78E00-000
Bolt
RF; 1996-10-01~1997-03-01 |
12816-78E00-000 |
— | ||
|
35
|
35
M1550-10250-000
BOLT,10X25
RF; 1996-10-01~1997-03-01 |
M1550-10250-000 |
— | ||
|
36
|
36
12811-78E00-000
PULLEY,INJECTION PUMP
RF; 1996-10-01~1997-03-01 |
12811-78E00-000 |
— | ||
|
37
|
37
12812-78E00-000
NUT
RF; 1996-10-01~1997-03-01 |
12812-78E00-000 |
— | ||
|
38
|
38
18552-78E00-000
コード,グロー
RF; 1996-10-01~1997-01-01 |
18552-78E00-000 |
— | ||
| replacement | |||||
|
38
|
38
18552-78E10-000
Cord,glow
RF; 1996-10-01~1997-01-01 |
18552-78E10-000 |
— | ||
|
38
|
38
18552-78E10-000
Cord,glow
RF; 1997-02-01~1997-03-01 |
18552-78E10-000 |
— | ||
|
39
|
39
18550-78E11-000 PLUG,GLOWRF; 1996-10-01~1997-03-01 |
18550-78E11-000 |
US $123.28 |
||
|
40
|
40
18554-78E00-000
NUT,FLANGE GLOW PLUG
RF; 1996-10-01~1997-03-01 |
18554-78E00-000 |
— | ||
|
41
|
41
36814-78E00-000
WIRE,CORD SHORT LEAD
RF; 1996-10-01~1997-03-01 |
36814-78E00-000 |
— | ||
