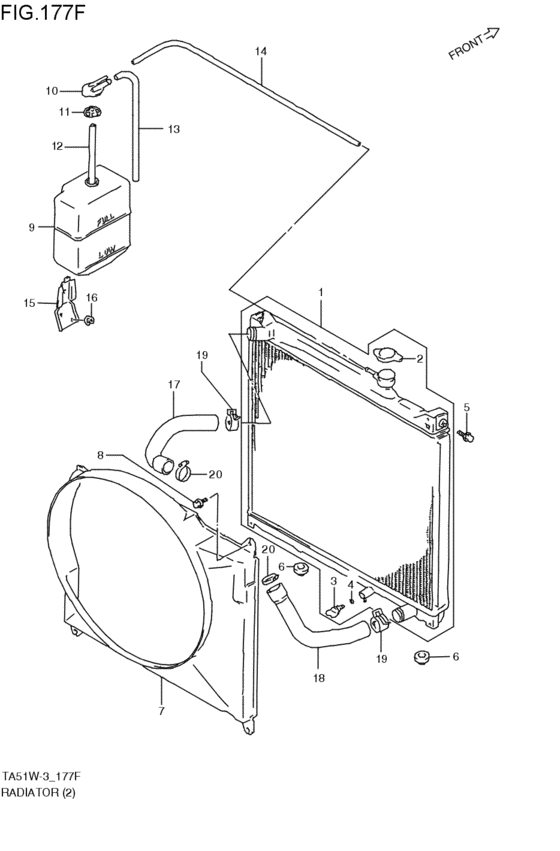

radiator (RF; 1996-10-01~1997-03-01) Diagram Suzuki ESCUDO
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- 4AT
- Number of doors
- 5DR
- grade
- STD
- air bag
- NAB
- abs
- ABS-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-78E10-000 RADIATOR ASSYRF; 1996-10-01~1997-03-01 |
17700-78E10-000 |
US $616 |
||
|
2
|
2
17920-66F01-000 CAP,RADIATOR 1.1RF; 1996-10-01~1997-03-01 |
17920-66F01-000 |
US $32.80 |
||
|
3
|
3
17751-61A00-000 PLUG,DRAINRF; 1996-10-01~1997-03-01 |
17751-61A00-000 |
US $4.32 |
||
|
4
|
4
17759-72010-000 O-RINGRF; 1996-10-01~1997-03-01 |
17759-72010-000 |
US $1.52 |
||
|
5
|
5
02162-06253-000
Bolt
RF; 1996-10-01~1997-03-01 |
02162-06253-000 |
— | ||
| replacement | |||||
|
5
|
5
02162-0625A-000 SCREWRF; 1996-10-01~1997-03-01 |
02162-0625A-000 |
from US $0.76 |
||
|
6
|
6
17812-82000-000 BUSHING,RADIATOR SUPPORTRF; 1996-10-01~1997-03-01 |
17812-82000-000 |
US $2.43 |
||
|
7
|
7
17761-78E02-000
SHROUD,FAN
RF; 1996-10-01~1997-03-01 |
17761-78E02-000 |
— | ||
|
8
|
8
01550-06123-000
Bolt
RF; 1996-10-01~1997-03-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0612B-000 BOLTBolt, clamp RF; 1996-10-01~1997-03-01 |
01550-0612B-000 |
from US $0.76 |
||
|
8
|
8
01550-0612A-000 BOLTRF; 1996-10-01~1997-03-01 |
01550-0612A-000 |
from US $0.76 |
||
|
9
|
9
17931-77E00-000 TANK,WATER RESERVERF; 1996-10-01~1997-03-01 |
17931-77E00-000 |
US $46.74 |
||
|
10
|
10
17932-60G00-000
キャップ,ウォータリザーブタンク
RF; 1996-10-01~1997-03-01 |
17932-60G00-000 |
— | ||
| replacement | |||||
|
10
|
10
17932-60G10-000 CAP,WATER RESERVE TANKRF; 1996-10-01~1997-03-01 |
17932-60G10-000 |
US $6.08 |
||
|
11
|
11
17933-60B00-000 RUBBER,WTR RSV TANK CAPRubber, tank cap RF; 1996-10-01~1997-03-01 |
17933-60B00-000 |
US $2.13 |
||
|
12
|
12
09352-70111-600 HOSE(7X11X600)L:600>190; RF; 1996-10-01~1997-03-01 |
09352-70111-600 |
US $6.84 |
||
|
13
|
13
17939-77E00-000 HOSE,RSV TANK VENT PIPERF; 1996-10-01~1997-03-01 |
17939-77E00-000 |
US $6.26 |
||
|
14
|
14
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) RF; 1996-10-01~1997-03-01 |
09352-70121-600 |
from US $5.93 |
||
|
15
|
15
17937-57B00-000
BRACKET,WATER RESERVE TANK
RF; 1996-10-01~1997-03-01 |
17937-57B00-000 |
— | ||
|
16
|
16
08316-10063-000
Nut
RF; 1996-10-01~1997-03-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-1006B-000 NUTRF; 1996-10-01~1997-03-01 |
08316-1006B-000 |
from US $0.76 |
||
|
17
|
17
17841-78E01-000 HOSE,RADIATOR INLETRF; 1996-10-01~1997-03-01 |
17841-78E01-000 |
US $50.40 |
||
|
18
|
18
17851-78E01-000 HOSE,RDTR OUTLETRF; 1996-10-01~1997-03-01 |
17851-78E01-000 |
US $63.20 |
||
|
19
|
19
09401-36403-000
クリップ
RF; 1996-10-01~1997-03-01 |
09401-36403-000 |
— | ||
| replacement | |||||
|
19
|
19
09401-35403-000 CLIPRF; 1996-10-01~1997-03-01 |
09401-35403-000 |
US $2.56 |
||
|
20
|
20
09402-50511-000 CLAMPRF; 1996-10-01~1997-03-01 |
09402-50511-000 |
from US $7.52 |
||
