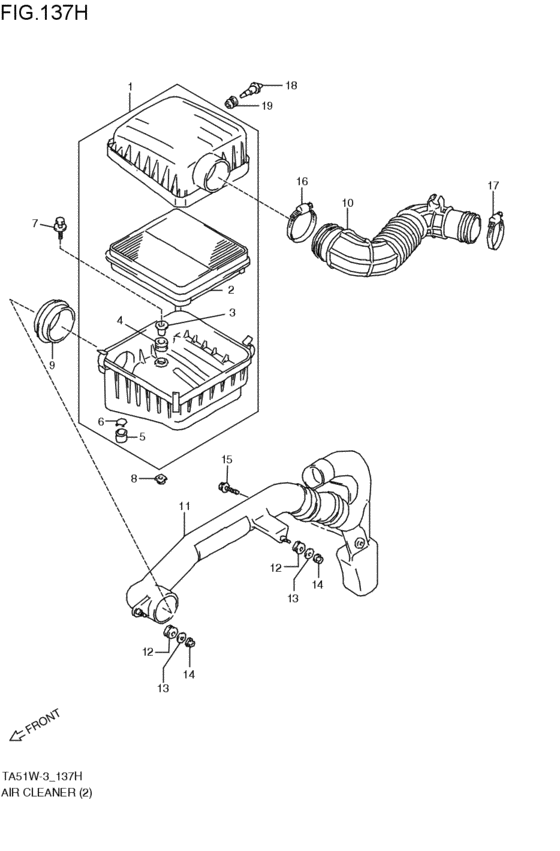

air cleaner (RF; 1996-10-01~1997-03-01) Diagram Suzuki ESCUDO
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- 4AT
- Number of doors
- 5DR
- grade
- STD
- air bag
- 2AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-78E01-000 CLEANER ASSY,AIRRF; 1996-10-01~1997-03-01 |
13700-78E01-000 |
US $283.36 |
||
|
2
|
2
13780-77E00-000 ELEMENT,AIR CLEANERRF; 1996-10-01~1997-03-01 |
13780-77E00-000 |
from US $26.15 |
||
|
3
|
3
13877-77E00-000 SPACERRF; 1996-10-01~1997-03-01 |
13877-77E00-000 |
US $5.48 |
||
|
4
|
4
13878-77E00-000
クッション,エアクリーナ
RF; 1996-10-01~1997-03-01 |
13878-77E00-000 |
— | ||
| replacement | |||||
|
4
|
4
13878-77E01-000 CUSHIONRF; 1996-10-01~1997-03-01 |
13878-77E01-000 |
US $4.86 |
||
|
5
|
5
13875-78E00-000 CAP,DRAINRF; 1996-10-01~1997-03-01 |
13875-78E00-000 |
US $2.29 |
||
|
6
|
6
13876-78E00-000 CLIPRF; 1996-10-01~1997-03-01 |
13876-78E00-000 |
US $1.52 |
||
|
7
|
7
09116-06172-000 BOLT(6X30)Bolt (6x30) RF; 1996-10-01~1997-03-01 |
09116-06172-000 |
from US $1.44 |
||
|
8
|
8
09148-06006-000 NUTNut, side RF; 1996-10-01~1997-03-01 |
09148-06006-000 |
US $0.96 |
||
|
9
|
9
13872-78E00-000
HOSE,AIR CLEANER INLET
RF; 1996-10-01~1997-03-01 |
13872-78E00-000 |
— | ||
|
10
|
10
13881-78E00-000 HOSE,AIR CLEANER OUTLETRF; 1996-10-01~1997-03-01 |
13881-78E00-000 |
US $52.62 |
||
|
11
|
11
13600-78E01-000
CASE ASSY,AIR CLNR SUCTION
RF; 1996-10-01~1997-03-01 |
13600-78E01-000 |
— | ||
|
12
|
12
13874-51E50-000 CUSHION,RESONATOR NO.2RF; 1996-10-01~1997-03-01 |
13874-51E50-000 |
US $2.10 |
||
|
13
|
13
09160-06088-000 WASHER(6.5X20X1.6)Washer, upper RF; 1996-10-01~1997-03-01 |
09160-06088-000 |
from US $0.91 |
||
|
14
|
14
08316-10063-000
Nut
RF; 1996-10-01~1997-03-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1006B-000 NUTRF; 1996-10-01~1997-03-01 |
08316-1006B-000 |
from US $0.76 |
||
|
15
|
15
01550-06303-000
Bolt (6x30)
RF; 1996-10-01~1997-03-01 |
01550-06303-000 |
— | ||
| replacement | |||||
|
15
|
15
01550-0630A-000 BOLTRF; 1996-10-01~1997-03-01 |
01550-0630A-000 |
from US $0.96 |
||
|
16
|
16
09402-82511-000 CLAMPRF; 1996-10-01~1997-03-01 |
09402-82511-000 |
US $65.90 |
||
|
17
|
17
09402-57511-000 CLAMPRF; 1996-10-01~1997-03-01 |
09402-57511-000 |
from US $6.24 |
||
|
18
|
18
13650-60G00-000
SENSOR,INLET AIR TEMP
DENSO; RF; 1996-10-01~1997-03-01 |
13650-60G00-000 |
— | ||
|
19
|
19
13655-77E00-000
GROMMET,AIR TEMP SENSOR
RF; 1996-10-01~1997-03-01 |
13655-77E00-000 |
— | ||
| replacement | |||||
|
19
|
19
13655-77E10-000 Grommet,air Temp SensorRF; 1996-10-01~1997-03-01 |
13655-77E10-000 |
from US $2.88 |
||
