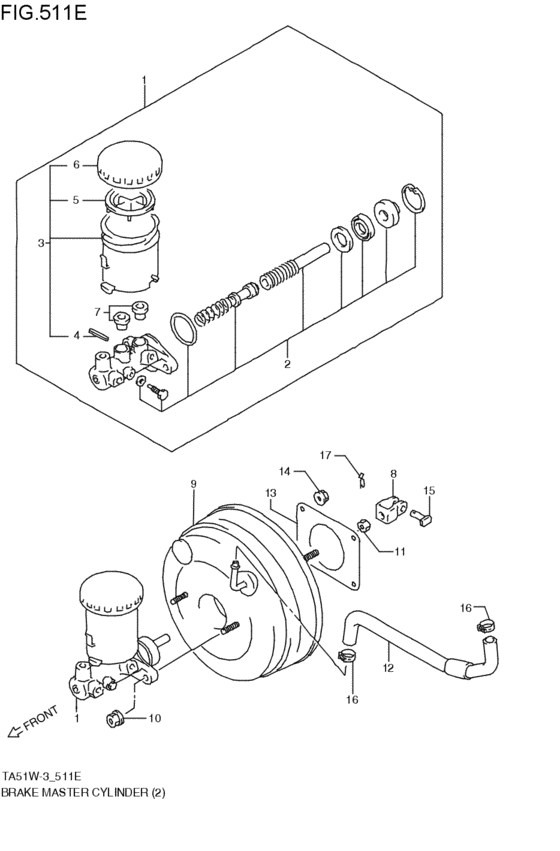

brakes master cylinder (RF; 1996-10-01~1997-03-01) Diagram Suzuki ESCUDO
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- 4AT
- Number of doors
- 5DR
- grade
- STD
- air bag
- 2AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-77E60-000
Cylinder assy,brake master
ABSシヨウ; RF:ABS; 1996-10-01~1997-03-01 |
51100-77E60-000 |
— | ||
|
2
|
2
51810-77E50-000
Repair set,brake master
ABSシヨウ; RF:ABS; 1996-10-01~1997-03-01 |
51810-77E50-000 |
— | ||
| replacement | |||||
|
2
|
2
51810-77E51-000 REPAIR SET,BRAKE MASTERABSシヨウ; RF:ABS; 1996-10-01~1997-03-01 |
51810-77E51-000 |
US $95.68 |
||
|
3
|
3
51200-77E00-000
リザーバアッシ,マスタシリンダ
RF; 1996-10-01~1997-03-01 |
51200-77E00-000 |
— | ||
| replacement | |||||
|
3
|
3
51200-77E01-000 RESERVOIR ASSY,MASTER CYLINDERRF; 1996-10-01~1997-03-01 |
51200-77E01-000 |
US $156.80 |
||
|
4
|
4
09205-05003-000 PIN,SPRING(5X45)RF; 1996-10-01~1997-03-01 |
09205-05003-000 |
US $1.76 |
||
|
5
|
5
51234-60A20-000 STRAINER,MASTER CYLINDERRF; 1996-10-01~1997-03-01 |
51234-60A20-000 |
US $7.68 |
||
|
6
|
6
51220-60A20-000 CAP,RESERVOIRRF; 1996-10-01~1997-03-01 |
51220-60A20-000 |
US $17.60 |
||
|
7
|
7
51197-85520-000 GROMMET,RESERVOIR CONNECTORRF; 1996-10-01~1997-03-01 |
51197-85520-000 |
US $2.72 |
||
|
8
|
8
51182-60A60-000
クレビス,シリンダプッシュロッド
RF; 1996-10-01~1997-03-01 |
51182-60A60-000 |
— | ||
| replacement | |||||
|
8
|
8
51182-77E00-000 CLEVIS,CYLINDER PUSH RODRF; 1996-10-01~1997-03-01 |
51182-77E00-000 |
US $9.12 |
||
|
9
|
9
51300-77E30-000
BOOSTER ASSY,BRAKE MASTER
RF; 1996-10-01~1997-03-01 |
51300-77E30-000 |
— | ||
|
10
|
10
09159-08075-000 NUTRF; 1996-10-01~1997-03-01 |
09159-08075-000 |
US $0.91 |
||
|
11
|
11
09140-10019-000 NUTRF; 1996-10-01~1997-03-01 |
09140-10019-000 |
US $9.20 |
||
|
12
|
12
51010-77E10-000 HOSE,BRAKE VACUUMRF; 1996-10-01~1997-03-01 |
51010-77E10-000 |
US $51.15 |
||
|
13
|
13
51132-82003-000 PACKING,BRAKE MASTER CYLINDERRF; 1996-10-01~1997-03-01 |
51132-82003-000 |
US $1.60 |
||
|
14
|
14
09159-08069-000
Nut
RF; 1996-10-01~1997-03-01 |
09159-08069-000 |
— | ||
| replacement | |||||
|
14
|
14
09159-08135-000 NUTRF; 1996-10-01~1997-03-01 |
09159-08135-000 |
from US $0.77 |
||
|
15
|
15
09200-10021-000 PINRF; 1996-10-01~1997-03-01 |
09200-10021-000 |
US $1.28 |
||
|
16
|
16
09401-15404-000 CLIPRF; 1996-10-01~1997-03-01 |
09401-15404-000 |
from US $1.06 |
||
|
17
|
17
09385-10006-000 PIN,SNAPPin RF; 1996-10-01~1997-03-01 |
09385-10006-000 |
from US $1.60 |
||
