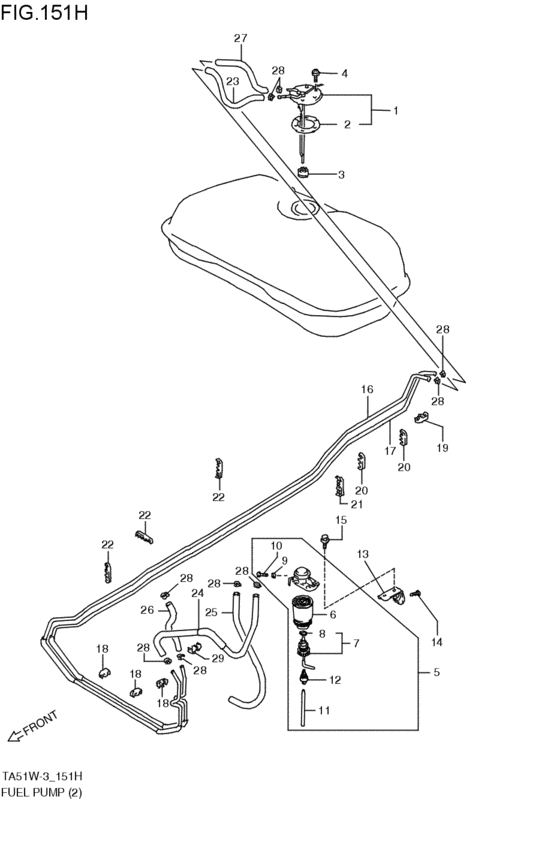

Fuel Pump (RF; 1996-10-01~1997-03-01) Diagram Suzuki ESCUDO
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- 4AT
- Number of doors
- 5DR
- grade
- STD
- air bag
- 2AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15190-78E00-000
PIPE,FUEL TANK OUTLET
RF; 1996-10-01~1997-03-01 |
15190-78E00-000 |
— | ||
|
2
|
2
15111-57F00-000 GASKET,FUEL PUMPRF; 1996-10-01~1997-03-01 |
15111-57F00-000 |
US $23 |
||
|
3
|
3
15191-78E00-000
FILTER,FUEL IN TANK
RF; 1996-10-01~1997-03-01 |
15191-78E00-000 |
— | ||
|
4
|
4
09136-05045-000 SCREW(5X10)RF; 1996-10-01~1997-03-01 |
09136-05045-000 |
US $0.96 |
||
|
5
|
5
15410-78E02-000
フィルタ,フューエル
RF; 1996-10-01~1997-03-01 |
15410-78E02-000 |
— | ||
| replacement | |||||
|
5
|
5
15410-78E03-000
Filter,fuel
RF; 1996-10-01~1997-03-01 |
15410-78E03-000 |
— | ||
|
6
|
6
15411-78E10-000 FILTER,CARTRIDGERF; 1996-10-01~1997-03-01 |
15411-78E10-000 |
US $107.82 |
||
|
7
|
7
15412-78E10-000 SENSOR,FUEL FILTERRF; 1996-10-01~1997-03-01 |
15412-78E10-000 |
US $101.94 |
||
|
8
|
8
15413-78E10-000
O-RING
RF; 1996-10-01~1997-03-01 |
15413-78E10-000 |
— | ||
|
9
|
9
15414-78E00-000
Gasket
RF; 1996-10-01~1997-03-01 |
15414-78E00-000 |
— | ||
|
10
|
10
15415-78E00-000
プラグ,エアベントフィルタ
RF; 1996-10-01~1997-03-01 |
15415-78E00-000 |
— | ||
|
11
|
11
15416-78E10-000
ホース
RF; 1996-10-01~1997-03-01 |
15416-78E10-000 |
— | ||
| replacement | |||||
|
11
|
11
15416-78E11-000 HOSERF; 1996-10-01~1997-03-01 |
15416-78E11-000 |
US $5.63 |
||
|
12
|
12
15417-78E10-000
PLUG
RF; 1996-10-01~1997-03-01 |
15417-78E10-000 |
— | ||
|
13
|
13
15421-78E00-000
ブラケット,フューエルフィルタ
RF; 1996-10-01~1997-03-01 |
15421-78E00-000 |
— | ||
|
14
|
14
01550-08203-000
Bolt
RF; 1996-10-01~1997-03-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0820B-000 BoltRF; 1996-10-01~1997-03-01 |
01550-0820B-000 |
from US $0.91 |
||
|
14
|
14
01550-0820A-000 BOLTBolt, funnel bracket RF; 1996-10-01~1997-03-01 |
01550-0820A-000 |
from US $0.96 |
||
|
15
|
15
01550-08253-000
Bolt, rear
RF; 1996-10-01~1997-03-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0825B-000 BOLTRF; 1996-10-01~1997-03-01 |
01550-0825B-000 |
from US $0.96 |
||
|
15
|
15
01550-0825A-000 BOLTRF; 1996-10-01~1997-03-01 |
01550-0825A-000 |
from US $1.06 |
||
|
16
|
16
15821-78E01-000
パイプ,フューエルメイン
RF; 1996-10-01~1997-01-01 |
15821-78E01-000 |
— | ||
| replacements | |||||
|
16
|
16
15800-52810-000
HOSE SET,FUEL FILTER INLET
RF; 1996-10-01~1997-01-01 |
15800-52810-000 |
— | ||
|
16
|
16
15821-78E03-000
Pipe,fuel main
RF; 1996-10-01~1997-01-01 |
15821-78E03-000 |
— | ||
|
16
|
16
15815-65D00-000 HOSE,FUEL FILTER INLETRF; 1996-10-01~1997-01-01 |
15815-65D00-000 |
US $58.14 |
||
|
16
|
16
15821-78E03-000
Pipe,fuel main
RF; 1997-02-01~1997-03-01 |
15821-78E03-000 |
— | ||
|
17
|
17
15861-78E01-000
PIPE,FUEL RETURN
RF; 1996-10-01~1997-03-01 |
15861-78E01-000 |
— | ||
|
18
|
18
15892-78E10-000 CLAMP,FUEL PIPERF; 1996-10-01~1997-03-01 |
15892-78E10-000 |
US $2.47 |
||
|
19
|
19
15893-56B00-000 CLAMP,FUEL PIPERF; 1996-10-01~1997-03-01 |
15893-56B00-000 |
US $2.43 |
||
|
20
|
20
15893-60A11-000 CLAMP,FUEL PIPERF; 1996-10-01~1997-03-01 |
15893-60A11-000 |
US $2.24 |
||
|
21
|
21
15895-56B11-000 CLAMP,FUEL PIPERF; 1996-10-01~1997-03-01 |
15895-56B11-000 |
US $2.29 |
||
|
22
|
22
15895-60A11-000 CLAMP,FUEL PIPERF; 1996-10-01~1997-03-01 |
15895-60A11-000 |
US $2.56 |
||
|
23
|
23
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600>440; RF; 1996-10-01~1997-03-01 |
09356-75147-600 |
US $51.68 |
||
|
24
|
24
15830-78E00-000
ホース,フューエル(フィルタインレット)L:460
パイプツ-フィルタ; RF; 1996-10-01~1997-03-01 |
15830-78E00-000 |
— | ||
| replacements | |||||
|
24
|
24
15800-52810-000
HOSE SET,FUEL FILTER INLET
パイプツ-フィルタ; RF; 1996-10-01~1997-03-01 |
15800-52810-000 |
— | ||
|
24
|
24
15815-65D00-000 HOSE,FUEL FILTER INLETパイプツ-フィルタ; RF; 1996-10-01~1997-03-01 |
15815-65D00-000 |
US $58.14 |
||
|
25
|
25
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600>260; RF; 1996-10-01~1997-03-01 |
09356-75147-600 |
US $51.68 |
||
|
26
|
26
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600>220; RF; 1996-10-01~1997-03-01 |
09356-55117-600 |
US $69.60 |
||
|
27
|
27
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600>410; RF; 1996-10-01~1997-03-01 |
09356-55117-600 |
US $69.60 |
||
|
28
|
28
09402-15511-000
New Genuine Part
RF; 1996-10-01~1997-03-01 |
09402-15511-000 |
— | ||
| replacement | |||||
|
28
|
28
09402-17511-000 CLAMPRF; 1996-10-01~1997-03-01 |
09402-17511-000 |
US $52.60 |
||
|
29
|
29
09408-00121-000 CLAMPRF; 1996-10-01~1997-03-01 |
09408-00121-000 |
US $1.52 |
||
