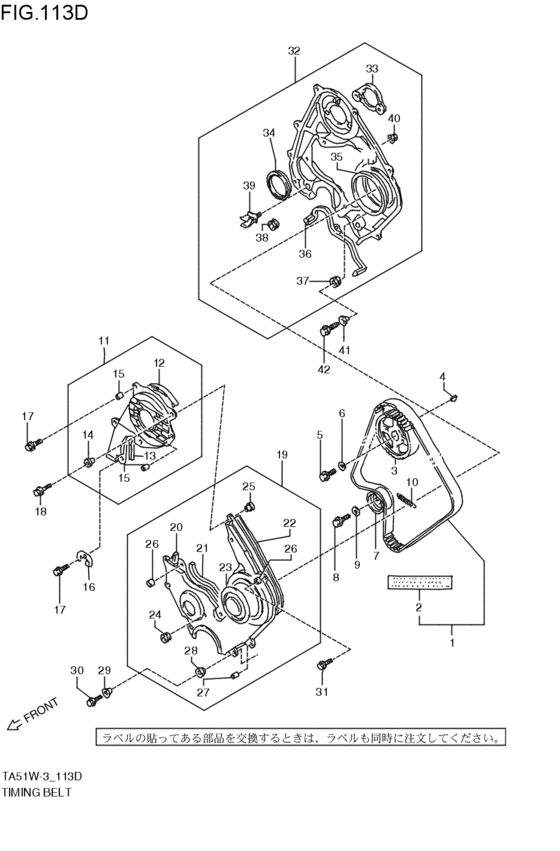

timing belt (RF; 1996-10-01~1997-03-01) Diagram Suzuki ESCUDO
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- 4AT
- Number of doors
- 5DR
- grade
- STD
- air bag
- 2AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12761-78E01-000 BELT,TIMINGRF; 1996-10-01~1997-03-01 |
12761-78E01-000 |
US $144.62 |
||
|
2
|
2
11499-78E00-000
LABEL,TIMING BELT
RF; 1996-10-01~1997-03-01 |
11499-78E00-000 |
— | ||
|
3
|
3
12741-78E00-000 PULLEY,CAMSHAFT TIMING BELTRF; 1996-10-01~1997-03-01 |
12741-78E00-000 |
US $125.12 |
||
|
4
|
4
12719-78E00-000 KEYRF; 1996-10-01~1997-03-01 |
12719-78E00-000 |
US $3.02 |
||
|
5
|
5
12746-78E00-000
BOLT,LOCK
RF; 1996-10-01~1997-03-01 |
12746-78E00-000 |
— | ||
|
6
|
6
12745-78E00-000
WASHER
RF; 1996-10-01~1997-03-01 |
12745-78E00-000 |
— | ||
|
7
|
7
12810-78E00-000
テンショナ,タイミングベルト
RF; 1996-10-01~1997-03-01 |
12810-78E00-000 |
— | ||
| replacement | |||||
|
7
|
7
12810-78E01-000 TENSIONER,TIMING BELTRF; 1996-10-01~1997-03-01 |
12810-78E01-000 |
US $122.91 |
||
|
8
|
8
M1550-10400-000 BOLT,10X40RF; 1996-10-01~1997-03-01 |
M1550-10400-000 |
US $3.53 |
||
|
9
|
9
M8322-21102-000
WASHER
RF; 1996-10-01~1997-03-01 |
M8322-21102-000 |
— | ||
|
10
|
10
12821-78E00-000
SPRING,TENSIONER
RF; 1996-10-01~1997-03-01 |
12821-78E00-000 |
— | ||
|
11
|
11
11390-78E01-000
カバー,タイミングベルト,ライト
RF; 1996-10-01~1997-03-01 |
11390-78E01-000 |
— | ||
| replacement | |||||
|
11
|
11
11390-78E02-000
COVER,TIMING BELT,R
RF; 1996-10-01~1997-03-01 |
11390-78E02-000 |
— | ||
|
12
|
12
11371-78E00-000 RUBBER,SEALRF; 1996-10-01~1997-03-01 |
11371-78E00-000 |
US $18.07 |
||
|
13
|
13
11372-78E00-000 RUBBER,SEALRF; 1996-10-01~1997-03-01 |
11372-78E00-000 |
US $11.96 |
||
|
14
|
14
11391-78E00-000
INSERT,TIMING BELT COVER
RF; 1996-10-01~1997-03-01 |
11391-78E00-000 |
— | ||
|
15
|
15
11392-78E00-000
インサート
RF; 1996-10-01~1997-03-01 |
11392-78E00-000 |
— | ||
|
16
|
16
11393-78E00-000
BRACKET,WATER BYPASS
RF; 1996-10-01~1997-03-01 |
11393-78E00-000 |
— | ||
|
17
|
17
M9103-06300-000
BOLT,6X30
RF; 1996-10-01~1997-03-01 |
M9103-06300-000 |
— | ||
|
18
|
18
M9103-06450-000
BOLT,6X45
RF; 1996-10-01~1997-03-01 |
M9103-06450-000 |
— | ||
|
19
|
19
11380-78E00-000 COVER,TIMING BELT,LRF; 1996-10-01~1997-03-01 |
11380-78E00-000 |
US $139.84 |
||
|
20
|
20
11376-78E00-000 RUBBER,SEALRF; 1996-10-01~1997-03-01 |
11376-78E00-000 |
US $17.41 |
||
|
21
|
21
11377-78E00-000 SEAL,RUBBERRF; 1996-10-01~1997-03-01 |
11377-78E00-000 |
US $15.71 |
||
|
22
|
22
11373-78E00-000 RUBBER,SEALRF; 1996-10-01~1997-03-01 |
11373-78E00-000 |
US $17.41 |
||
|
23
|
23
11383-78E00-000
CAP,TIMING BELT COVER
RF; 1996-10-01~1997-03-01 |
11383-78E00-000 |
— | ||
|
24
|
24
11374-78E00-000 SEAL,INDICATOR PINRF; 1996-10-01~1997-03-01 |
11374-78E00-000 |
US $4.16 |
||
|
25
|
25
11381-78E00-000
INSERT,TIMING BELT COVER
RF; 1996-10-01~1997-03-01 |
11381-78E00-000 |
— | ||
|
26
|
26
11392-78E00-000
インサート
RF; 1996-10-01~1997-03-01 |
11392-78E00-000 |
— | ||
|
27
|
27
11382-78E00-000
INSERT
RF; 1996-10-01~1997-03-01 |
11382-78E00-000 |
— | ||
|
28
|
28
11375-78E00-000
RUBBER,SEAL
RF; 1996-10-01~1997-03-01 |
11375-78E00-000 |
— | ||
|
29
|
29
11384-78E00-000
SPACER
RF; 1996-10-01~1997-03-01 |
11384-78E00-000 |
— | ||
|
30
|
30
M9103-06200-000
BOLT,6X20
RF; 1996-10-01~1997-03-01 |
M9103-06200-000 |
— | ||
|
31
|
31
M9103-06300-000
BOLT,6X30
RF; 1996-10-01~1997-03-01 |
M9103-06300-000 |
— | ||
|
32
|
32
11360-78E00-000
プレート,シール
RF; 1996-10-01~1997-03-01 |
11360-78E00-000 |
— | ||
| replacement | |||||
|
32
|
32
11360-78E01-000
Plate,seal
RF; 1996-10-01~1997-03-01 |
11360-78E01-000 |
— | ||
|
33
|
33
11363-78E00-000 RUBBER,SEALRF; 1996-10-01~1997-03-01 |
11363-78E00-000 |
US $11.59 |
||
|
34
|
34
11364-78E00-000
RUBBER,SEAL
RF; 1996-10-01~1997-03-01 |
11364-78E00-000 |
— | ||
|
35
|
35
11362-78E00-000
RUBBER,SEAL
RF; 1996-10-01~1997-03-01 |
11362-78E00-000 |
— | ||
|
36
|
36
11366-78E00-000 RUBBER,SEALRF; 1996-10-01~1997-03-01 |
11366-78E00-000 |
US $13.65 |
||
|
37
|
37
11361-78E00-000
RUBBER,SEAL
RF; 1996-10-01~1997-03-01 |
11361-78E00-000 |
— | ||
|
38
|
38
11365-78E00-000 RUBBER,SEALRF; 1996-10-01~1997-03-01 |
11365-78E00-000 |
US $3.02 |
||
|
39
|
39
11367-78E00-000
CLIP,TENSIONER SPRING
RF; 1996-10-01~1997-03-01 |
11367-78E00-000 |
— | ||
|
40
|
40
08316-10103-000
Nut
RF; 1996-10-01~1997-03-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
40
|
40
08316-1010B-000 NUTRF; 1996-10-01~1997-03-01 |
08316-1010B-000 |
from US $0.80 |
||
|
41
|
41
11384-78E00-000
SPACER
RF; 1996-10-01~1997-03-01 |
11384-78E00-000 |
— | ||
|
42
|
42
M9103-06161-000
BOLT,6X16
RF; 1996-10-01~1997-03-01 |
M9103-06161-000 |
— | ||
