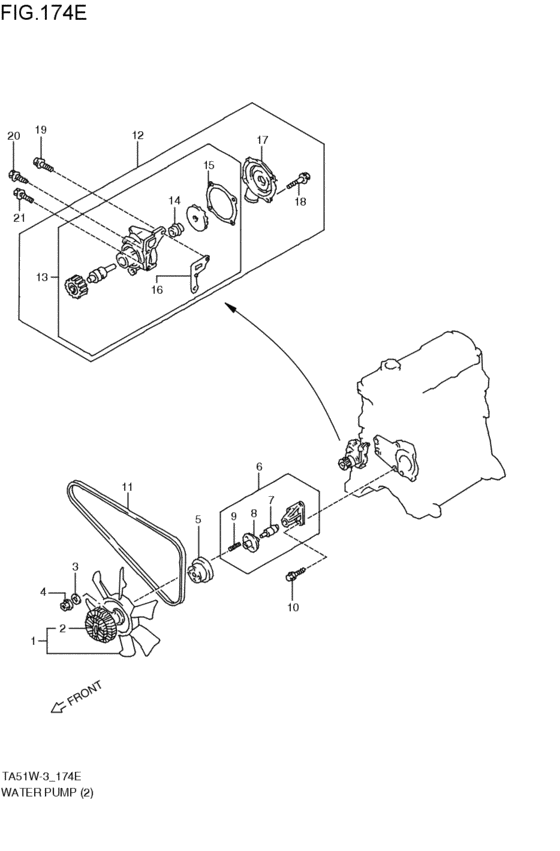

water pump (RF; 1996-10-01~1997-03-01) Diagram Suzuki ESCUDO
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- 4AT
- Number of doors
- 5DR
- grade
- STD
- air bag
- 2AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17120-78E00-000 FAN,DRIVE COOLINGRF; 1996-10-01~1997-03-01 |
17120-78E00-000 |
US $668.80 |
||
|
2
|
2
17121-78E00-000 DRIVE,COOLING FANRF; 1996-10-01~1997-03-01 |
17121-78E00-000 |
US $422.40 |
||
|
3
|
3
09160-10075-000
Washer
RF; 1996-10-01~1997-03-01 |
09160-10075-000 |
— | ||
| replacement | |||||
|
3
|
3
09160-10125-000 WASHER(10.5X22X3.2)RF; 1996-10-01~1997-03-01 |
09160-10125-000 |
US $14.40 |
||
|
4
|
4
08316-10083-000
Nut
RF; 1996-10-01~1997-03-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1008B-000 NUTRF; 1996-10-01~1997-03-01 |
08316-1008B-000 |
from US $0.76 |
||
|
5
|
5
17141-78E00-000
PULLEY,FAN
RF; 1996-10-01~1997-03-01 |
17141-78E00-000 |
— | ||
|
6
|
6
17130-78E00-000
BRACKET,FAN
RF; 1996-10-01~1997-03-01 |
17130-78E00-000 |
— | ||
|
7
|
7
17132-78E00-000
SHAFT,BEARING
RF; 1996-10-01~1997-03-01 |
17132-78E00-000 |
— | ||
|
8
|
8
17131-78E01-000
HUB,WATER PUMP PULLEY
RF; 1996-10-01~1997-03-01 |
17131-78E01-000 |
— | ||
|
9
|
9
17136-78E00-000
スタッドボルト
RF; 1996-10-01~1997-03-01 |
17136-78E00-000 |
— | ||
| replacement | |||||
|
9
|
9
17136-78E01-000
Stud,bolt
RF; 1996-10-01~1997-03-01 |
17136-78E01-000 |
— | ||
|
10
|
10
17135-78E00-000
Bolt
RF; 1996-10-01~1997-03-01 |
17135-78E00-000 |
— | ||
|
11
|
11
17521-78E00-000
V belt(l:1155)
RF; 1996-10-01~1997-03-01 |
17521-78E00-000 |
— | ||
| replacement | |||||
|
11
|
11
17521-78E01-000
V-BELT,L:1155
RF; 1996-10-01~1997-03-01 |
17521-78E01-000 |
— | ||
|
12
|
12
17400-78E00-000
ポンプセット,ウォータ
RF; 1996-10-01~1997-03-01 |
17400-78E00-000 |
— | ||
| replacements | |||||
|
12
|
12
17400-78E01-000 PUMP SET,WATERRF; 1996-10-01~1997-03-01 |
17400-78E01-000 |
US $342.24 |
||
|
12
|
12
17432-78E01-000 GASKET,WATER PUMP HOUSINGRF; 1996-10-01~1997-03-01 |
17432-78E01-000 |
US $5.63 |
||
|
13
|
13
17410-78E01-000
ハウジングセット,ベアリング
RF; 1996-10-01~1997-03-01 |
17410-78E01-000 |
— | ||
| replacements | |||||
|
13
|
13
17410-78E02-000 HOUSING,BEARINGRF; 1996-10-01~1997-03-01 |
17410-78E02-000 |
US $281.52 |
||
|
13
|
13
17431-78E00-000 GASKET,WATER PUMP COVERRF; 1996-10-01~1997-03-01 |
17431-78E00-000 |
US $7.99 |
||
|
13
|
13
17432-78E01-000 GASKET,WATER PUMP HOUSINGRF; 1996-10-01~1997-03-01 |
17432-78E01-000 |
US $5.63 |
||
|
14
|
14
17420-78E00-000
Seal,water
RF; 1996-10-01~1997-03-01 |
17420-78E00-000 |
— | ||
|
15
|
15
17431-78E00-000 GASKET,WATER PUMP COVERRF; 1996-10-01~1997-03-01 |
17431-78E00-000 |
US $7.99 |
||
|
16
|
16
17432-78E00-000
ガスケット,ウォータポンプハウジング
RF; 1996-10-01~1997-03-01 |
17432-78E00-000 |
— | ||
| replacement | |||||
|
16
|
16
17432-78E01-000 GASKET,WATER PUMP HOUSINGRF; 1996-10-01~1997-03-01 |
17432-78E01-000 |
US $5.63 |
||
|
17
|
17
17413-78E00-000
COVER,WATER PUMP
RF; 1996-10-01~1997-03-01 |
17413-78E00-000 |
— | ||
|
18
|
18
01550-08203-000
Bolt
RF; 1996-10-01~1997-03-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0820B-000 BoltRF; 1996-10-01~1997-03-01 |
01550-0820B-000 |
from US $0.91 |
||
|
18
|
18
01550-0820A-000 BOLTBolt, funnel bracket RF; 1996-10-01~1997-03-01 |
01550-0820A-000 |
from US $0.96 |
||
|
19
|
19
M1550-10250-000
BOLT,10X25
RF; 1996-10-01~1997-03-01 |
M1550-10250-000 |
— | ||
|
20
|
20
M1550-10900-000
BOLT,10X90
RF; 1996-10-01~1997-03-01 |
M1550-10900-000 |
— | ||
|
21
|
21
M9103-10105-000
BOLT,10X105
RF; 1996-10-01~1997-03-01 |
M9103-10105-000 |
— | ||
