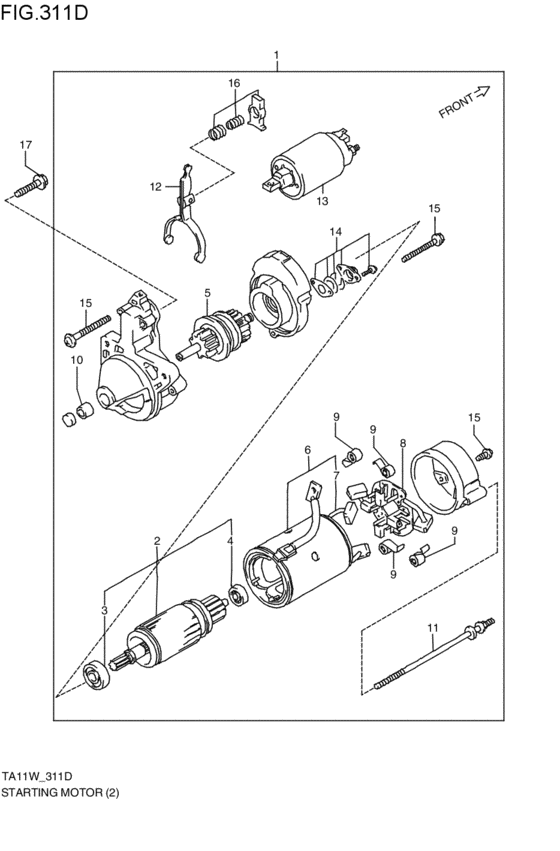

starting motor (ディーゼルターボ; RF; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1994 - 1996
- Sales region
- Japan
- Engine
- RF
- transmission
- 4AT
- Number of doors
- 4DR
- grade
- X
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-77E90-000
モータアッシ,スターティング
RF; 1994-11-01~ |
31100-77E90-000 |
— | ||
| replacement | |||||
|
1
|
1
31100-77E91-000
MOTOR ASSY,STARTING
RF; 1994-11-01~ |
31100-77E91-000 |
— | ||
|
2
|
2
31311-77E90-000
ARMATURE
RF; 1994-11-01~ |
31311-77E90-000 |
— | ||
|
3
|
3
31312-77E90-000
BEARING,ARMATURE
RF; 1994-11-01~ |
31312-77E90-000 |
— | ||
|
4
|
4
31313-77E90-000
BEARING,ARMATURE
RF; 1994-11-01~ |
31313-77E90-000 |
— | ||
|
5
|
5
31337-77E90-000
CLUTCH ASSY
RF; 1994-11-01~ |
31337-77E90-000 |
— | ||
|
6
|
6
31110-77E90-000
Yoke assy
RF; 1994-11-01~ |
31110-77E90-000 |
— | ||
|
7
|
7
31131-77E90-000 BRUSHRF; 1994-11-01~ |
31131-77E90-000 |
US $17.41 |
||
|
8
|
8
31173-77E90-000
HOLDER,BRUSH
RF; 1994-11-01~ |
31173-77E90-000 |
— | ||
|
9
|
9
31135-77E90-000
SPRING,BRUSH
RF; 1994-11-01~ |
31135-77E90-000 |
— | ||
|
10
|
10
31152-77E90-000
BUSH,FRONT
RF; 1994-11-01~ |
31152-77E90-000 |
— | ||
|
11
|
11
31261-77E90-000
Bolt
RF; 1994-11-01~ |
31261-77E90-000 |
— | ||
|
12
|
12
31191-77E90-000
LEVER,PINION DRIVE
RF; 1994-11-01~ |
31191-77E90-000 |
— | ||
|
13
|
13
31220-77E90-000
Switch assy
RF; 1994-11-01~ |
31220-77E90-000 |
— | ||
|
14
|
14
31339-77E90-000
キャップセット
RF; 1994-11-01~ |
31339-77E90-000 |
— | ||
|
15
|
15
31262-77E90-000
SCREW SET
RF; 1994-11-01~ |
31262-77E90-000 |
— | ||
|
16
|
16
31195-77E90-000
SPRING SET,LEVER
RF; 1994-11-01~ |
31195-77E90-000 |
— | ||
|
17
|
17
31109-77E90-000
Bolt,starting motor
RF; 1994-11-01~ |
31109-77E90-000 |
— | ||
